Breakout Tricore Cable GODIAG Full Protocol OBD2 Jumper Cable for ECU IMMO Airbag ABS Cluster Bench Work with Xhorse Autel Launch OBDSTAR

Breakout Tricore Cable GODIAG Full Protocol OBD2 Jumper Cable for ECU IMMO Airbag ABS Cluster Bench Work with Xhorse Autel Launch OBDSTAR

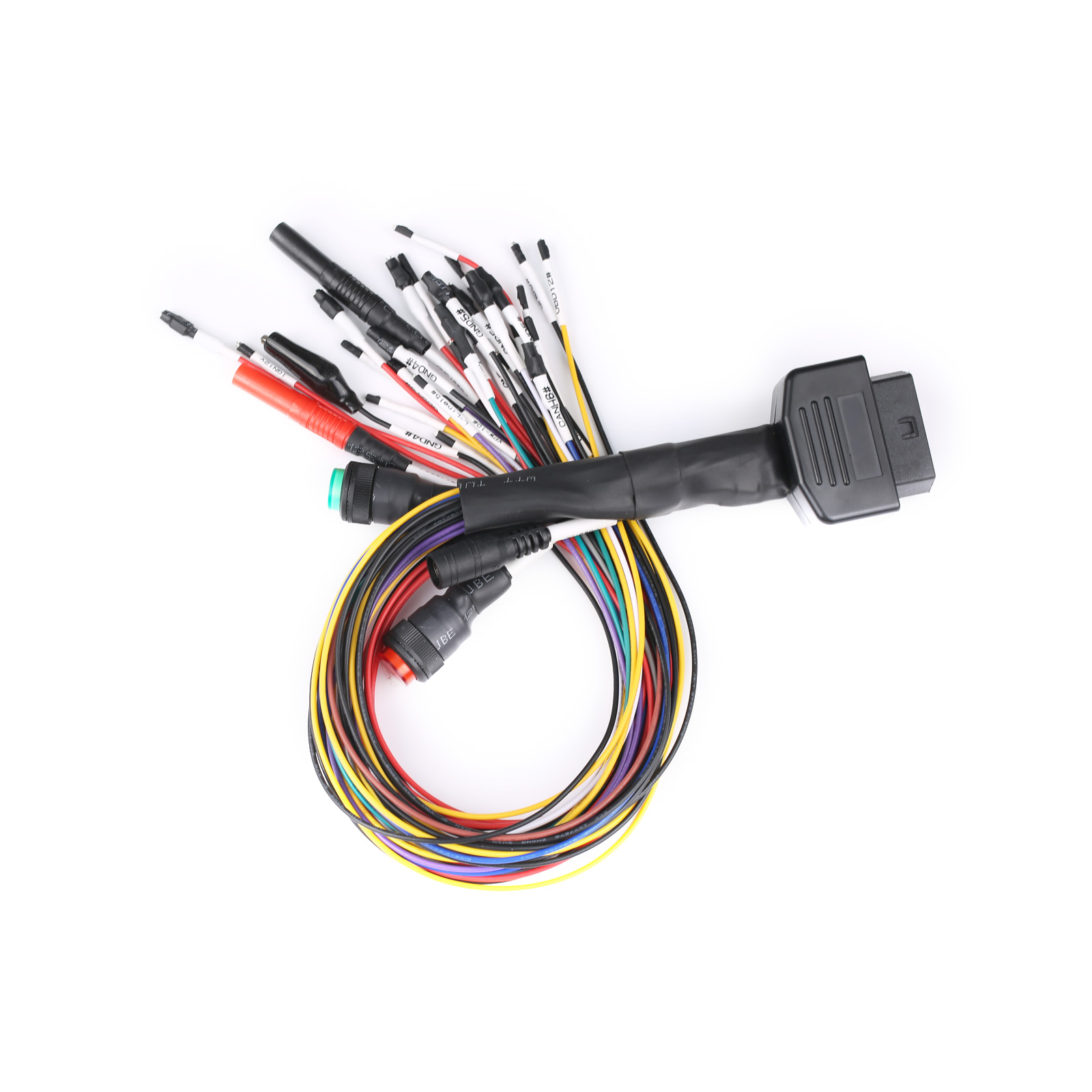

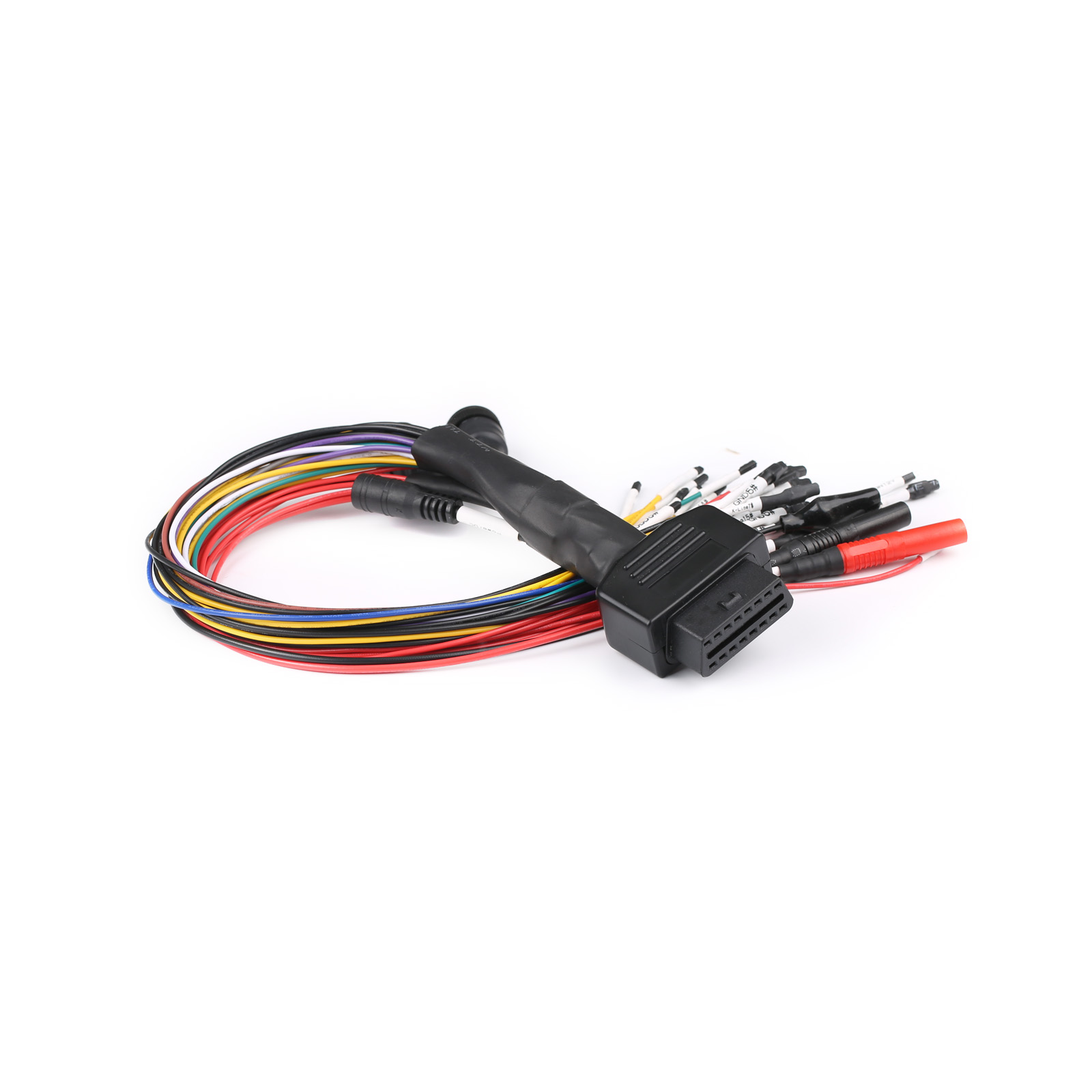

Full protocol OBD2 jumper Breakout Tricore Cable is used to connect ECU, Immobilizer, ABS, Airbag, Instrument cluster via OBD or bench easily.

The jumper is compatible with lots of OBD2 devices, ECU programmers, key programmers, airbag reset tools and mileage programmers. It can work with Key Tool Plus, Autel IM608 II, Launch Tablet Diagnostic, CGDI, OBDSTAR, KESS V2, etc.

GODIAG Full Protocol OBD2 Jumper is used to connect ECU for ECU programming via OBD2 way such as MMPS, FGTECH, KESSV2, BYSHUT, DISPROG etc.

GODIAG Full Protocol OBD2 Jumper Adapter is a versatile tool designed to bridge various automotive control modules, including ECU, Immobilizer, ABS, Airbag, and Instrument cluster, facilitating diagnostics and programming tasks.

OBD2 Jumper Functions:

1. Supports DC power supply.

2. Supports safety protection banana head super programming dedicated connection port power supply.

3. Independent GND4, GND5 [meet the needs of special ECU programming].

4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.

5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].

> Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.

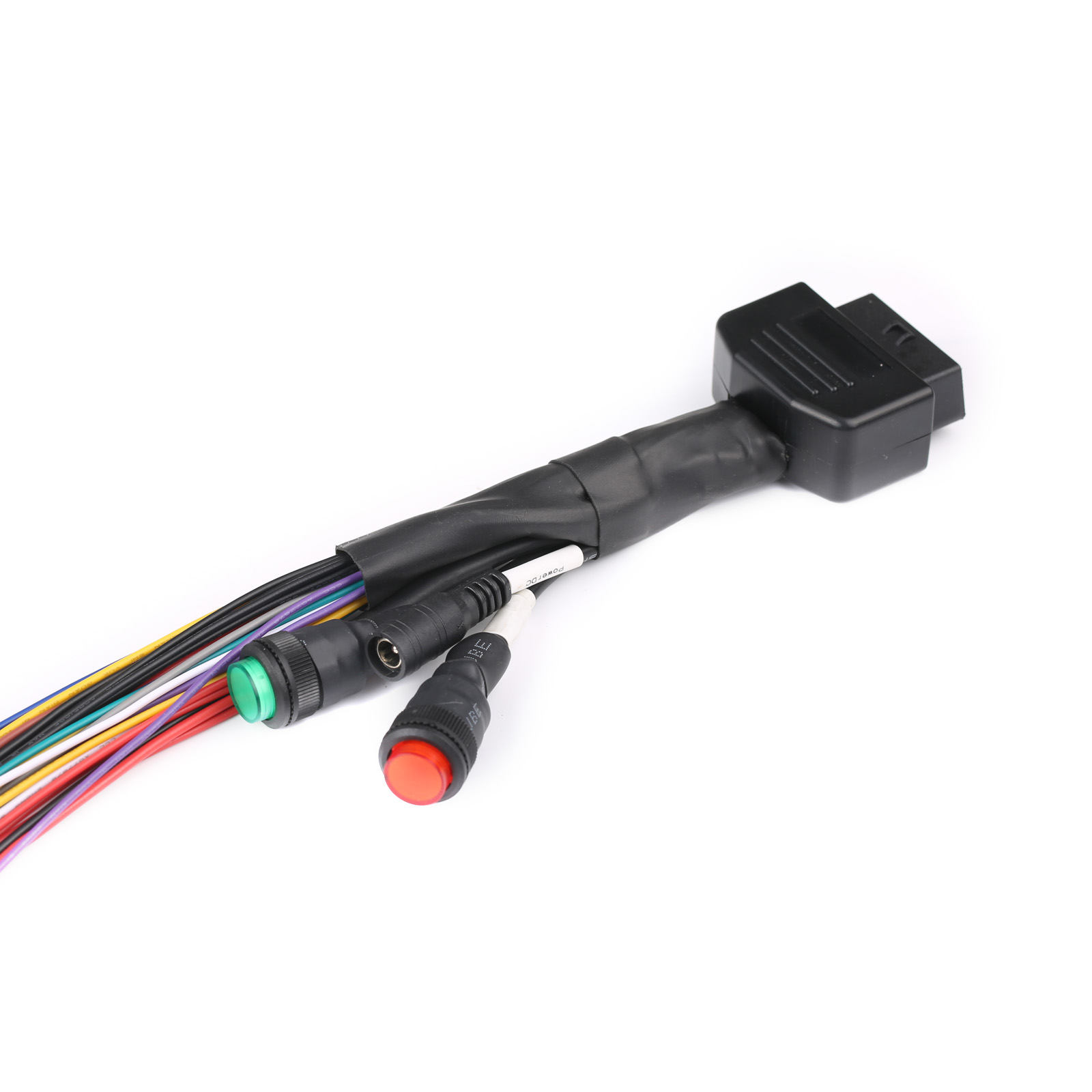

6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].

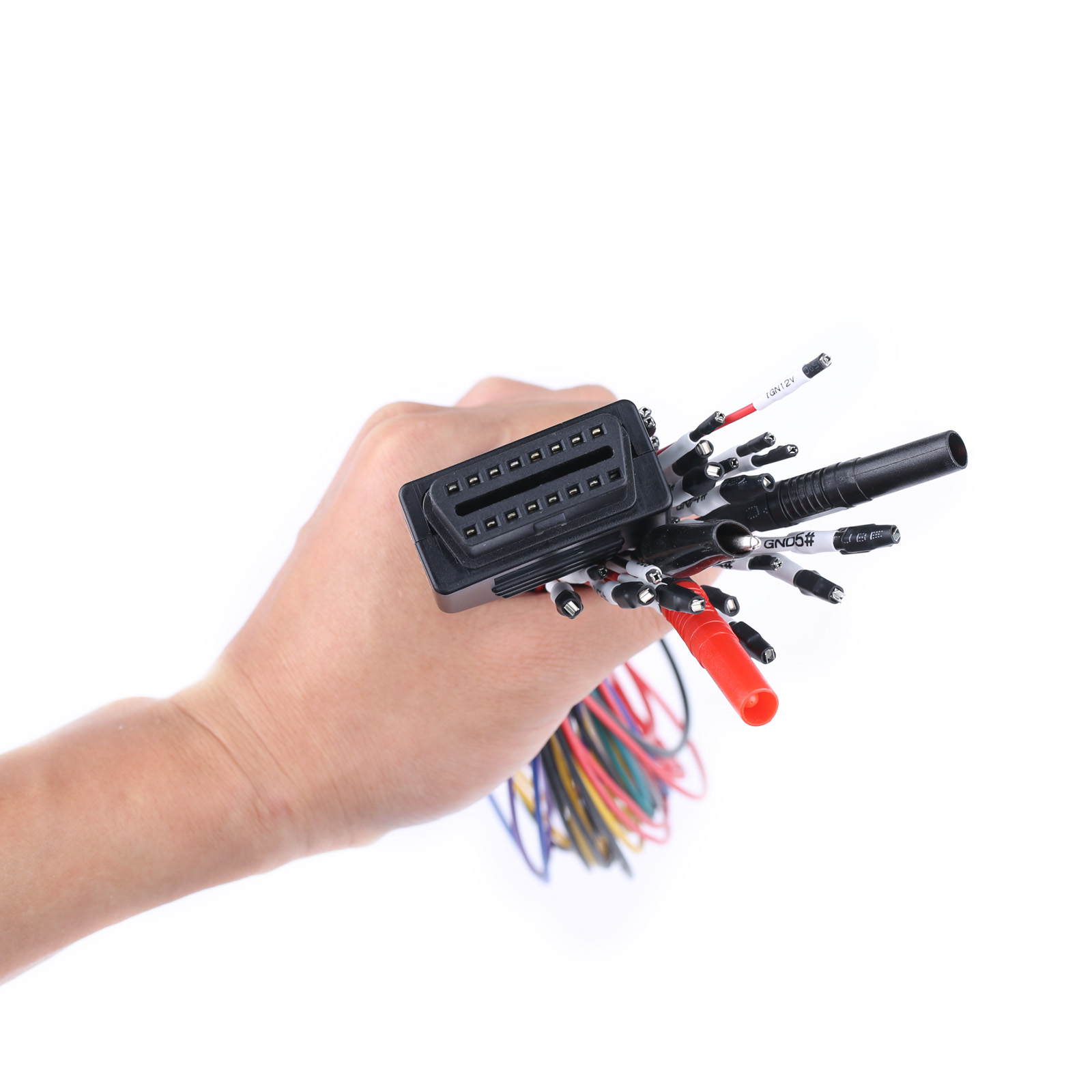

7. Support standard OBD2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.

8. Equipped with CAN protocol communication resistance.

Supported Models:

BMW 20, BENZ38, PSA-, DAIHATSU-4, FIAT-3, GAZ NISSAN-14, SUZUKI-3, AUDI 4, BENZ 1, CHRYSLER 6, DAEWOO 12, FORD6+1, GM12, HONDA3, KIA20, MAZDA17, MITSUBISHI 12, SSANGYONG 20, SUBARU 9, TOYOTA 17, TOYOTA 22, BENZ 8, BENZ OD1 16.

Connection diagram of the dedicated programming power connector.

FGTECH programming connection diagram.

MPPS ECU connection diagram.

KESSV2 ECU connection diagram.

Connect with Airbag Reset Tools (OBDSTAR P50, Carprog, iProg, Launch X431, Autel etc.) to Diagnose / Reset / Repair / Coding Airbag Module.

Connect with Xhorse VVDI MB tool / CGDI MB to read Mercedes Benz EIS/EZS data; can be used to replace Benz EIS EZS adapter set.

What is the analog ignition switch?

After the ING ignition switch is pressed, the line marked with ING12V will have 12V, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.

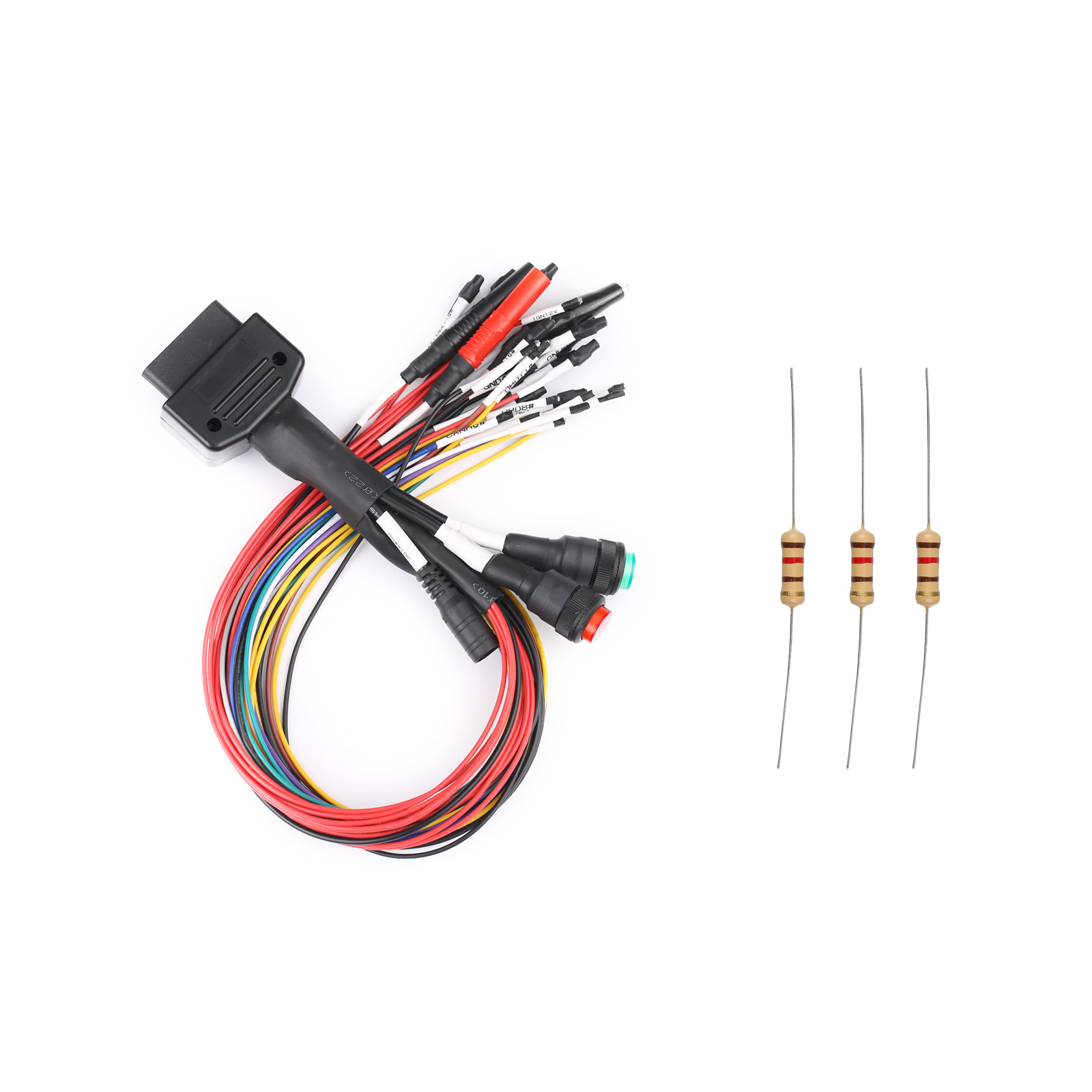

Package Includes:

1pc × Full Protocol OBD2 Jumper

3pcs × Electrical Resistance
