EU ShipFree Shipping2026 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski Get Free Key Sim and Motor Adapters

Product Description

1. Support Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

2. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform are available.

3. Supports Car, HD, E-Car, MOTO, Marine (jet-ski) Immobilizer

4. Built-in Can FD, Doip, Get Free MP001, P004 Adapters, Renault Adapter, free Key Sim and Motorcycle Adapter Set.

5. 2 Years Free Update

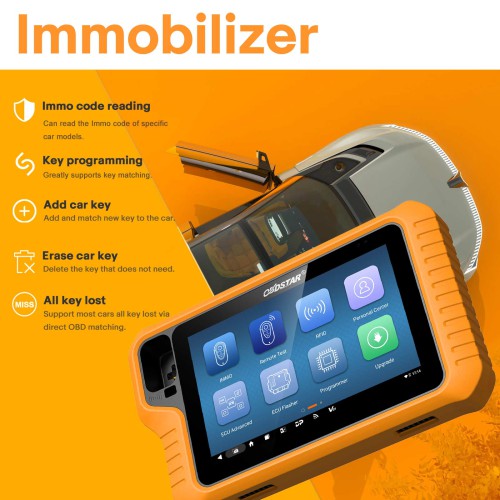

OBDSTAR X300 Classic G3 Key Programmer

X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.

Highlights:

1. Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

2. Supported vehicles: Car, HD, E-Car, MOTO, Jet Ski.

3. 2 Years Free Update Online, After 2 Years, please buy OBDSTAR G3 One Year Update Service.

4. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID

5. With MP001 (replace P003/P003+ Adapter), P004 Adapter and Renault Adapter in Default Package

6. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.

7. Paid Software Service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform (Bundle Price) and the other functions are available. Turn your G3 to a powerful all in one tool. With ECU Cloning license, G3 will work as same as DC706.

8. Get Both Key SIM Emulator and Motorcycle Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) for Free.

9. Please Check

OBDSTAR X300 Classic G3 User Manual

OBDSTAR X300 Classic G3 Vehicle List

Hardware Advantages:

1. Built in CAN-FD, Low Speed (Fault Tolerant) CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;

2. Quad-core 64-bit Cortex-A55 2.0GHz, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0.

Product Features:

1. Support Car key programming functions for below models:

MQB all keys lost (supports both PROXIMITY AKL and BLADE AKL, synchronization code calculation is unlimited)

FORD/LINCOLN 2021-key programming

NISSAN SENTRA B18, ROGUE T33 all keys lost

...

2. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;

3. Support Marine key programming function for BRP, KAWASAKI, YAMAHA and others;

4. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;

5. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;

6. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;

7. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;

8. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models;

9. Paid software activation service for ODO METER, ECU Flasher, Crash Reset, Test Platform and the other functions are available.

Supported Vehicle Types:

Car, HD, E-Car, MOTO, Marine (jet-ski)

Software Functions:

Support Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

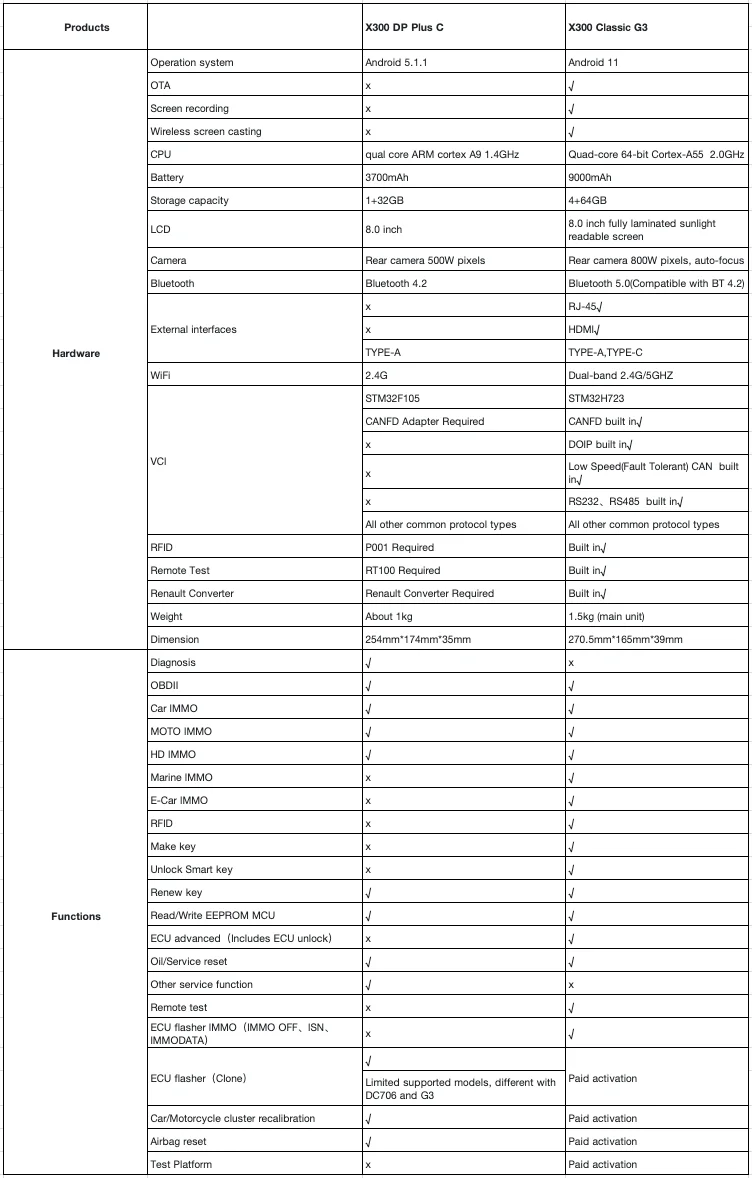

Product Comparison:

OBDSTAR X300 Classic G3 FAQ:

Q1: Can the X300 Classic G3 be equipped with Airbag Reset, Cluster Recalibration, ECU Flasher and other functions?

A1: Yes, please contact us or our our dealers for details.

Q2: I would like to have the list of supported models & features of this tool, where can I get it?

A2: You can download the coverage of the tool from the "Function Manual" on the product page of our official website, and we usually synchronize the update at the end of each month.

Q3: Is X300 Classic G3 compatible with all the functions of KEY MASTER DP PLUS?

A3: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of KEY MASTER DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.

Q4: Can I use the accessories of an old product I have previously purchased?

A4: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:

1. P002 adapter, P003 adapter, Key Sim adapter;

2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;

3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;

4. FCA 12+8 CABLE;

5. TOYOTA 8A cable, FORD all key lost cable.

Q5: What is ECU Unlock function of X300 Classic G3?

A5: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.

Package Includes:

1pc x OBDSTAR G3 Multiplexer

1pc x M001 Main Cable

1pc x Charger

1pc x MP001 All-in-One Programmer

1pc x W004 Read/Write Soldering Wire

1pc x W005 Read/Write Soldering Wire

1pc x W006 Clock Frequency Wire

1pc x C4-01 Multi-function Data Read/Write Board

1pc x C4-02 Eight-pin Chip(IC) Soldering Board

1pc x BENCH-A V3 for ECM and TCM Cloning Functions

1pc x P004 Adapter

1pc x BENCH-B V2 ECU Cloning BENCH Harness

Free Gift Kits

A1:

1pc x Key Sim + USB to Type-C Cable

A2:

1pc x M034 Harley-4+6

1pc x M037 Ducati-4

1pc x M040 BMW-10

1pc x M041 OBD-6

1pc x M042 INDIAN/VICTORY-8

1pc x M043 BRP-6

1pc x M053 HONDA IMMO

1pc x M054 SUZUKI/YAMAHA
