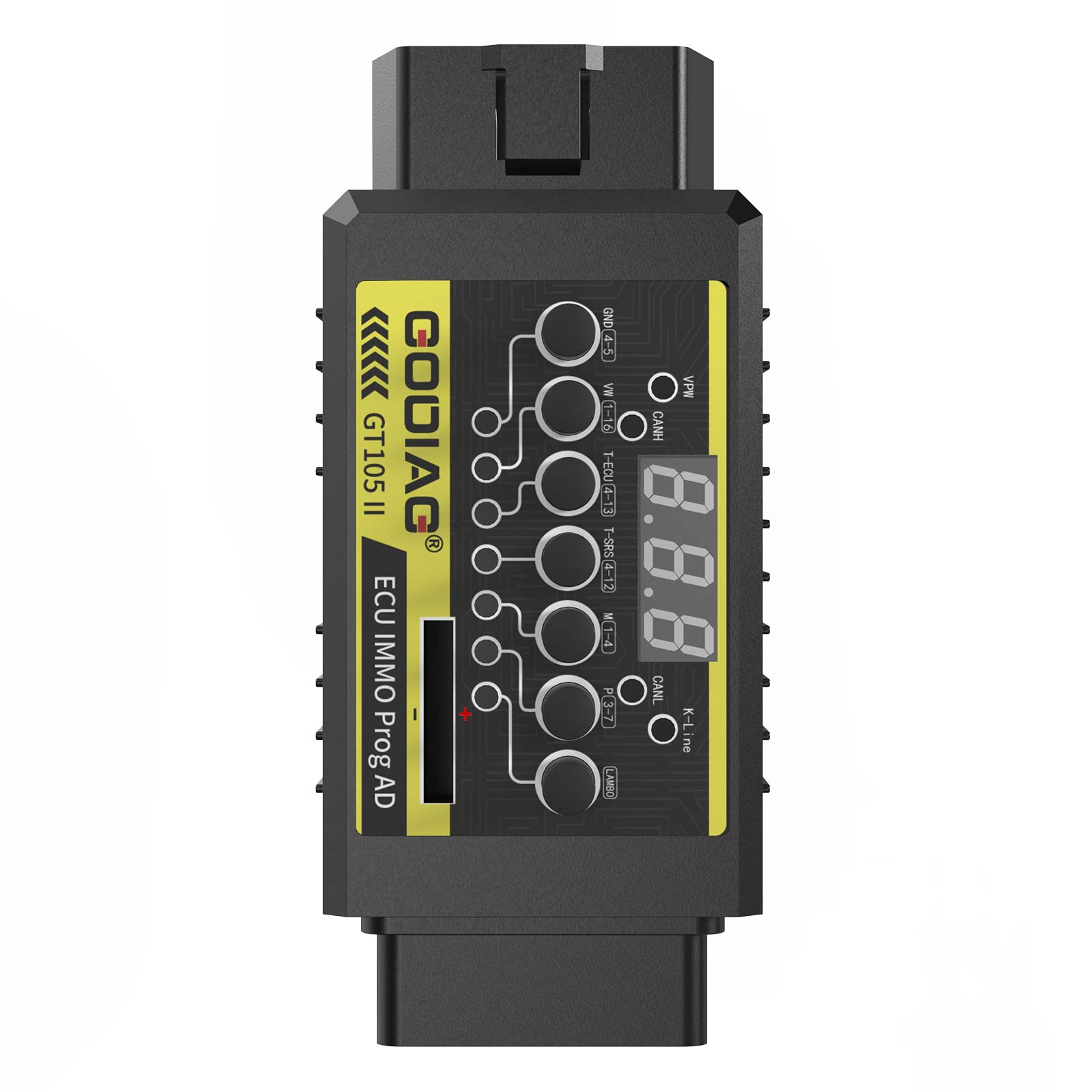

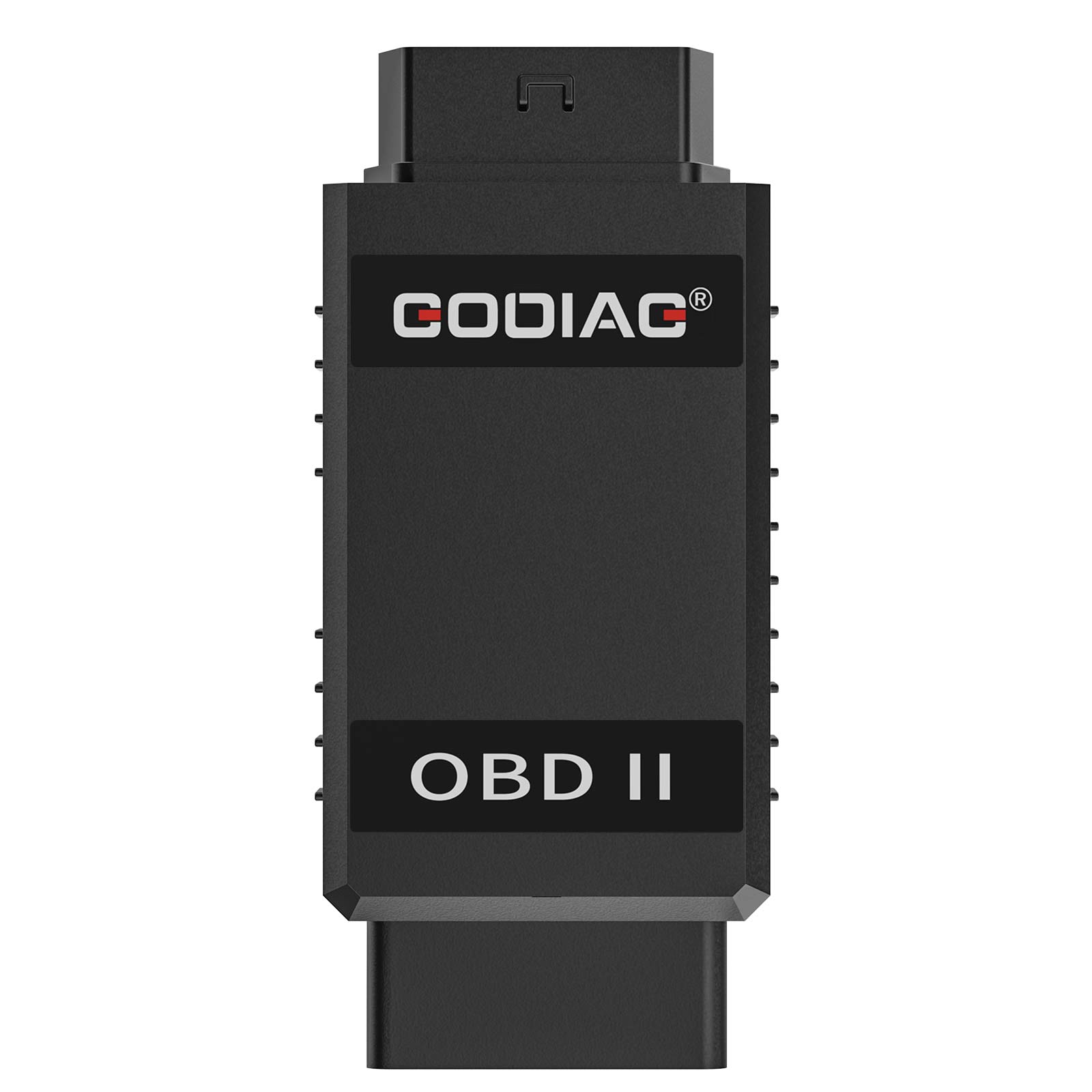

GODIAG GT105 II ECU IMMO Prog AD OBD2 Break Out Box ECU Connector

1. GODIAG GT105 II is the upgraded version of the GODIAG GT105.

2. Newly added 5 new functions: vehicle voltage display, car remote control battery CR2032 battery test, car battery voltage alarm prompt (lower than 11V), TOYOTA steering angle matching, and Lamborghini ID48 key IMMO auxiliary activation.

GODIAG GT105 II ECU IMMO Prog AD OBD2 Break Out Box ECU Connector

Product Description:

The GODIAG ECU IMMO Prog AD GT105 II is used for short-circuiting OBD2 in the car for IMMO activation matching, ECU diagnosis and programming connection, and drawing power from the vehicle's battery for outdoor on-site vehicle maintenance.

Compared with GT105, it has added 5 new functions: vehicle voltage display, car remote control battery CR2032 battery test, car battery voltage alarm prompt (lower than 11V), TOYOTA steering angle matching, and Lamborghini ID48 key IMMO auxiliary activation.

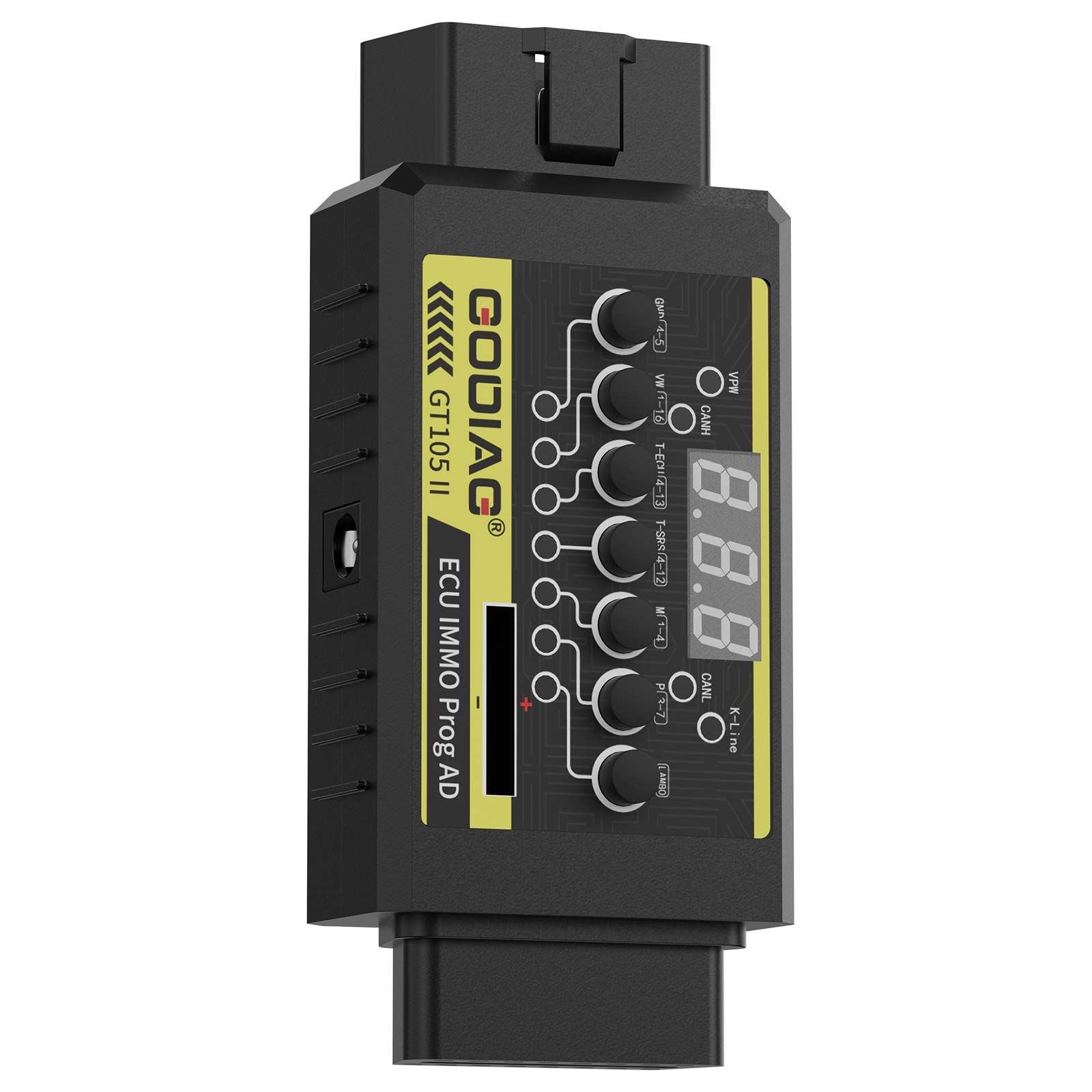

The product is equipped with PWM+ (PIN2), CANH (PIN6), CANL (PIN14), and K-line (PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash. Therefore, the communication status can be judged, and you can also determine whether the diagnostic programming device is able to communicate.

The product is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.

The device provides OBD2 independent PIN4 body GND and PIN5 signal GND, which is convenient for some modules to be used for special programming. In addition, with the OBD2 full protocol ECU programming cable, users can also connect the ECU in the studio to adjust the ECU programming power.

The device has PWM+ (PIN2), CANH (PIN6), CANL (PIN14), and K-line (PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash. Users can judge the communication status, and also can judge whether the diagnostic programming device can communicate.

Product Highlights:

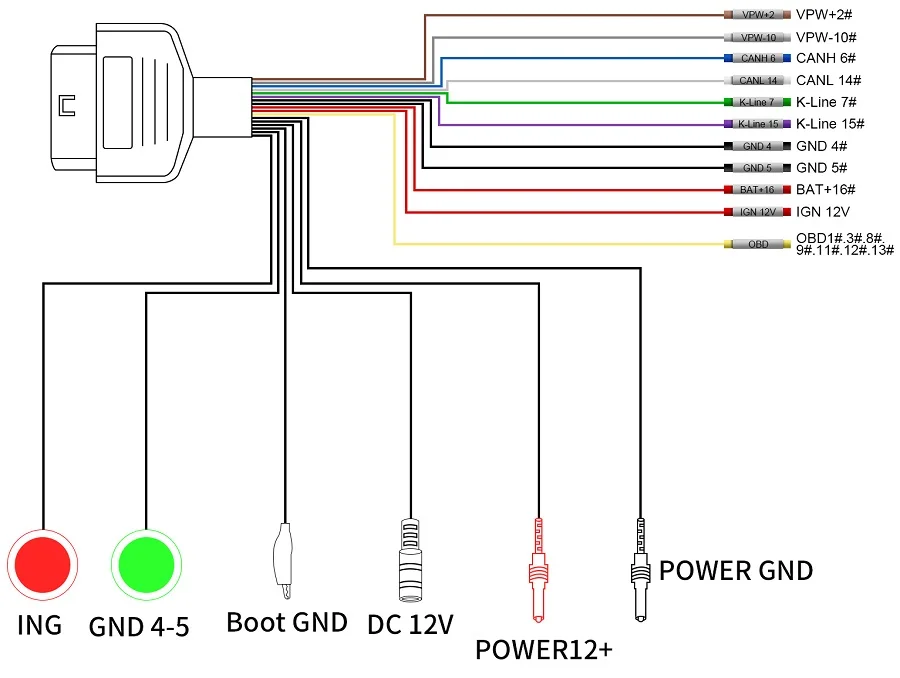

1. A full-protocol ECU connection line for ECU programming power adjustment.

2. OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.

3. PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.

4. Standard OBD2 independent PIN4, PIN5.

5. Pure copper female seat supports repeated insertion and removal, and has a long service life.

6. Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.

7. The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5 / DC5.5*2.1 interface.

8. The DC connector has a resettable 7A fuse.

9. DC power interface, dedicated laboratory power connector.

Product Functions:

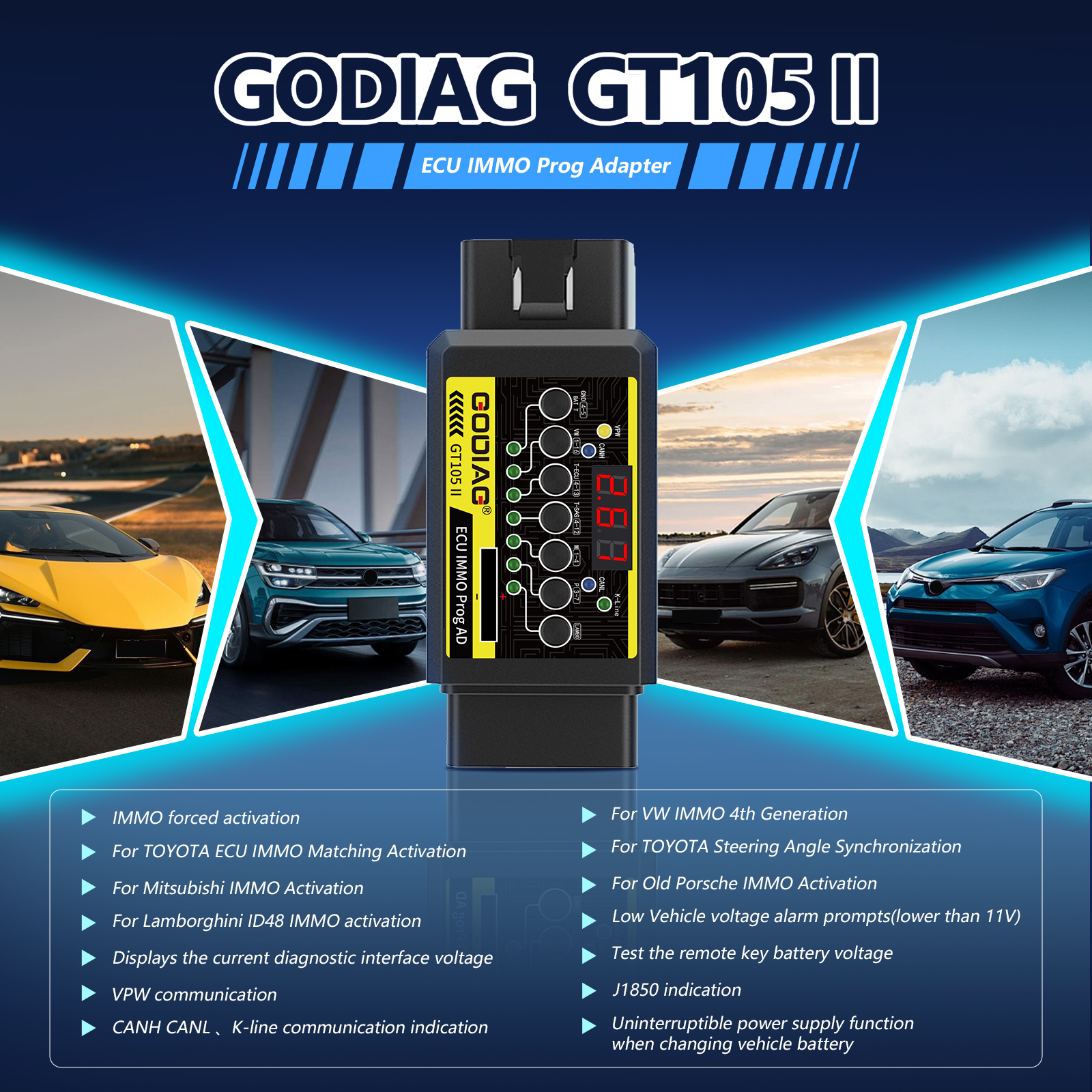

Vehicle voltage display

Car remote control battery CR2032 battery test

Car battery voltage alarm prompt (lower than 11V)

TOYOTA steering angle matching

Lamborghini ID48 key IMMO auxiliary activation

IMMO AD power adapter function:

After 2016, for Ford all smart keys lost, GT105 II cooperates with VVDI equipment (OBDSTAR, AUTEL) and other anti-theft matching equipment to program the keys.

All car keys lost matching — wake up the meter or wake up the anti-theft ECU. (Supports VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi all key lost matching or all lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)

VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)

On-site Maintenance:

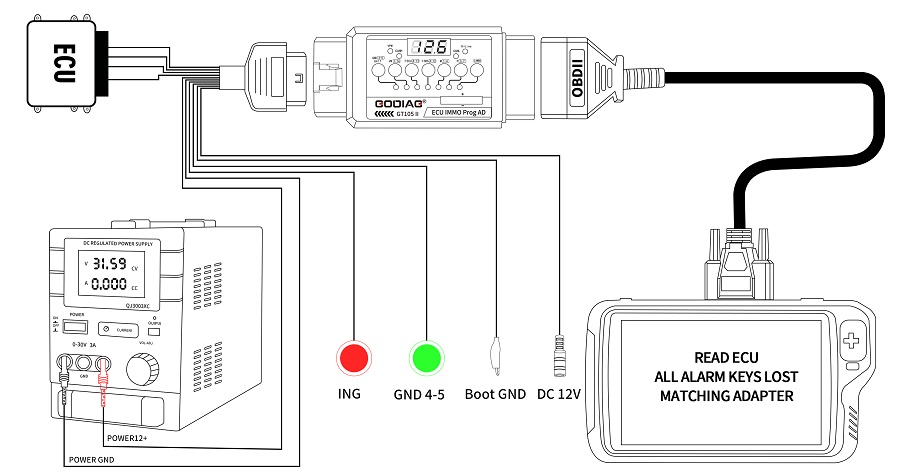

The GT105 II power adapter cable obtains 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW BENZ IMMO ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles.)

Provide 12V power supply for the key cutter (12V).

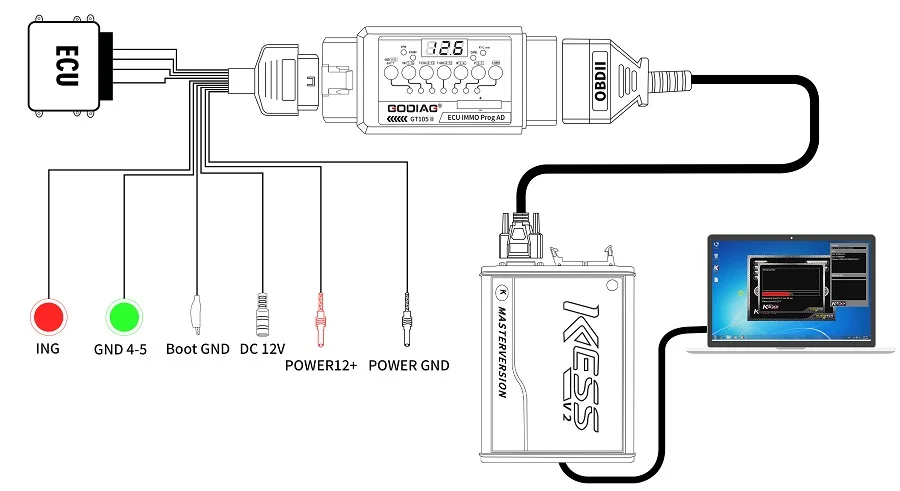

Standard OBD2 full protocol ECU programming line (with MPPS, FGTech, Kess v2, etc., for ECU data reading and writing, ECU cloning, ECU tuning, etc.)

Note: OBD2 full protocol ECU programming line is purchased separately.

OBD Battery Replacement Tool:

Realize the uninterruptible power supply during the battery replacement, so it can prevent data loss, key failure, or re-matching caused by power interruption during the battery replacement.

With GT105 II, you can enjoy the functions listed below during the battery replacement:

1. The clock does not change.

2. The speaker is not locked.

3. IMMO is not locked.

4. Glass door is not set.

5. The throttle is not set.

6. The warning light is off.

7. No fault code.

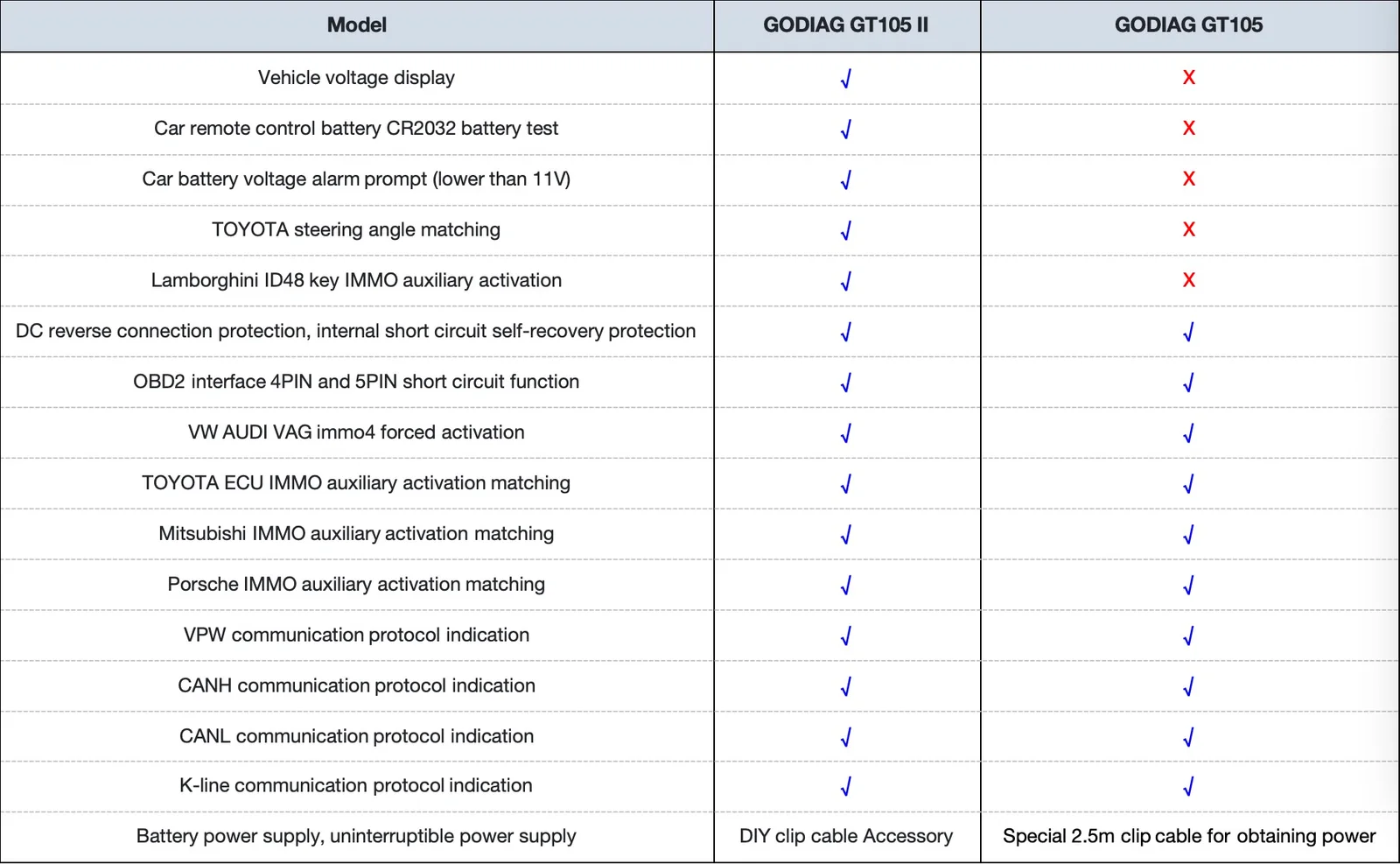

GODIAG GT105 II v.s. GT105

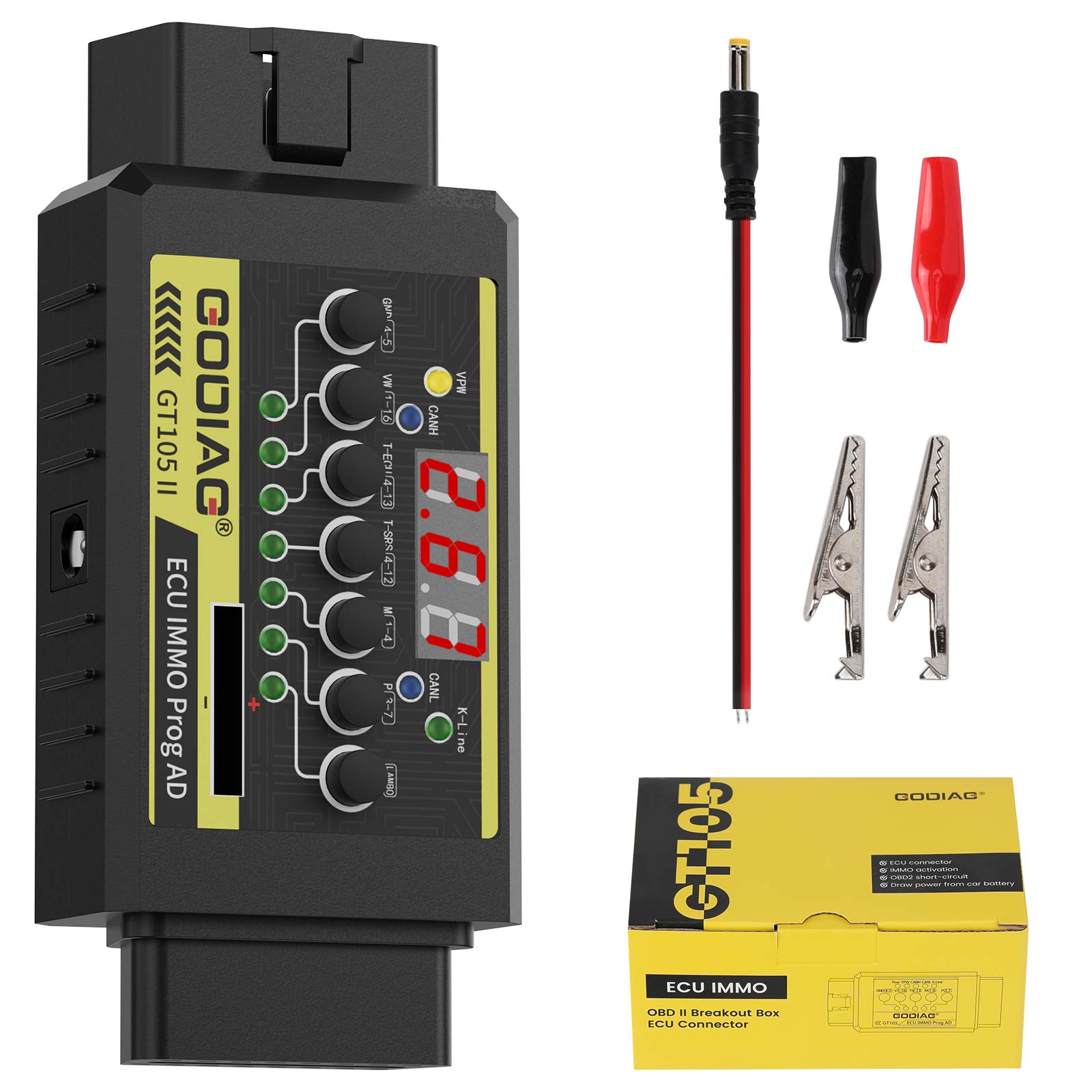

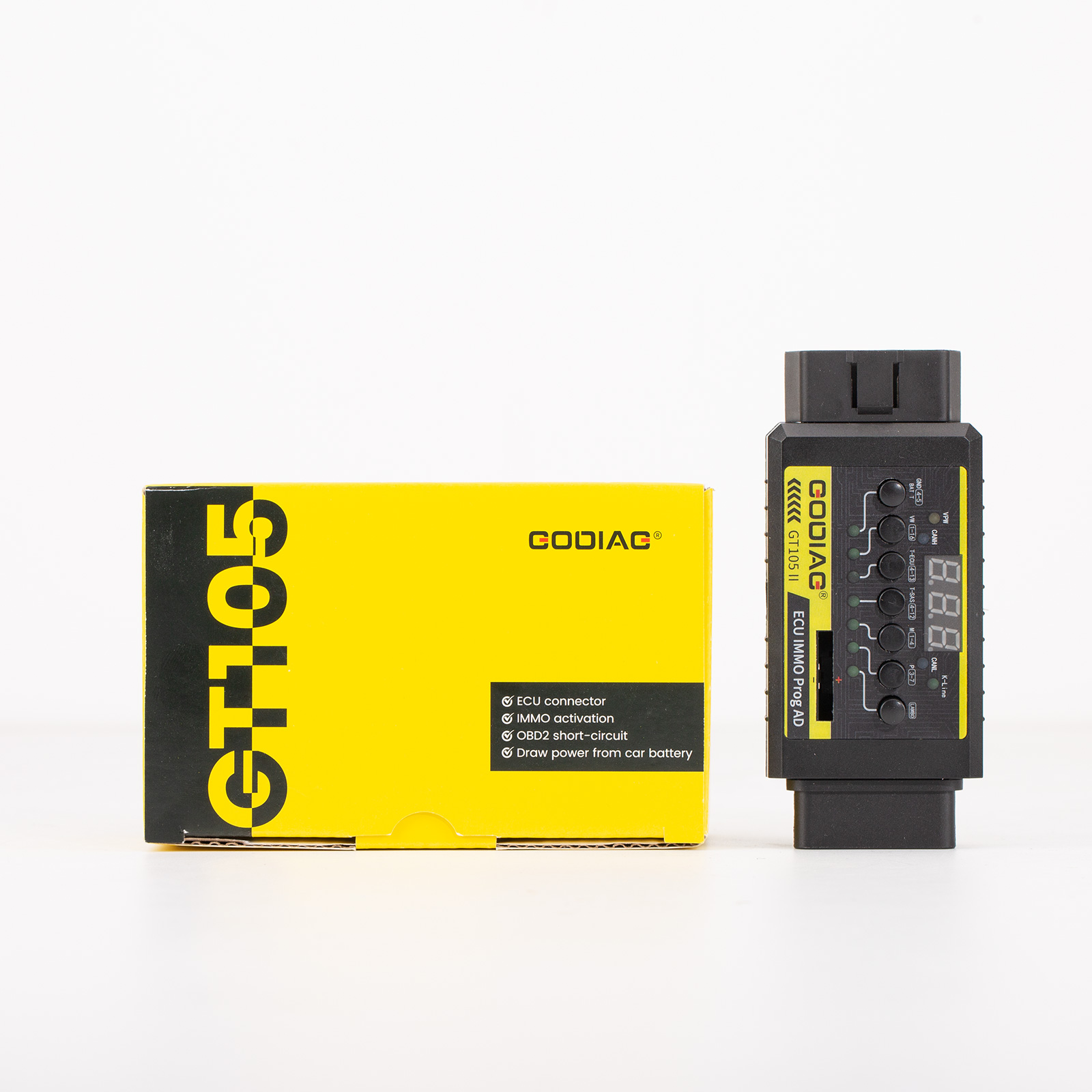

Package Includes:

1pc x GT105 II host

1pc x Power cord with battery clip
