GODIAG GT100 PLUS GPT ENET DOIP 24V-12V AUTO TOOLS OBD II Break Out Box ECU Connector

1. Use GPT to read and write ECU with devices (such as PCMFLASH, KESSV2).

2. Support DOIP-ENET Diagnostics.

3. 24V to 12V Voltage Conversion.

4. Work with CAS1/CAS2 Mech-Key Test Platform and CAS2 CAS3 SER Semi Smart Test Platform.

GODIAG GT100 PLUS GPT ENET DOIP 24V-12V AUTO TOOLS OBD II Break Out Box ECU Connector

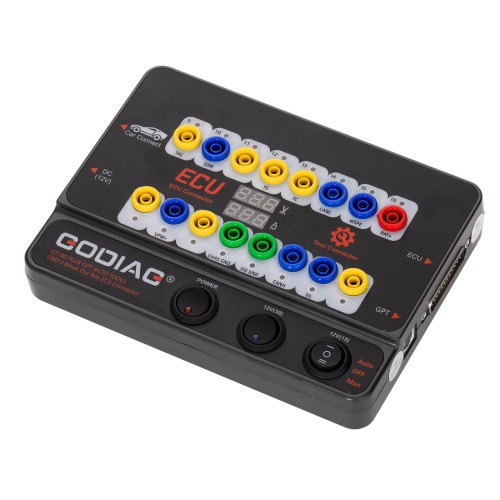

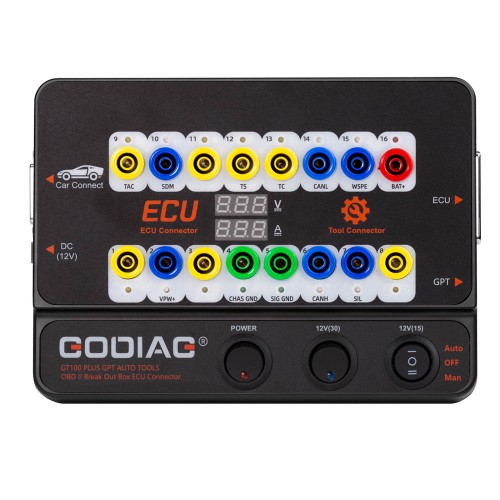

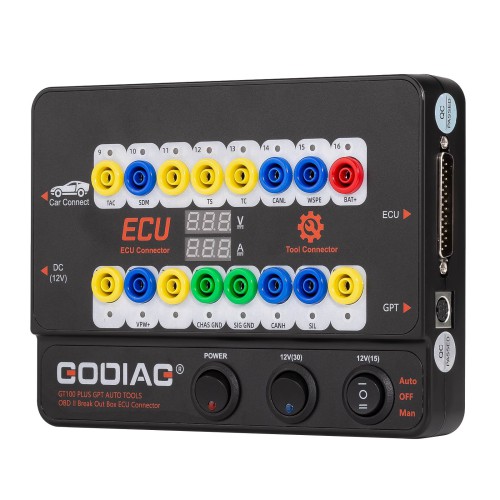

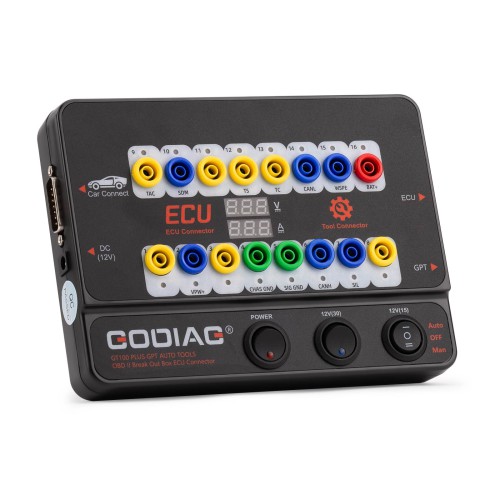

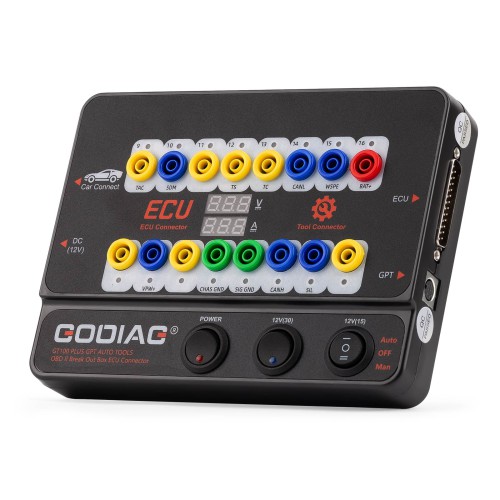

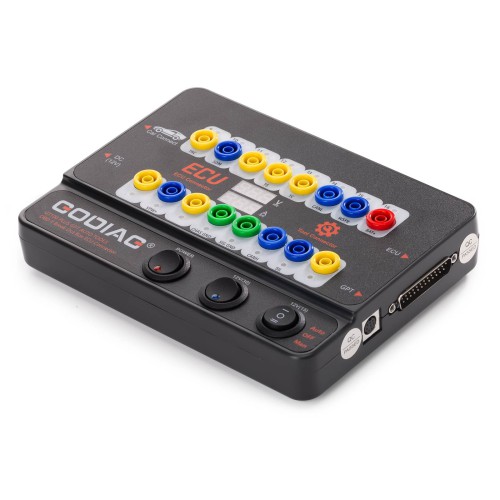

GODIAG GT100 PLUS GPT Introduction:

GODIAG GT100 PLUS GPT is a testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming, and coding. GT100 PLUS has a voltage and current display which is convenient for maintenance engineers to judge the current working status of the ECU.

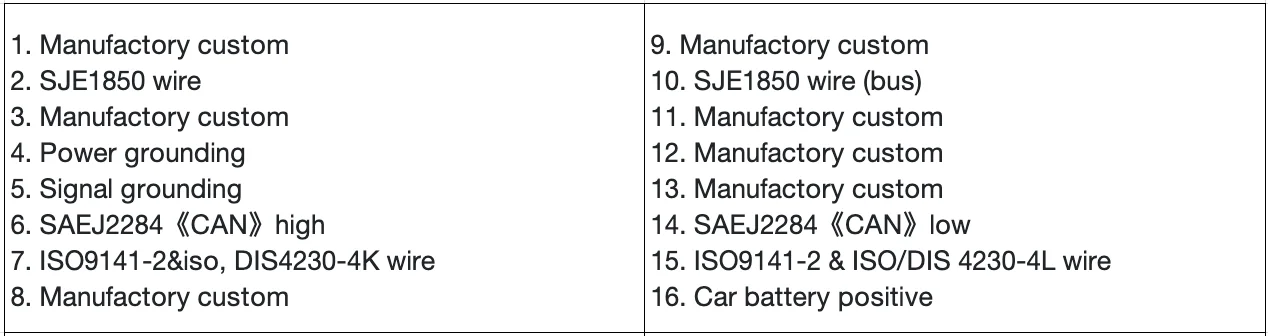

It can convert the car OBD2 interface into 16 pins for signal detection.

It can be connected to the single modules or multiple modules of the vehicle. It can also be connected with any diagnostic tool to tell whether the car communication is good or not.

It supports the 24V to 12V voltage conversion, DOIP-ENET communication and GPT to read and write ECU data. It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.

The product uses CANH and CANL shielded twisted cables, which can resist electromagnetic interference and make communication more stable.

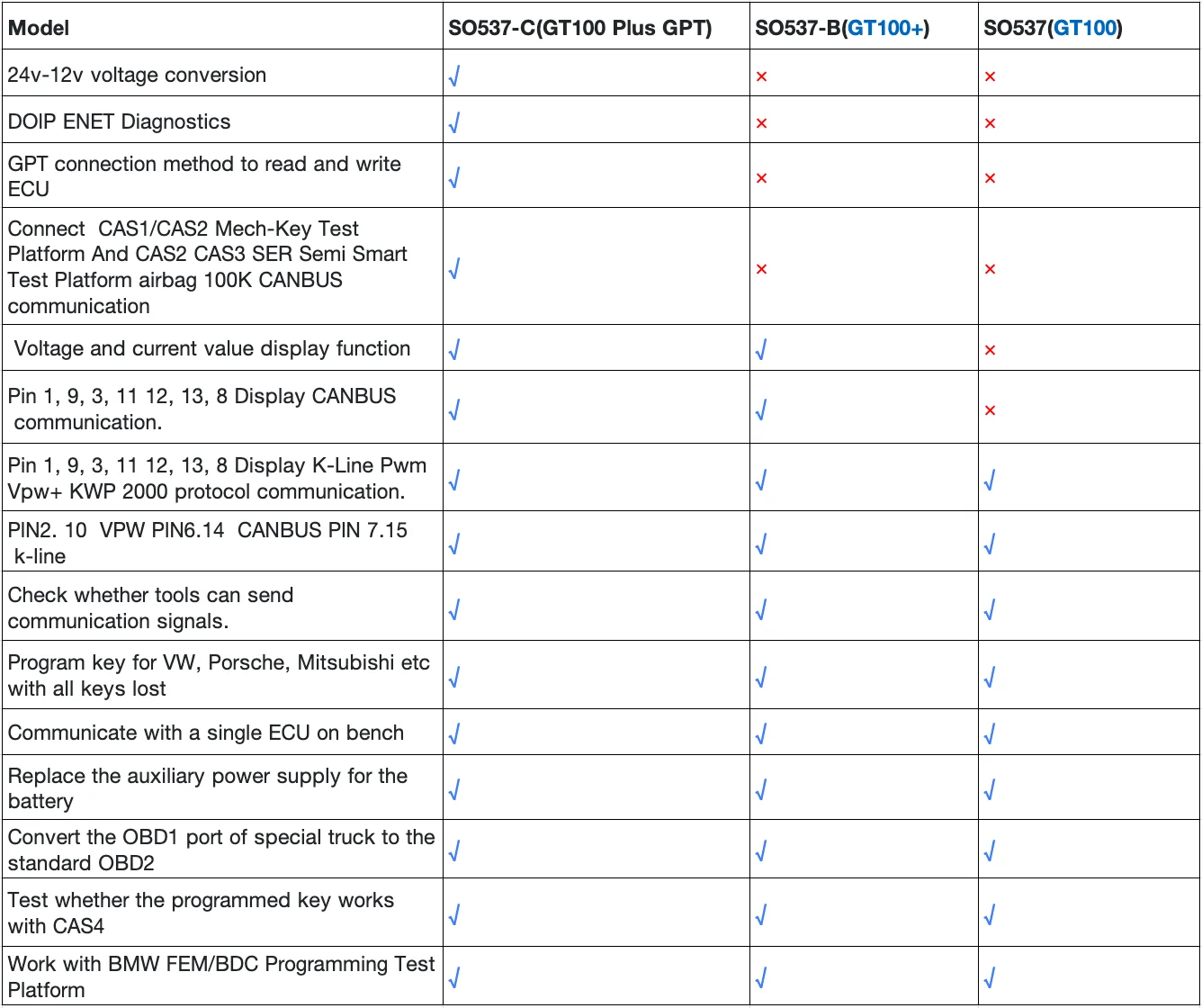

Product Function Comparison Among SO537-C(GT100 PLUS GPT), SO537-B(GT100+) and SO537(GT100):

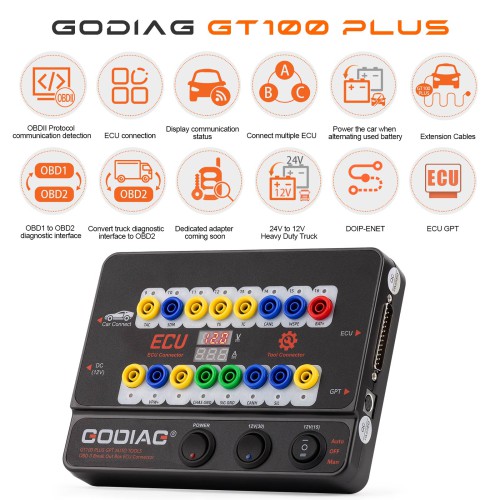

Product Functions:

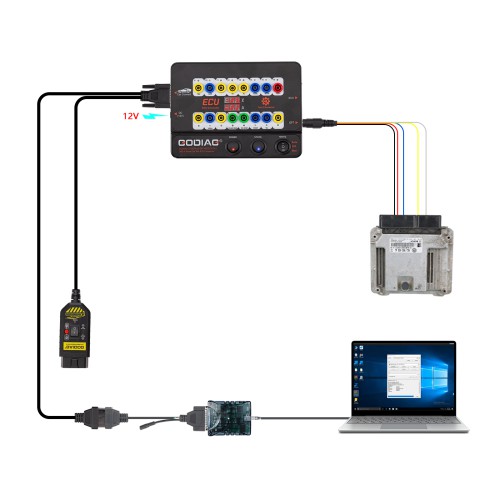

1. Use GPT to read and write ECU with devices (such as PCMFLASH, KESSV2)

Supports GPT to read and write data without disassembling the ECU.

Supports OBD2 BENCH [CAN bus & K-Line] and GPT BOOT CNF1.

2. Check OBDII diagnostic interface Communication Status and Display Voltage

By connecting the vehicle and diagnostic tool via OBDII, GODIAG GT100 PLUS GPT's LED will indicate whether the OBDII diagnostic interface has good communication with the car. It monitors the voltage of the vehicle's OBDII interface and displays it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid data loss, module locked, or the vehicle being unable to start. It supports OBD2 BENCH full protocols.

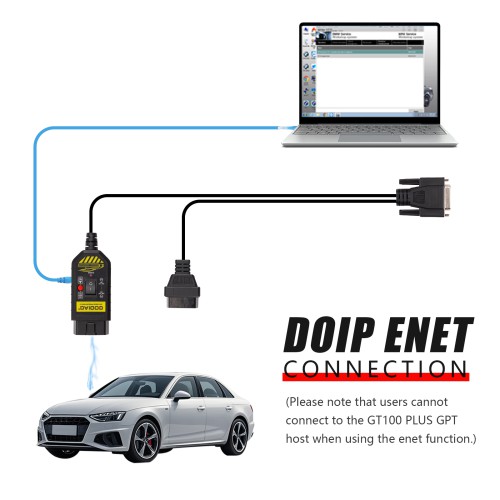

3. Support DOIP-ENET Diagnostics

Supports DOIP-ENET communication.

Supports diagnostic programming and coding for BMW, Benz, Volkswagen, Audi and other vehicles that support DOIP protocol [no software is provided].

Can be used for diagnostic programming and coding of Land Rover, VOLVO, and Geely vehicles that support DOIP communication [no software is provided].

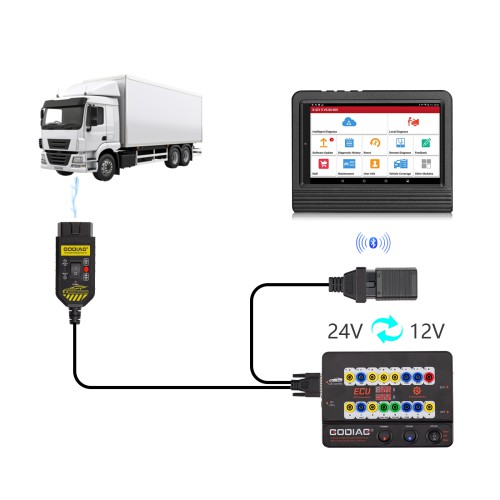

4. 24V to 12V Voltage Conversion

Converts the 24V voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc. into 12V voltage that can be used by diagnostic equipment.

5. Connect with Airbag ECU.

6. Used to check whether the diagnostic / programming / coding tool can send communication signals.

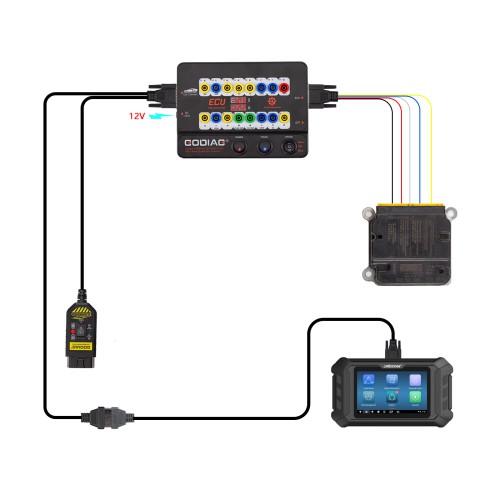

7. ECU connection: single module connection

GODIAG GT100 PLUS GPT, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

8. GT100 PLUS GPT program key for VW, Porsche, Mitsubishi etc. with all keys lost – activate the instrument or immobilizer module.

A. To program VW 4th generation / 5th generation Lost all keys (for example: new A6L, Touareg, A4, Q5, A7), please use GT100 PLUS GPT to short-circuit banana connector PIN 16 to PIN 1 to light up the dashboard; after that, use the key programmer tool to connect with the female adapter of GT100 PLUS GPT for data collection. Some vehicle dashboards won't be lit up, but data can also be collected – for example: A6L, Q7.

B. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when all keys lost, it needs to short-circuit PIN13 to PIN4.

C. To program Mitsubishi key with all keys lost or to set OBDII when all remote keys are lost, please short-circuit PIN1 to PIN4.

D. To program Porsche Cayenne key with all keys lost or with all remote keys lost, please short-circuit PIN3 to PIN7.

9. Voltage and Current Value Display function

On the bench, connect the ECU module by using the banana connector or DB25 dedicated ECU interface, and GODIAG GT100 PLUS GPT will display the voltage and current values. The user can intuitively see the current status of the ECU. If there is no current display, or the actual displayed current is inconsistent with the engineer's expected current, then you can immediately check whether the wiring is wrong. If the wiring is correct, the engineer can judge that the ECU may be broken, so there is no need to perform diagnostic communication and can directly repair the ECU.

If it shows too much current, then you can also determine if the cable is wrongly connected or the ECU is broken.

10. GT100 PLUS GPT Pin 1, 9, 3, 11, 12, 13, 8 [corresponding to the yellow banana connector on the machine] – these non-standard OBD2 protocol interfaces may display CAN BUS or K-Line communication protocol. GT100 PLUS GPT will display CANBUS, K-Line, PWM, VPW+, and KWP2000 protocol communication.

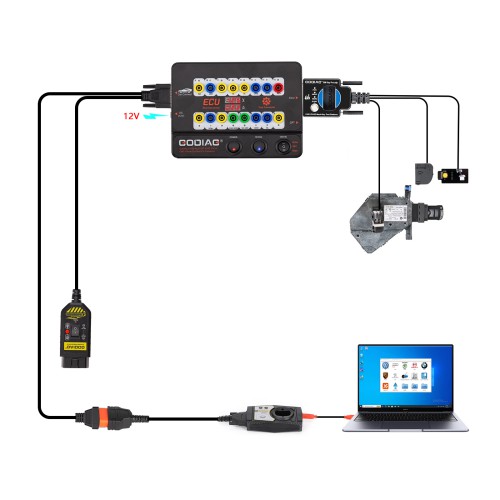

11. Quickly communicate with a single ECU on the bench by connecting with the ECU diagnostic / programming tool. This allows engineers or technicians to complete the job on the bench, while also keeping away the risk of data loss in other modules when directly testing on the vehicle.

12. Multiple vehicle ECU module connecting – This is aimed at solving the problem of engineers and technicians who need to connect multiple ECUs during module programming, such as connecting to multiple ECU modules for key programming.

13. Replace the auxiliary power supply for the battery – uninterruptible power supply connecting mode – Since there is failure or missing anti-theft remote control data of some vehicles when the battery is disconnected, the auxiliary power supply aims at supplying power to the vehicle through GT100 PLUS GPT before replacing the battery to sustain the power supply to the vehicle. It guarantees the vehicle ECU remains powered during the replacement of the battery.

14. The OBD2 cable of GT100 PLUS GPT is 1.4 meters long – This will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too narrow to connect. Please connect GT100 PLUS GPT first, turn on the power switch and you will see the voltage on the screen which can tell whether the power supply of the vehicle is normal. This also keeps away the risk of burning out the diagnostic & programming tool due to a modified vehicle OBD2 port.

15. For old OBD1 vehicles or special diagnostic ports, please connect GT100 PLUS GPT through the banana plug and DB25 jumper. The OBD1 diagnostic port or special diagnostic port can be transferred to the standard OBD2 diagnostic port.

16. GT100 PLUS GPT will convert the OBD1 port of special trucks to the standard OBD2 diagnostic port according to the protocol.

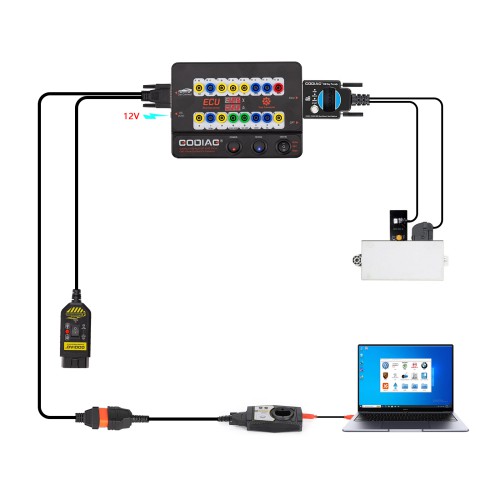

17. Work with CAS1/CAS2 Mech-Key Test Platform.

18. Work with CAS2 CAS3 SER Semi Smart Test Platform.

19. For BMW CAS4/CAS4+ Programming Test Platform, it is used to test whether the programmed key works with CAS4 normally.

20. For BMW FEM/BDC Programming Test Platform.

21. More connectors and dedicated modules are under development – please stay tuned.

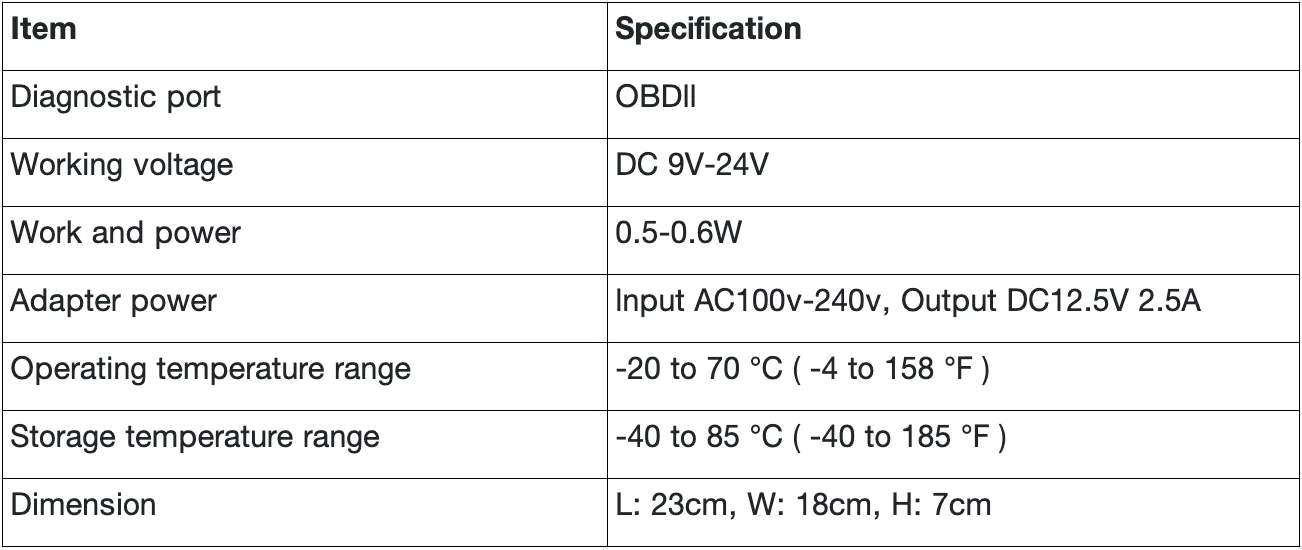

Product Specifications:

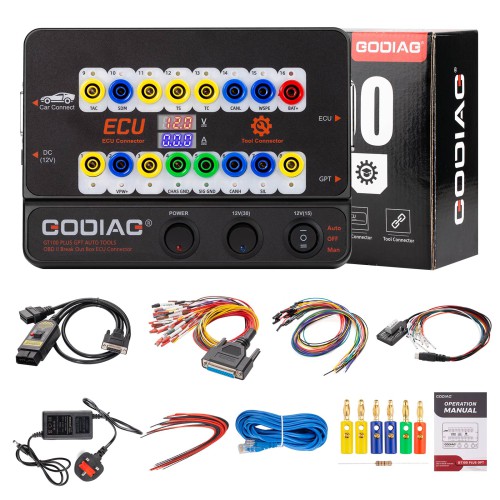

Package Includes:

- 1 x Host

- 1 x GPT connecting cable

- 1 x Ethernet cable

- 1 x OBD 2-in-1 extension cable

- 1 x Colored jumper cable

- 1 x 12V power supply

- 1 x 120Ω resistor

- 6 x Banana plugs

- 24 x Dupont 2.54mm female pin connectors (wire accessories)

- 1 x Manual
