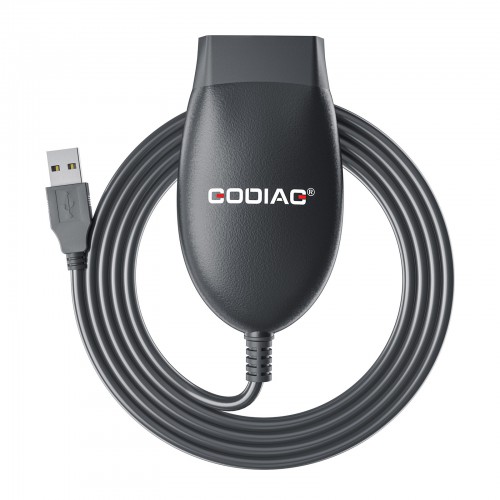

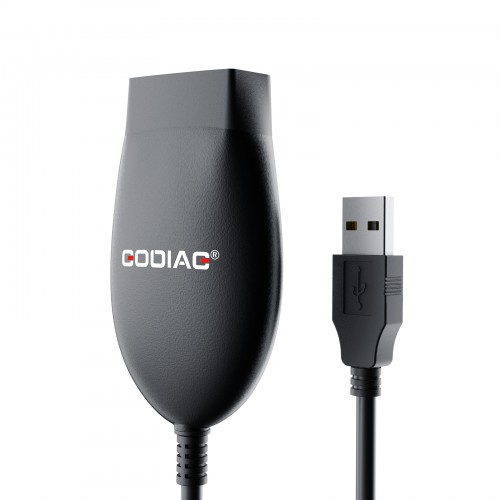

GD101 J2534 Passthru Diagnostic Cable for Ford Mazda/ Honda/ Toyota/ Renault/ Forscan/ ScanMaster/ SDD/ ELM327/ J1979

GODIAG GD101 J2534 Passthru Diagnostic Cable for Ford Mazda / Honda / Toyota / Renault / Forscan / ScanMaster / SDD / ELM327 / J1979

1. GODIAG GD101 Openport 2.0 J2534 is compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, ScanMaster v2.1, VAG ODIS 9.1.0, Renault Clip V227/V230, and more.

2. Works with J2534 Passthru and ELM327.

3. Has similar functionality to Tactrix Openport 2.0.

GODIAG GD101 J2534 Highlights:

1. Support J2534 and ELM327 mode in one device. Switch mode automatically.

2. Compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, ScanMaster v2.1, VAG ODIS 9.1.0 and Renault Clip V227, Renault Can Clip V230.

3. GODIAG GD101 J2534 has similar functionality to Tactrix Openport 2.0.

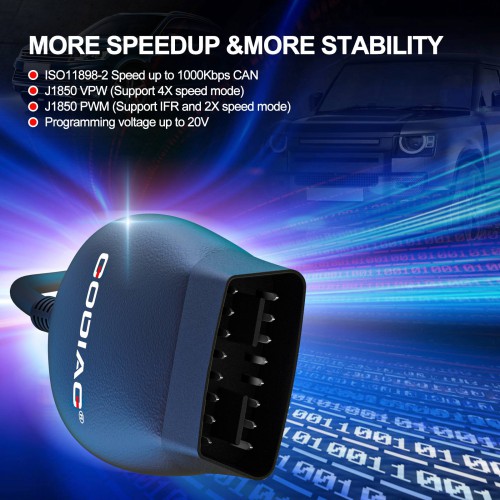

4. More speedup. Faster communication and reprogramming.

5. More stability. Never let you down while reprogramming.

6. Portable and convenient. Small package and easy to carry.

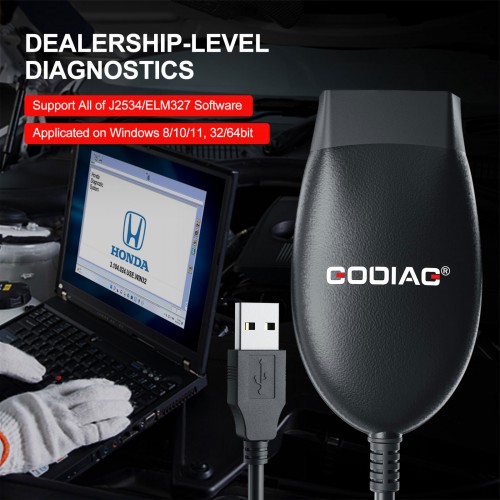

7. Works on Windows 8/10/11, 32/64-bit.

8. Multi-Languages Available

ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Chinese.

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese.

Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese, Chinese.

JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean.

Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak, Ukrainian.

ScanMaster ELM327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian.

Pcmflash: English, Russian.

Can Clip Renault: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romanian, Swedish.

GODIAG GD101 J2534 OBD2 Openport 2.0 Features:

1. Support most J2534 compatible software (HDS, TIS, ODIS, JLR SDD, etc.).

2. Support most ELM327 software (ELMConfig, Forscan, ScanMaster, etc.).

3. Support ECU reprogramming in J2534 mode with programming voltage.

4. Supply free software for diagnosing J1979 compatible vehicles.

Notice:

1. GODIAG Software Free Download:

Free Download GODIAG J2534 Driver V2.3.

2. Not Support Win7 System.

GODIAG GD101 J2534 Supported Car Models:

1. JLR SDD Software for Land Rover/Jaguar – Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines. Support for X100, X150, X202, X250, X350, X351, X400 Jaguar vehicle lines.

2. HDS Software for Honda – Support for Accord, Civic, CR-V, City, and more.

3. Toyota – Support for Camry, RAV4, Corolla, Prius, Lexus.

4. ODIS VAG – Support for VW, Audi, Seat, Skoda.

5. GM GDS2 Software – Support for Buick, Chevrolet, Cadillac, etc..

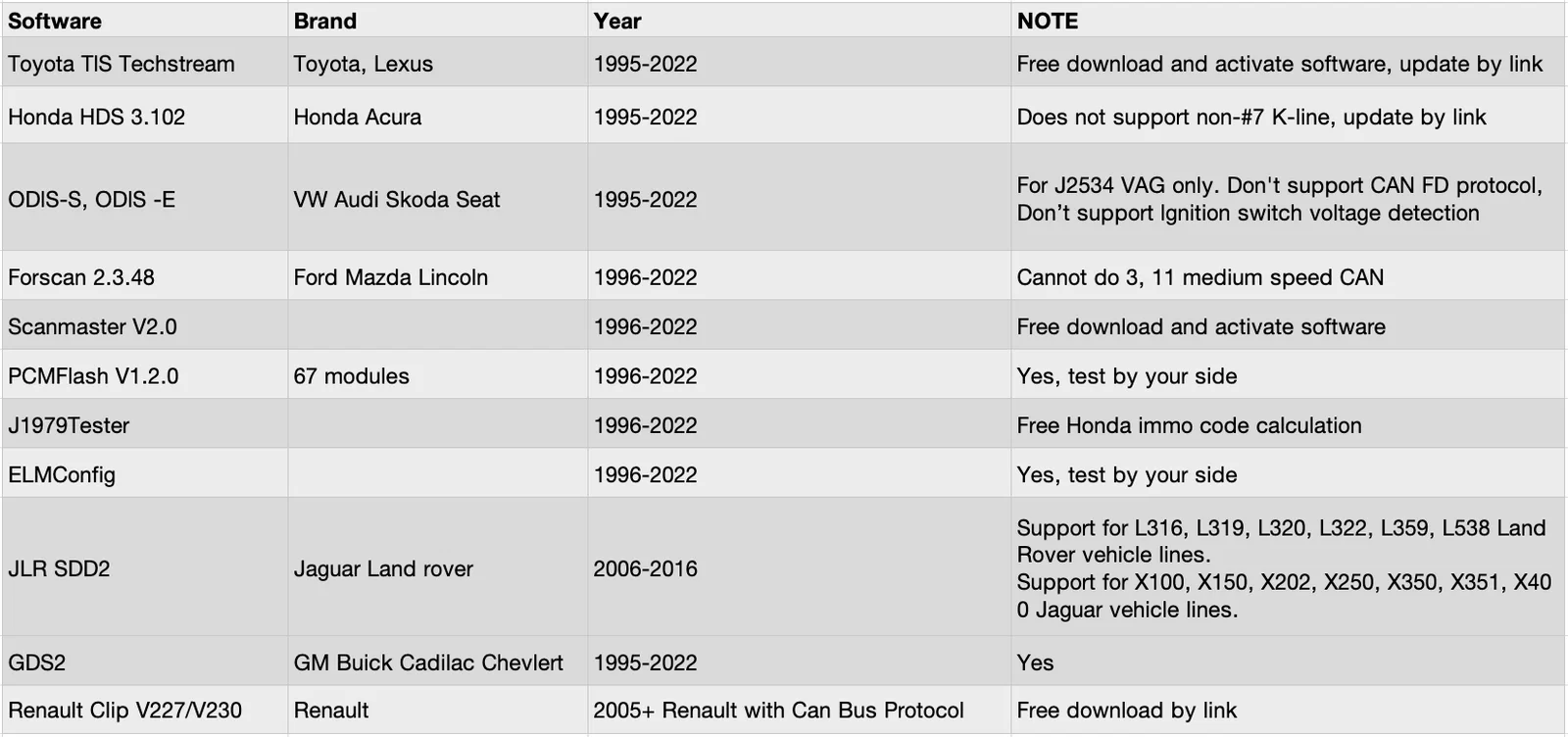

GODIAG GD101 J2534 Function List:

 Notice: Cannot support MS-CAN.

GODIAG GD101 J2534 Protocol Configuration:

1. ISO15765 (Standard/Extended frame).

2. ISO9141.

3. ISO14230.

4. J1850 PWM (Support IFR and 2X speed mode).

5. J1850 VPW (Support 4X speed mode).

6. Programming voltage.

7. Short to ground.

8. ELM327 with command set version 1.3a.

Notice: Cannot support MS-CAN.

GODIAG GD101 J2534 Hardware Configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).

2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).

3. J1850 PWM (OBDII PIN 2 and PIN 10).

4. J1850 VPW (OBDII PIN 2).

5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).

6. Short to ground (OBDII PIN 9. Short to OBDII PIN 5).

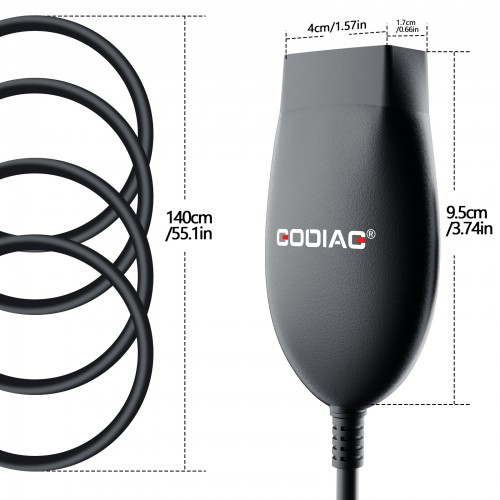

7. Dimension (L*W*H): 95mm * 55mm * 23mm.

8. Environmental: -20°C to 45°C (-4°F to 113°F).

9. Vehicle voltage requirements: 8-18V DC.

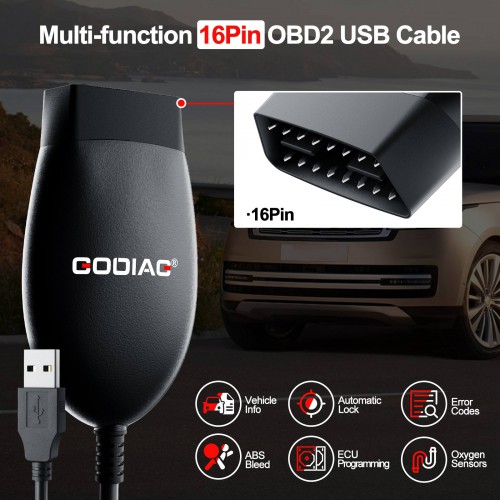

10. Vehicle connection: Molded DLC3 (OBDII-16).

11. Host connection: USB 2.0.

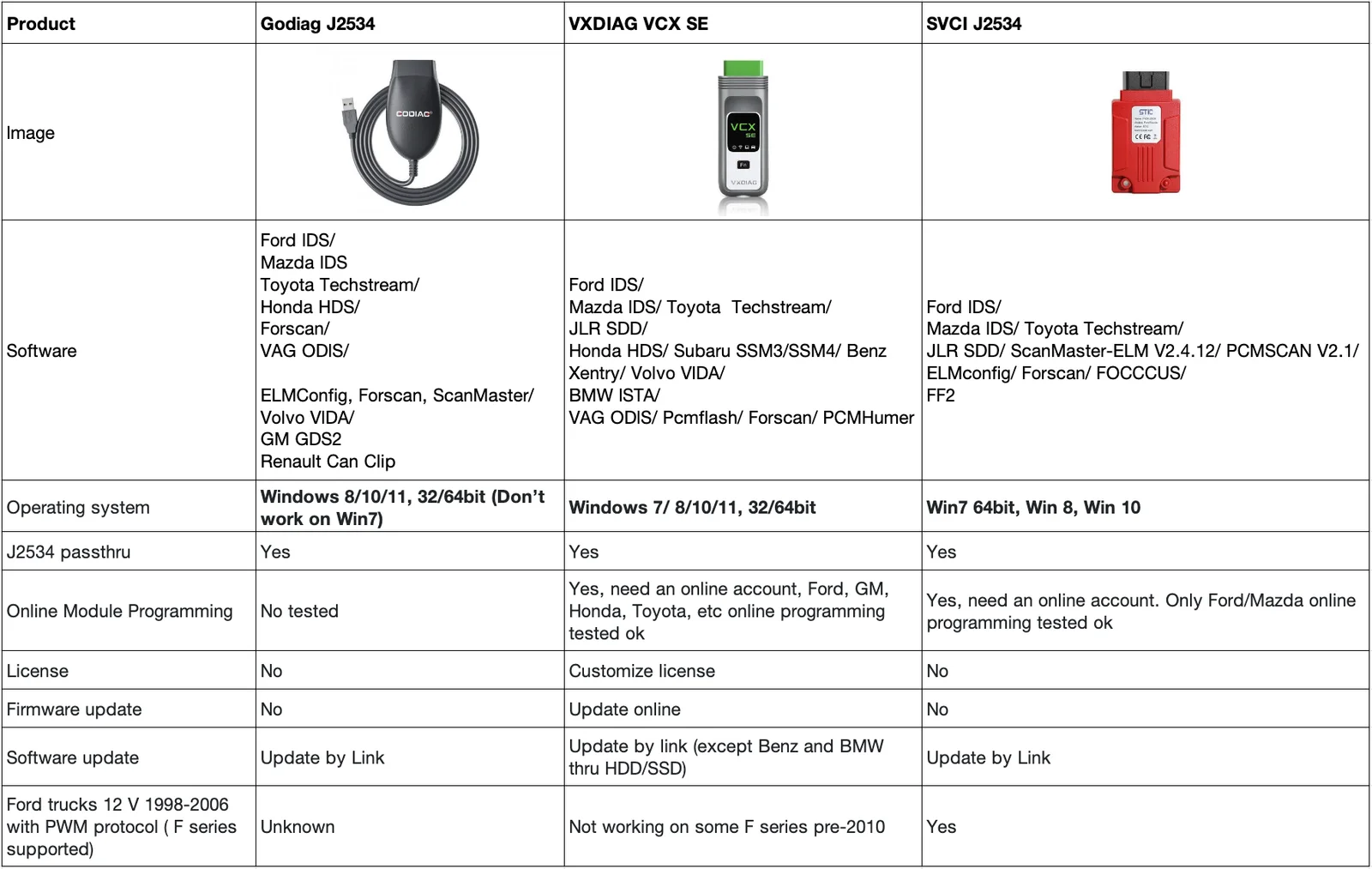

GODIAG GD101 J2534 vs. VXDIAG VCX SE vs. SVCI J2534:

How to use the GODIAG GD101 J2534?

GODIAG GD101 J2534 PCB Display:

Open the startup software, connect the device, and click upgrade firmware.

Update log:

1) Updated on 2023-8-16 – GODIAG GD101 J2534 driver update to V2.3. Click to download V2.3. Support test Renault Clip V227 (Renault year 2005+, Renault with Can Bus Protocol).

2) Updated on 2023-03-31 – Software update to v2.1. Firmware update to v1.8.

Fixed the following bugs:

1) J2534 mode J1850 VPW TX message size extended to 4128 bytes

2) ELM327 mode can not be connected by PyOBD

3) ELM327 mode can not read ISO9141 VIN

Customer Feedback:

1. For ELM327 mode, errors can also be read out without problems using ForScan.

2. With Forscan, vehicles can be read without any problems. This adapter is ideal for simple operations such as reading and deleting fault memories.

3. The optical processing is good. The cable is recognized by the laptop.

4. GODIAG J2534 Openport 2.0 Cable is a professional OBD2 diagnostic cable used for vehicle diagnostics and flash chip tuning. Overall, GODIAG's J2534 Openport 2.0 Cable is a professional diagnostic and flash chip tuning tool that provides a fast and reliable connection to a wide range of vehicles and diagnostic tools. It is an excellent choice for mechanics, tuners and professionals who need a powerful and reliable diagnostic solution.

5. The special thing about this adapter is that it only has to be connected to the PC and if the COM port is set to "Auto" in the ForScan settings, it will be recognized directly and can be used. This automatic port detection is really practical and saves time because you don't have to make any settings.

6. The OBD II adapter is tight and makes reliable contact.

7. I tested it on a 2018 Ford Focus and it worked really well here.

8. GODIAG J2534 V2.1 Driver Works Perfectly with ODIS V10.0 on Win10 Pro. The interface is well made and is used to connect the notebook or computer to the vehicle's OBD2 connector via USB.

9. The plug works perfectly and does what it is supposed to do 100%. The data transmission speed is very fast. The cable is long enough and due to its quality you don't have to struggle with cable breaks so quickly. All in all, the device promises longevity. Great value for money.

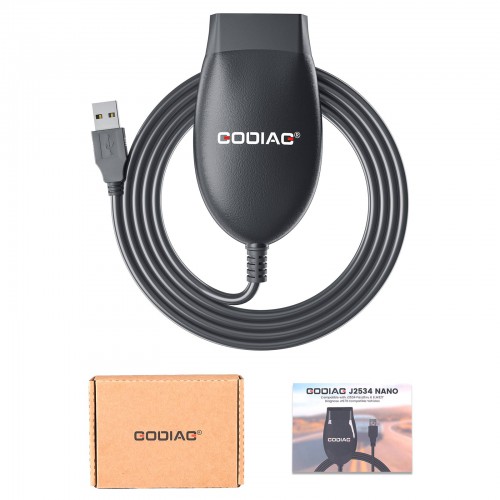

Package Includes:

1pc x GODIAG GD101 J2534
