EU ShipFree ShippingGODIAG GT100 PLUS GPT AUTO TOOL with BMW Test Platform Full Kit for CAS1/ CAS2/ CAS3/ CAS4/ CAS4+ and FEM BDC/ BDC2 BCP/ BDC3 BCP Platforms

GODIAG GT100 PLUS GPT AUTO TOOL with BMW Test Platform Full Kit for CAS1/ CAS2/ CAS3/ CAS4/ CAS4+ and FEM BDC/ BDC2 BCP/ BDC3 BCP Platforms

GODIAG Bundled Package:

GODIAG GT100 PLUS GPT AUTO TOOL + GODIAG BMW CAS1/CAS2 Mech-Key Test Platform + GODIAG BMW CAS2 CAS3 SER Semi Smart Test Platform + CAS4/ CAS4+ Test Platform + BMW FEM BDC Test Platform + GODIAG BDC2/BCP Test Platform + GODIAG for BMW BDC3/BCP Programming Test Platform. Compatible with the BMW key programming devices like Xhorse Key Tool Plus Pad / Xhorse VVDI 2 / BMW VVDI BIM Tool / CGDI BMW / Lonsdor devices / Autel / OBDSTAR etc.

Product Highlights:

1. GODIAG Bundled Package: GODIAG GT100 PLUS GPT AUTO TOOL + GODIAG BMW CAS1/CAS2 Mech-Key Test Platform + GODIAG BMW CAS2 CAS3 SER Semi Smart Test Platform + CAS4/ CAS4+ Test Platform + BMW FEM BDC Test Platform + GODIAG BDC2/BCP Test Platform + GODIAG for BMW BDC3/BCP Programming Test Platform.

2. GODIAG GT100 PLUS GPT is a testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming, and coding. GT100 PLUS has a voltage and current display which is convenient for maintenance engineers to judge the current working status of the ECU .

3. GODIAG BMW CAS1/CAS2 Mech-Key Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS1/CAS2 programming engineers. Please note that this product is only suitable for mechanical keys.

4. GODIAG CAS2 CAS3 SER Semi Smart Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS2/CAS3, CAS3+ CAS3++ programming engineers. This product is suitable for magnetic semi-intelligent or smart keys.

5. GODIAG CAS4/CAS4+ Programming Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4/CAS4+ programming engineers.

6. GODIAG BMW FEM/BDC Test Platform is a dedicated device developed for  BMW locksmiths, maintenance engineers and FEM/BDC programming engineers.

7. GODIAG BDC2/BCP Test Platform is designed exclusively for BMW locksmiths, maintenance engineers, and BDC2 programming specialists. It can be used with devices like BMW dedicated diagnostic equipment C310, ICOM, or GT109, Autel, Launch tablets that support BMW diagnostics.

8. GODIAG for BMW BDC3/BCP Programming Test Platform streamlines  immobilizer system management, key synchronization, and module diagnostics with unmatched reliability. All these powerful functions make it the  ultimate all-in-one solution for professional engineers.

9. Compatible with the BMW key programming devices like Xhorse Key Tool Plus Pad/Xhorse VVDI 2/BMW VVDI BIM Tool/CGDI BMW/Lonsdor devices etc.

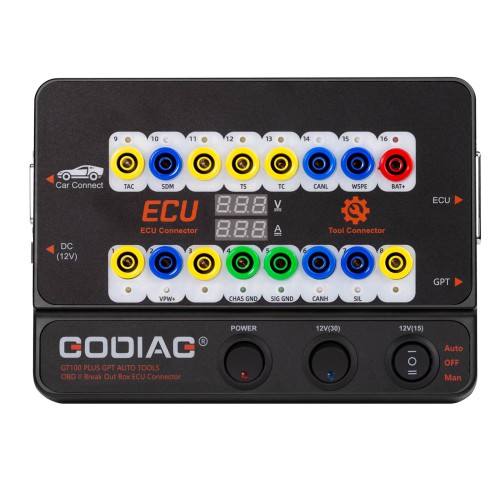

GODIAG GT100 PLUS GPT Auto Tool OBDII Break Out Box ECU Connector

GODIAG GT100 PLUS GPT is a testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming, and coding. GT100 PLUS has a voltage and current display which is convenient for maintenance engineers to judge the current working status of the ECU. It can convert the car OBD2 interface into 16 pins for signal detection. It can be connected to the single modules or multiple modules of the vehicle. It can also be connected with any diagnostic tool to tell whether the car communication is good or not. It supports the  24V to 12V voltage conversion, DOIP-ENET communication and GPT to read and write ECU data. It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on. The product uses CANH and CANL shielded twisted cables , which can resist electromagnetic interference and make communication more stable.

GODIAG GT100 PLUS GPT Highlight:

1. Use GPT to read and write ECU with devices(such as PCMFLASH, KESSV2 ).

2. Check OBDII diagnostic interface Communication Status and Display Voltage.

3. Support DOIP-ENET Diagnostics

Supports DOIP-ENET communication.

Supports diagnostic programming and coding for BMW, Benz, Volkswagen, Audi and other vehicles that support DOIP protocol [no software is provided].

Can be used for diagnostic programming and coding of Land Rover, VOLVO, and Geely vehicles that support DOIP communication [no software is provided].

4. 24V to 12V Voltage Conversion

Converts the 24V voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc. into 12V voltage that can be used by diagnostic equipment.

5. Used to check whether the diagnostic / programming / coding tool can send communication signals.

6. ECU connection: single module connection

GODIAG GT100 PLUS GPT, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

7. GT100 PLUS GPT program key for VW, Porsche, Mitsubishi etc. with all keys lost–  activate the instrument or immobilizer module.

8. GT100 PLUS GPT Pin 1, 9, 3, 11, 12, 13, 8[corresponding to the  yellow banana connector on the machine] – these non-standard OBD2 protocol interfaces may display CAN BUS or K-Line communication protocol. GT100 PLUS GPT will display CANBUS, K-Line, PWM, VPW+, and KWP2000 protocol communication.

9. Quickly communicate with a single ECU on the bench by connecting with the  ECU diagnostic / programming tool. This allows engineers or technicians to  complete the job on the bench, while also keeping away the risk of data loss in other modules when directly testing on the vehicle.

10. Multiple vehicle ECU module connecting– This is aimed at solving the problem of engineers and technicians who need to connect multiple ECUs during module programming, such as connecting to multiple ECU modules for key programming.

11. Replace the auxiliary power supply for the battery – uninterruptible power supply connecting mode– Since there is failure or missing anti-theft remote control data of some vehicles when the battery is disconnected, the auxiliary power supply aims at supplying power to the vehicle through GT100 PLUS GPT before replacing the battery to sustain the power supply to the vehicle. It guarantees the vehicle ECU remains powered during the replacement of the battery.

12. The OBD2 cable of GT100 PLUS GPT is 1.4 meters long– This will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too narrow to connect. Please connect GT100 PLUS GPT first, turn on the power switch and you will see the voltage on the screen which can tell whether the power supply of the vehicle is normal. This also keeps away the risk of burning out the diagnostic & programming tool due to a modified vehicle OBD2 port.

13. For old OBD1 vehicles or special diagnostic ports, please connect GT100 PLUS GPT through the banana plug and DB25 jumper. The OBD1 diagnostic port or special diagnostic port can be transferred to the standard OBD2 diagnostic port.

14. GT100 PLUS GPT will convert the OBD1 port of special trucks to the standard OBD2 diagnostic port according to the protocol.

15. Work with GODIAG CAS1/CAS2 Mech-Key Test Platform.

16. Work with GODIAG CAS2 CAS3 SER Semi Smart Test Platform.

17. Work with BMW-CAS4/CAS4+ Programming Test Platform– it's used to test whether the programmed key works with CAS4 normally.

18. Work with BMW FEM/BDC Programming Test Platform.

19. Work with GODIAG BDC2/BCP Test Platform.

20. Work with GODIAG for BMW BDC3/BCP Programming Test Platform.

21. More connectors and dedicated modules are under development – please stay tuned.

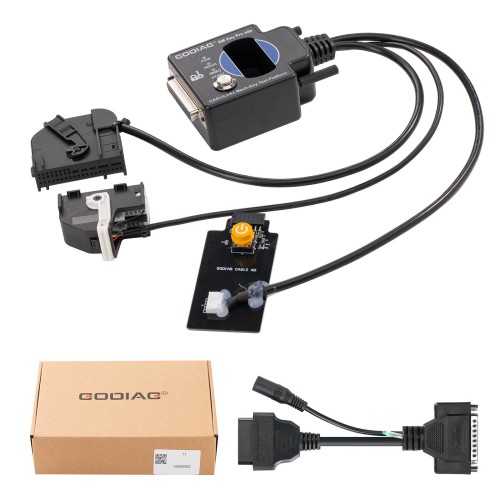

GODIAG CAS1 CAS2 SER BMW Mech-Key Test Platform Functions:

The GODIAG BMW CAS1/CAS2 Mech-Key Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS1 / CAS2 programming engineers. It can cooperate with the key programming devices like  Xhorse Key Tool Plus Pad / Xhorse VVDI 2 / BMW VVDI BIM Tool / CGDI BMW / Lonsdor devices etc., to perform all keys lost matching or key addition operations. Please note that this product is only suitable for mechanical keys.

1. Check if the CAS1/CAS2 module and mechanical keys are synchronized.

2. Cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse VVDI 2 / BMW VVDI BIM Tool / CGDI BMW / Lonsdor devices etc., to perform all keys lost matching or key addition operations.

3. CAS1/CAS2 module diagnostics.

4. CAS1 / CAS2 module programming.

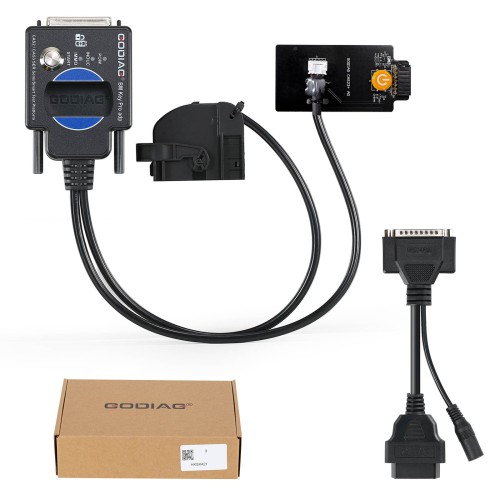

GODIAG CAS2 CAS3 SER Semi Smart Test Platform Features:

The GODIAG CAS2 CAS3 SER Semi Smart Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS2 / CAS3, CAS3+ CAS3++ programming engineers. It can cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse VVDI 2 / BMW VVDI BIM Tool / CGDI BMW / Lonsdor devices etc., to perform all keys lost matching or key addition operations. This product is suitable for magnetic semi-intelligent or smart keys.

1. Check whether CAS2 / CAS3, CAS3+ CAS3++ modules and magnetic semi-intelligent/smart keys are synchronized.

2. Cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse VVDI 2 / BMW VVDI BIM Tool / CGDI BMW / Lonsdor devices etc., to perform all keys lost matching or key addition operations.

3. CAS2 / CAS3, CAS3+ CAS3++ module diagnostics.

4. CAS2 / CAS3, CAS3+ CAS3++ module programming.

⚠️Notice: GODIAG CAS1 CAS2 SER BMW Mech-Key Test Platform and GODIAG CAS2 CAS3 SER Semi Smart Test Platform  cannot support AUTEL or OBDSTAR devices.

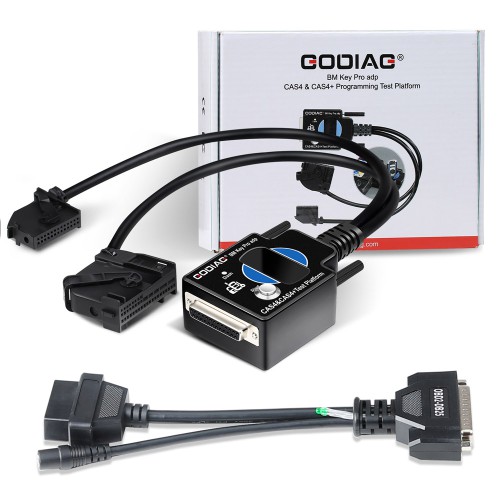

Highlights for GODIAG BMW CAS4 & CAS4+ Test Platform:

1. Special for CAS4 CAS4+ Programming Engineers.

2. Works together with Godiag GT100, CGDI, Xhorse VVDI 2, BMW VVDI BIM Tool, Autel IM608, Yanhua ACDP, Tango etc.

3. Support All Keys Lost, Add New Key, Synchronize Test and Troubleshooting.

4. Easy to use – no PCB required.

5. For BMW CAS car models from 2000-2014.

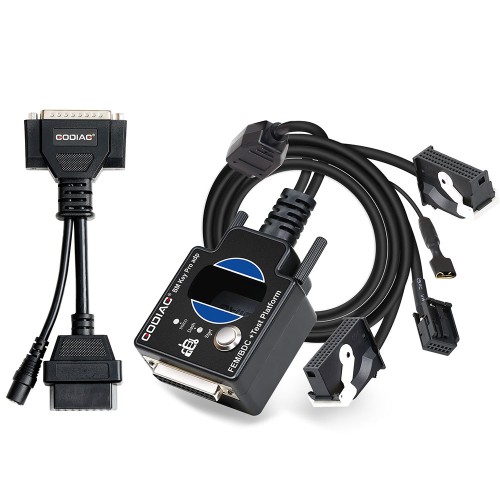

Highlights for GODIAG FEM BDC Test Platform:

When making keys, BMW F-series FEM & BDC all require preprocessing the IMMO box. If there is no test platform, it requires disassembling and installing the control unit in the car back and forth. Using our test platform, everything can be completed on the bench– it's both economical and convenient.

1. Provide locksmiths with the easy and convenient connection for FEM/BDC immobilizer system.

2. Perform the synchronization test for the programmed FEM / BDC and the key.

3. Provide a test environment for the engineers who professionally recycle FEM/BDC.

4. Help automobile maintenance engineers check whether the FEM/BDC and the key are synchronized correctly.

5. Provide professional engineers with connecting FEM BDC modules and instrument.

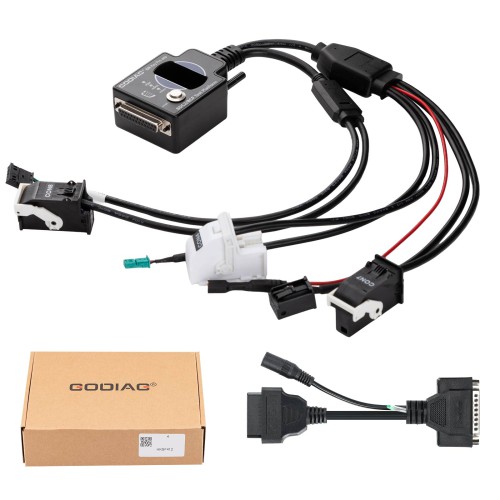

GODIAG BMW BDC2/BCP Test Platform Features:

1. Seamless Integration– Effortlessly connect to BDC2 modules using dedicated OEM fast connectors – no risk of bent pins or unstable communication.

2. Advanced Diagnostics & Synchronization– Test communication, detect malfunctions, and verify synchronization between keys and BDC2 modules before reinstalling them in the vehicle. Perform immobilizer data backup and module replacement with confidence.

3. Help replace BDC2 ECUs efficiently– Diagnose ignition failures by pinpointing mismatches between keys and modules.

4. Business Growth for Professionals– Expand your service offerings by enabling  remote diagnoses. Customers can ship FEM/BDC modules directly to your workshop for  key synchronization and testing.

 5. Robust Build & User-Friendly Design– Features a DB25 connector , simulated ignition switch , immobilizer dashboard indicator, and key sensing area for realistic testing environments. Compact, portable, and ready for workshop or on-site use.

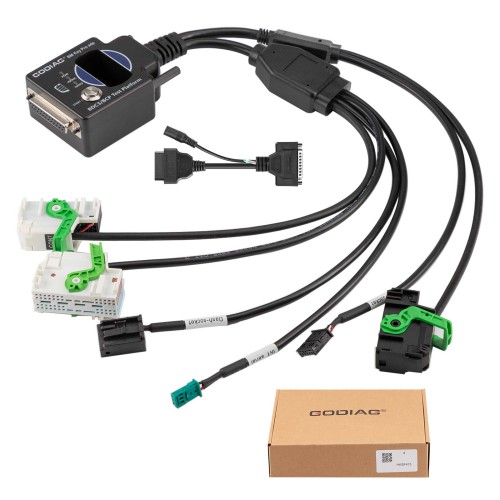

GODIAG BMW BDC3/BCP Test Platform Features:

1. Key & Module Synchronization Detection– Verify seamless synchronization between keys and modules with real-time feedback.

2. Visual and Audio Alerts– Once synchronization is achieved, the IMMO indicator light will illuminate, accompanied by a sound prompt for clear confirmation.

3. Off-Vehicle Diagnostic Programming– Perform module programming and coding off-vehicle, reducing the risk of damage to other car modules during the process.

4. Multi-Protocol Compatibility– Supports ENET and CAN BUS communication for diagnostics, programming, and coding on BDC3 modules.

5. Key Remote Control Function Test– Test key remote control functionality and module synchronization effortlessly.

6. Key Sensor Identification Light– Easily detect key and module identification with the built-in key sensor identification light.

7. Smart Key Recognition– Verify the intelligent synchronization function of the BDC3 module with the key intelligent recognition test.

8. Instrument Diagnostics– Activate instrument lights for streamlined detection and maintenance tasks.

9. Instrument Detection and Maintenance– The platform lights up for instrument detection, making maintenance tasks simpler and more efficient.

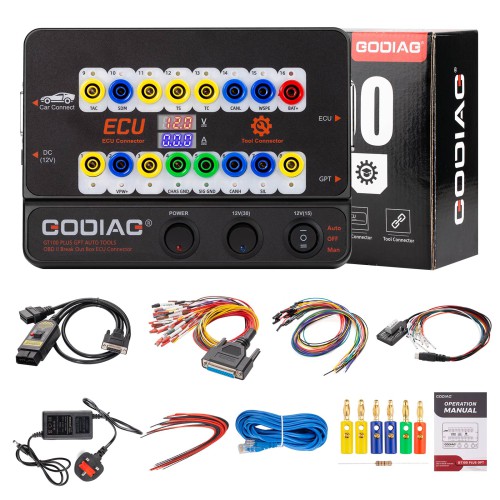

Package Includes:

1 x  GODIAG GT100 PLUS GPT Auto Tool

1 x  GPT connecting cable

1 x  Ethernet cable

1 x  OBD 2-in-1 extension cable

1 x  Colored jumper cable

1 x  12V power supply

1 x  120Ω resistor

6 x  Banana plugs

24 x  Dupont 2.54mm female pin connectors(wire accessories)

1 x  Manual

1 x  GODIAG BMW CAS1/CAS2 Mech-Key Test Platform

1 x  OBD2 to DB25 Cable

1 x  GODIAG CAS2 CAS3 SER Semi Smart Test Platform

1 x  OBD2 to DB25 Cable

1 x  GODIAG Test Platform For BMW CAS4 / CAS4+ Programming

1 x  GODIAG OBD2 to DB25 Cable

1 x  GODIAG For BMW FEM/BDC Programming Test Platform

1 x  GODIAG OBD2 to DB25 Cable

1 x  GODIAG For BMW BDC2/BCP Programming Test Platform

1 x  GODIAG For BMW BDC3/BCP Programming Test Platform
