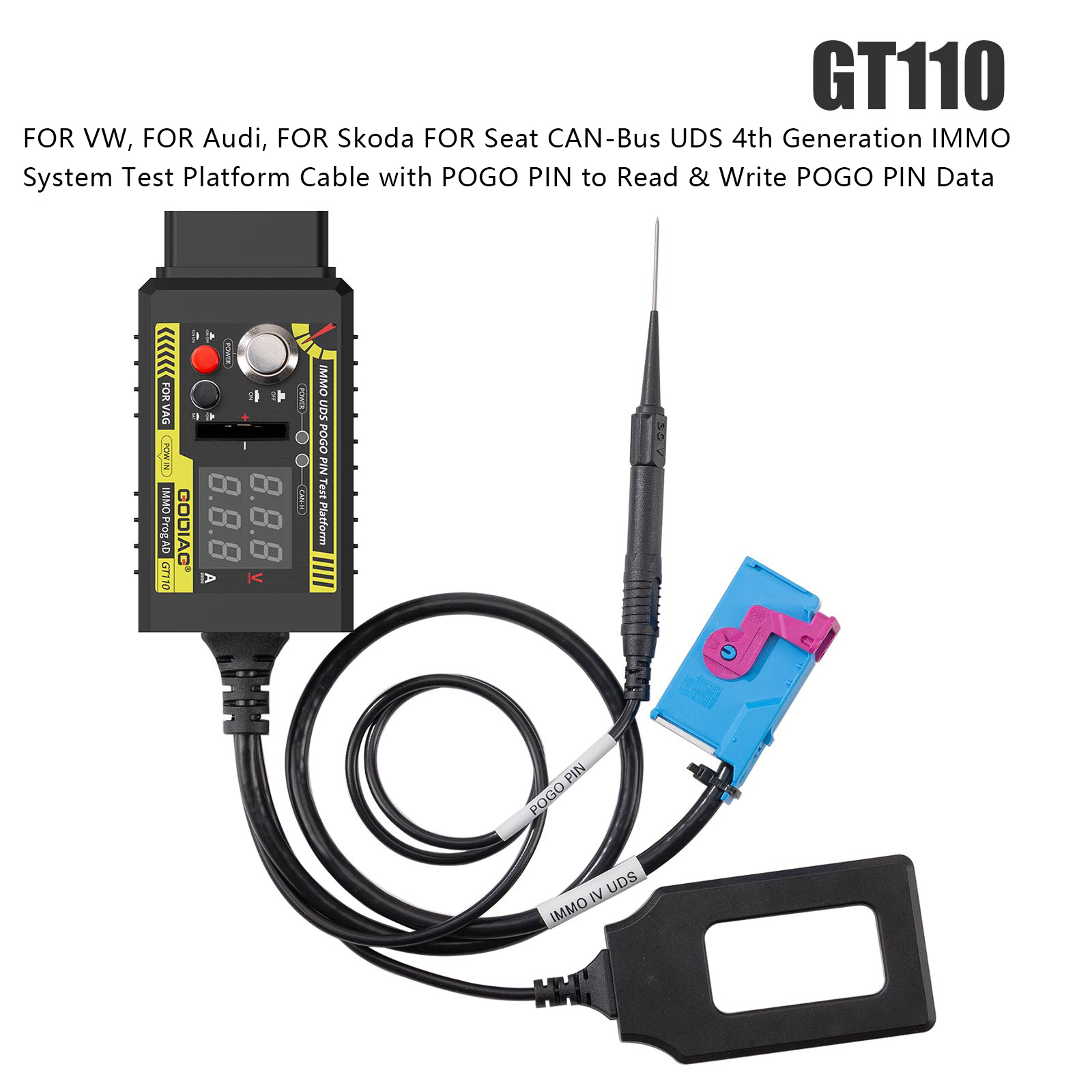

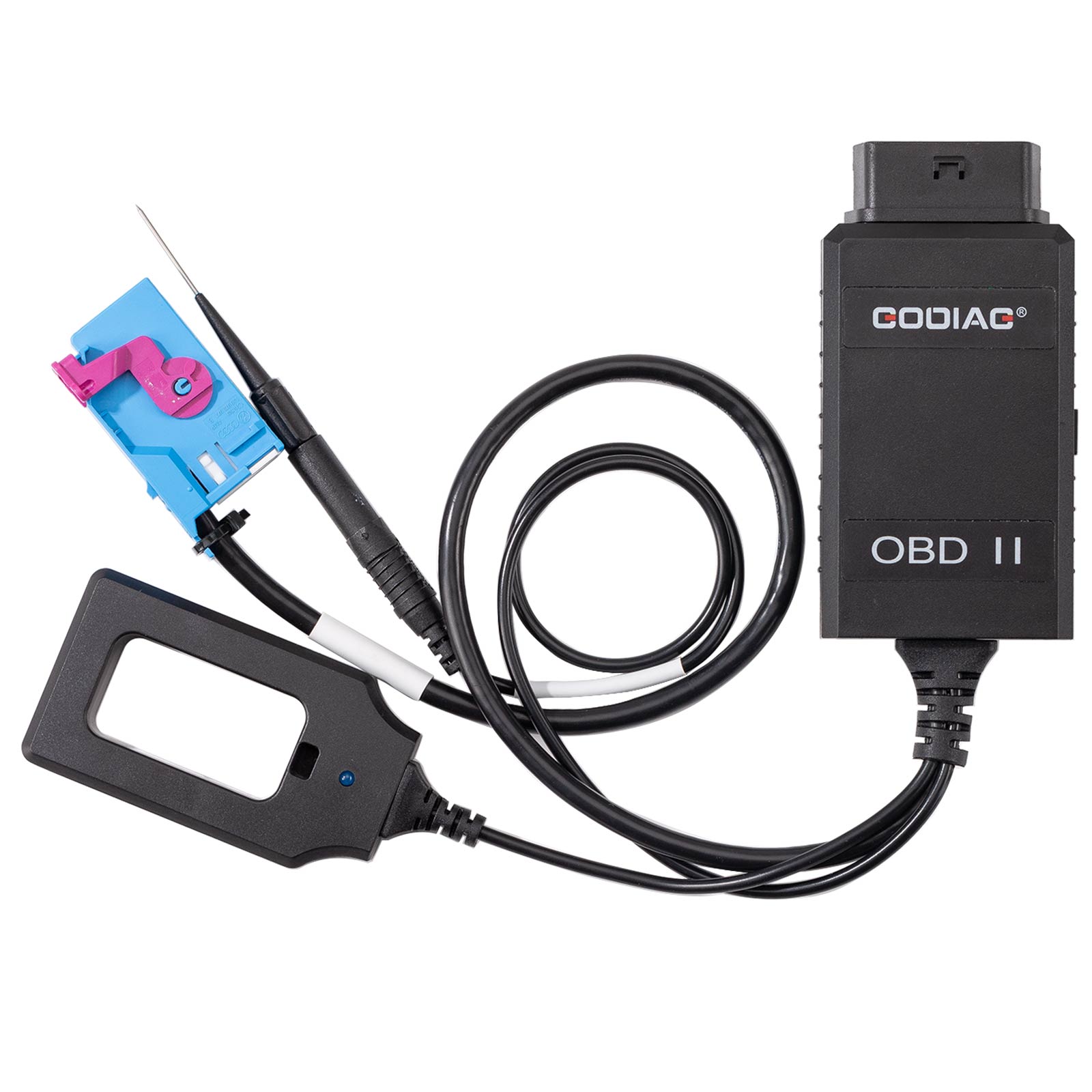

EU ShipFree ShippingGT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data

GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable supports VW, Skoda, Seat, and Audi models, and performs offline POGO PIN data reading and writing.

It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.

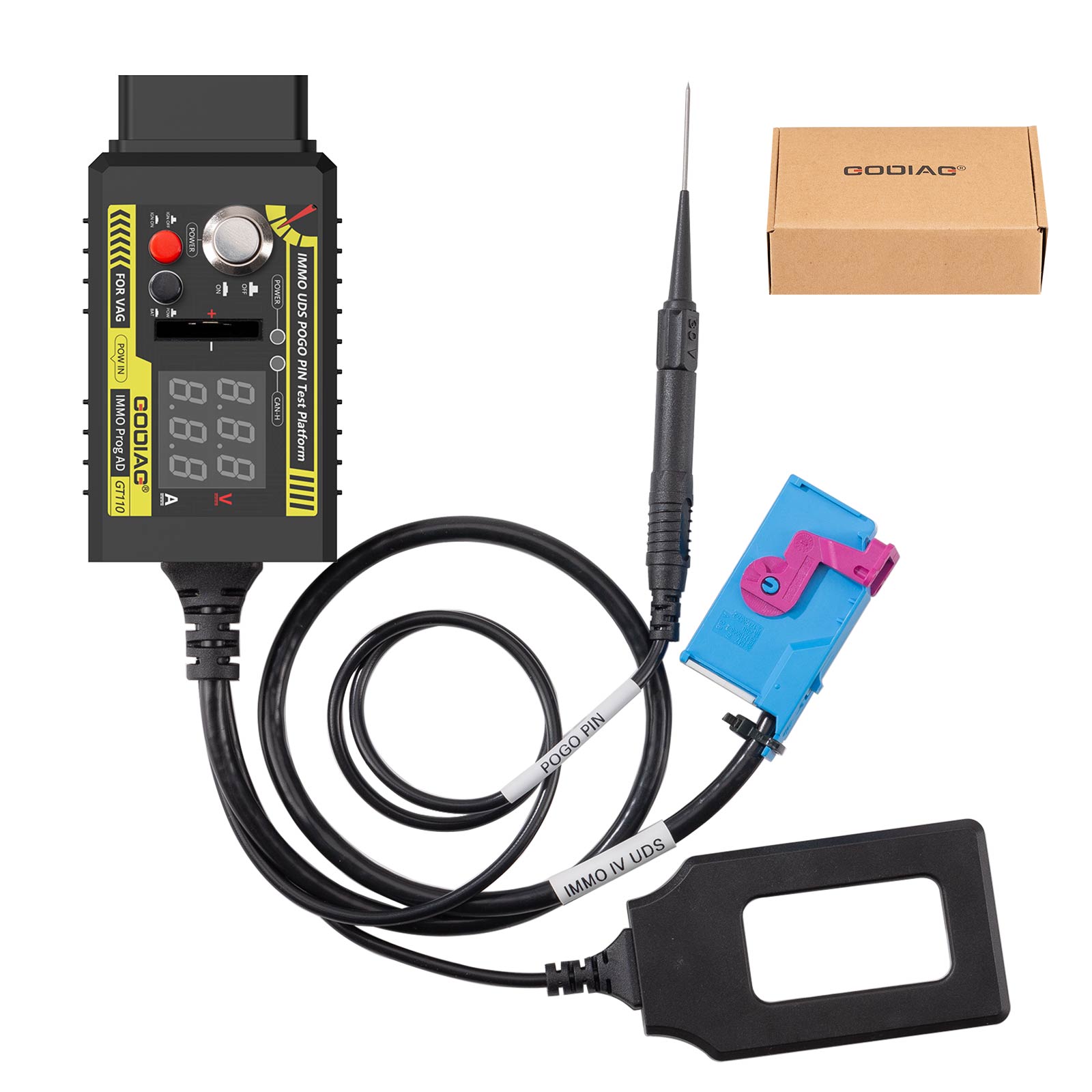

GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data

GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable supports VW Skoda Seat and other models, and performs offline POGO PIN data reading and writing.

It is for dashboard key programming (including Boot Probe) of all UDS systems of Volkswagen, Skoda, and Seat.

The product can display the current working voltage and current, has a power switch, a simulation ignition switch, and a buzzer to prompt the ignition start and shut down. It supports CANH UDS communication indication, CR2032 remote key battery detection, key and IMMO instrument synchronization test, intelligent IMMO system emergency start area induction detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching, and other functions.

It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, AUTEL, and others.

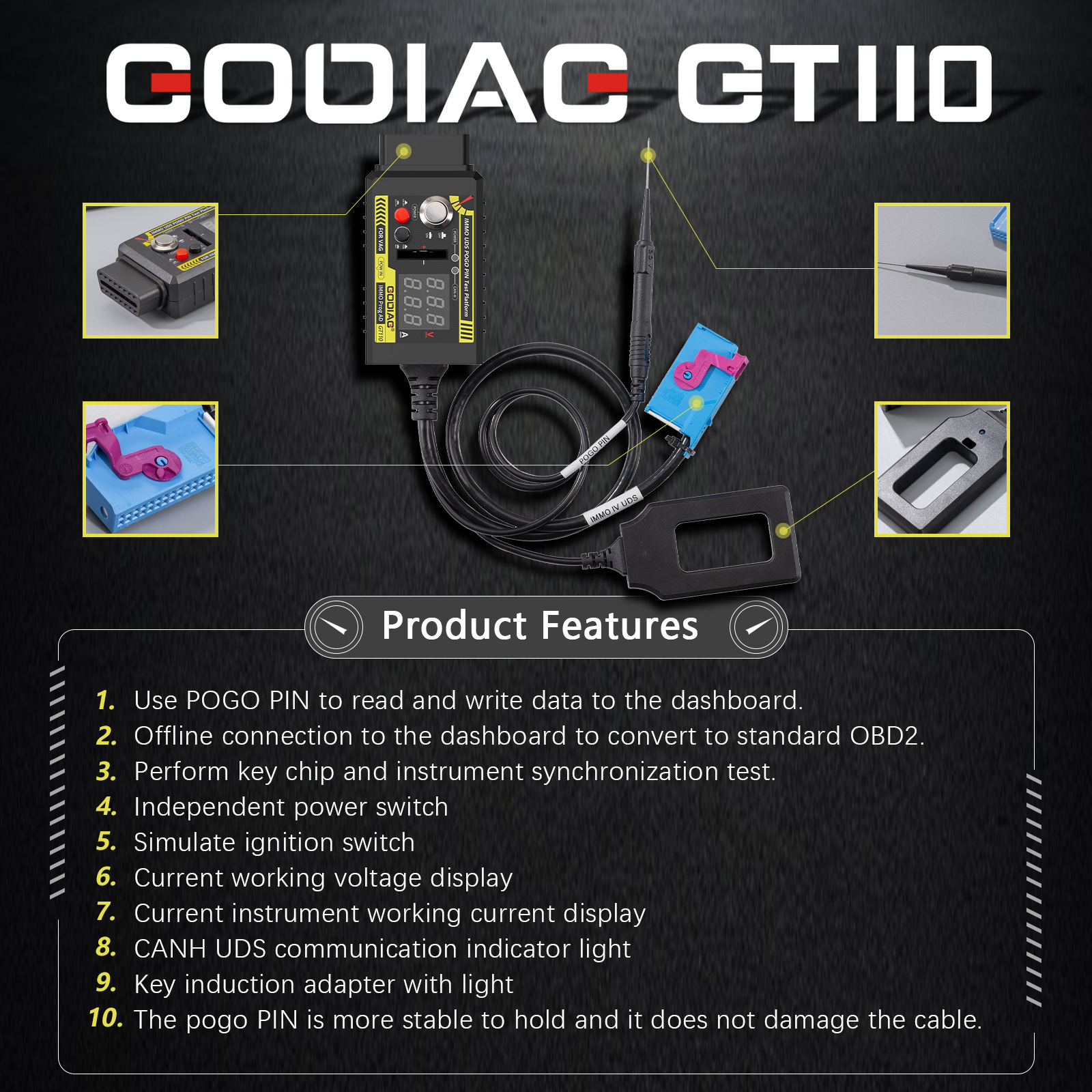

GODIAG GT110 Functions:

1. Use POGO PIN to read and write data to the dashboard.

2. Offline connection to the dashboard to convert to standard OBD2.

3. Perform key chip and instrument synchronization test.

4. Independent power switch.

5. Simulate ignition switch.

6. Current working voltage display.

7. CR2032 remote key battery detection.

8. Current instrument working current display.

9. CANH UDS communication indicator light.

10. Key induction adapter with light.

11. The POGO PIN is more stable to hold and it does not damage the cable.

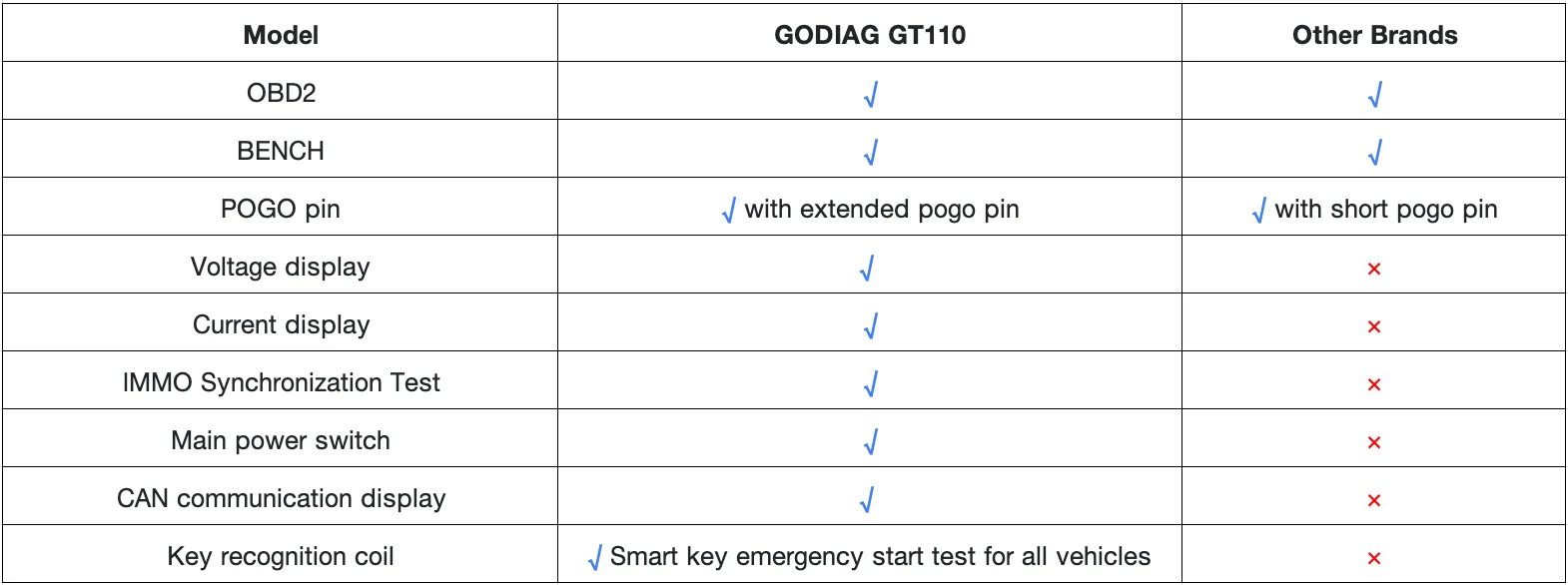

GODIAG GT110 vs Other Brands

POGO PIN Usage Steps:

1. Connect the power supply (Note: the power switch must be off).

2. Press the IGN ignition power (the IGN ignition switch must be turned on).

3. Connect the instrument plug.

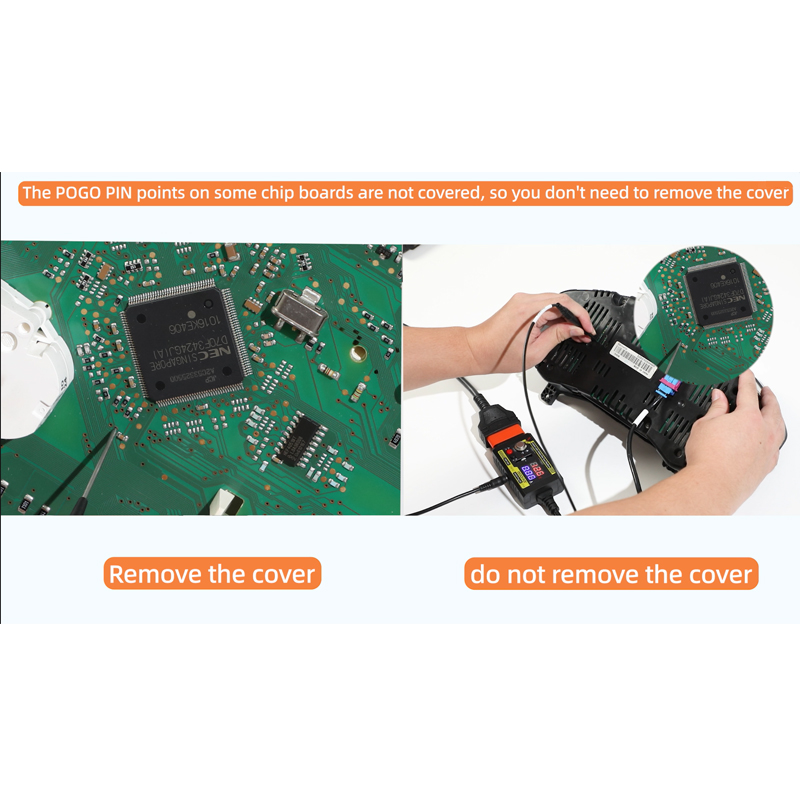

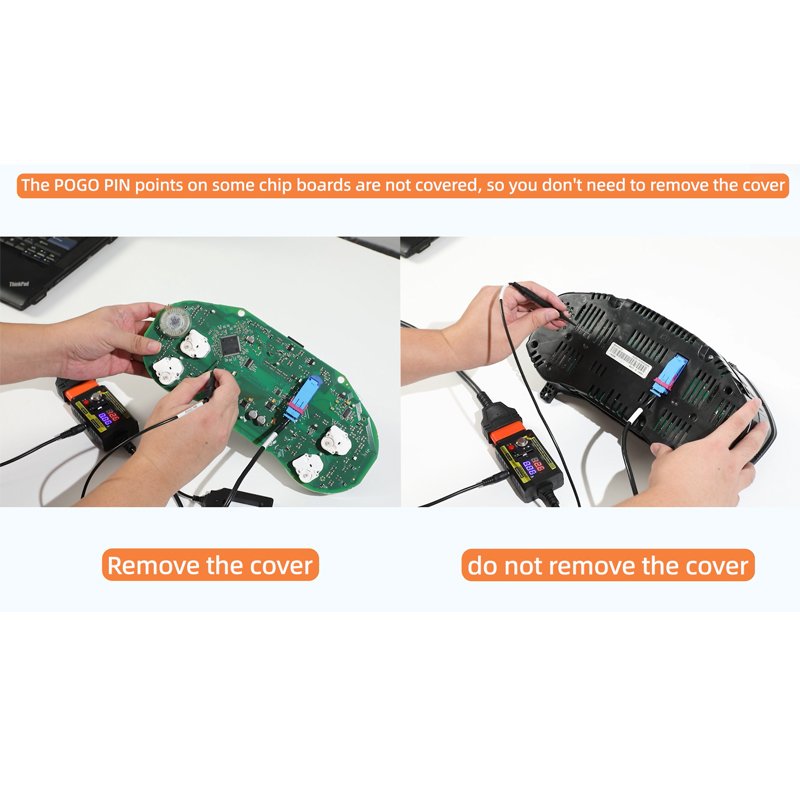

4. Find the POGO PIN connection point of the corresponding instrument and connect it with a probe.

5. Turn on the power switch for about 3-5 seconds. As long as the instrument ABS light is flashing, it means that the POGO PIN read and write mode has been entered.

Intelligent IMMO System Emergency Start Area Induction Detection:

Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. In the event of a smart key with a dead battery, simply place it within this sensing area to start the vehicle normally.

GODIAG GT110 vs Other Pogo Pin cables:

• Add simulated ignition switch
• Adds CAN H indicator light
• Pogo PIN does not break, more stable to hold
• Add voltage and current display
• Add button battery CR2032 testing
• Add key and instrument sync detection
• Add emergency starts sensing area recognition

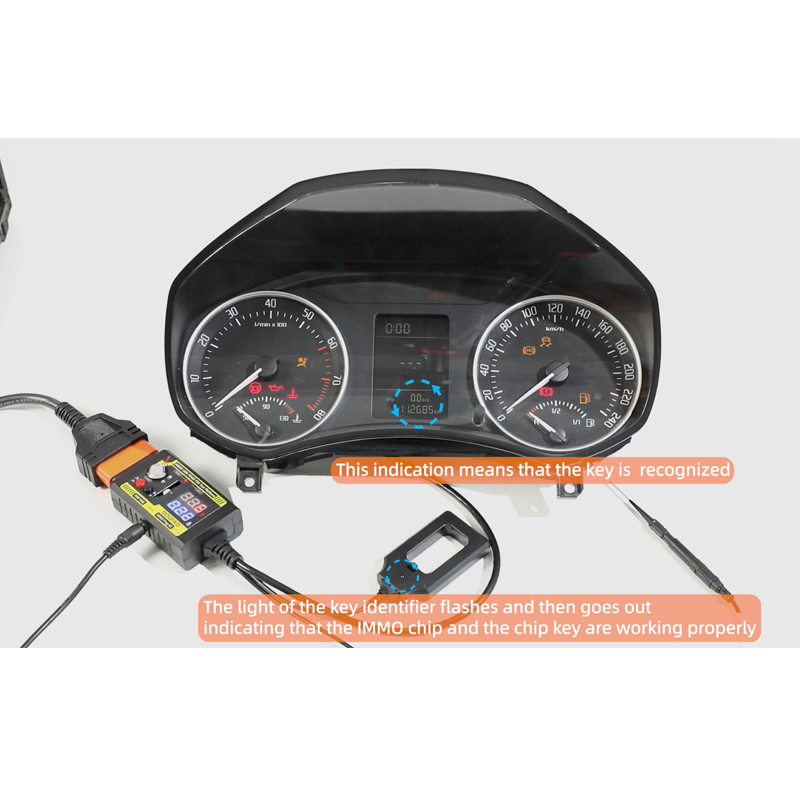

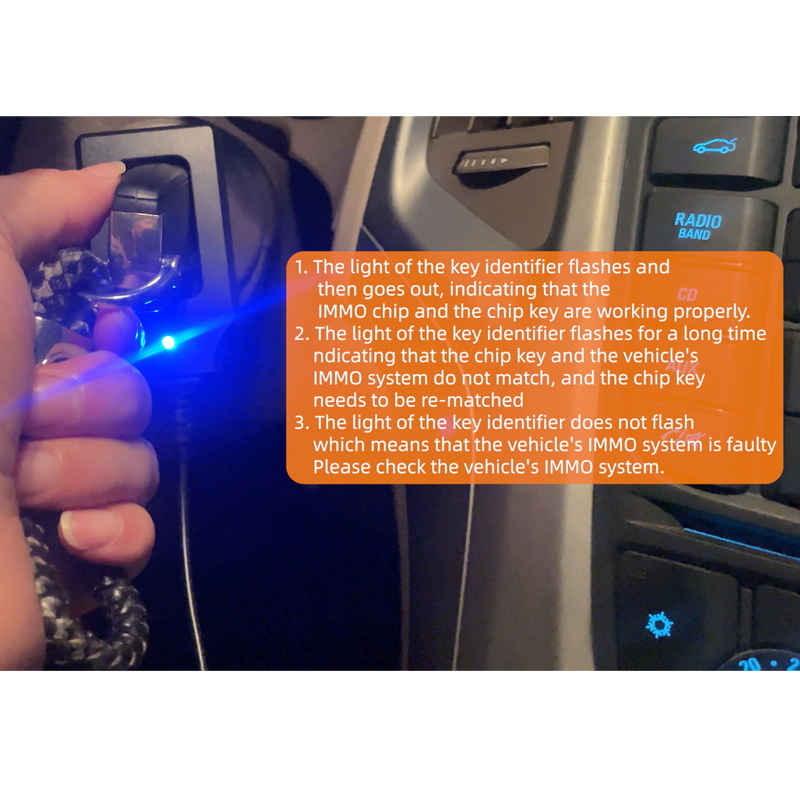

Car IMMO Start and Start Key Chip Detection:

Test Result Analysis:

1. Light flashes briefly and turns off → The IMMO chip and key chip are functioning correctly.

2. Light continues to flash → The key chip is not correctly matched with the vehicle's IMMO system. Reprogramming is required.

3. Light does not flash → A fault is present in the vehicle's IMMO system. Please inspect the system for issues.

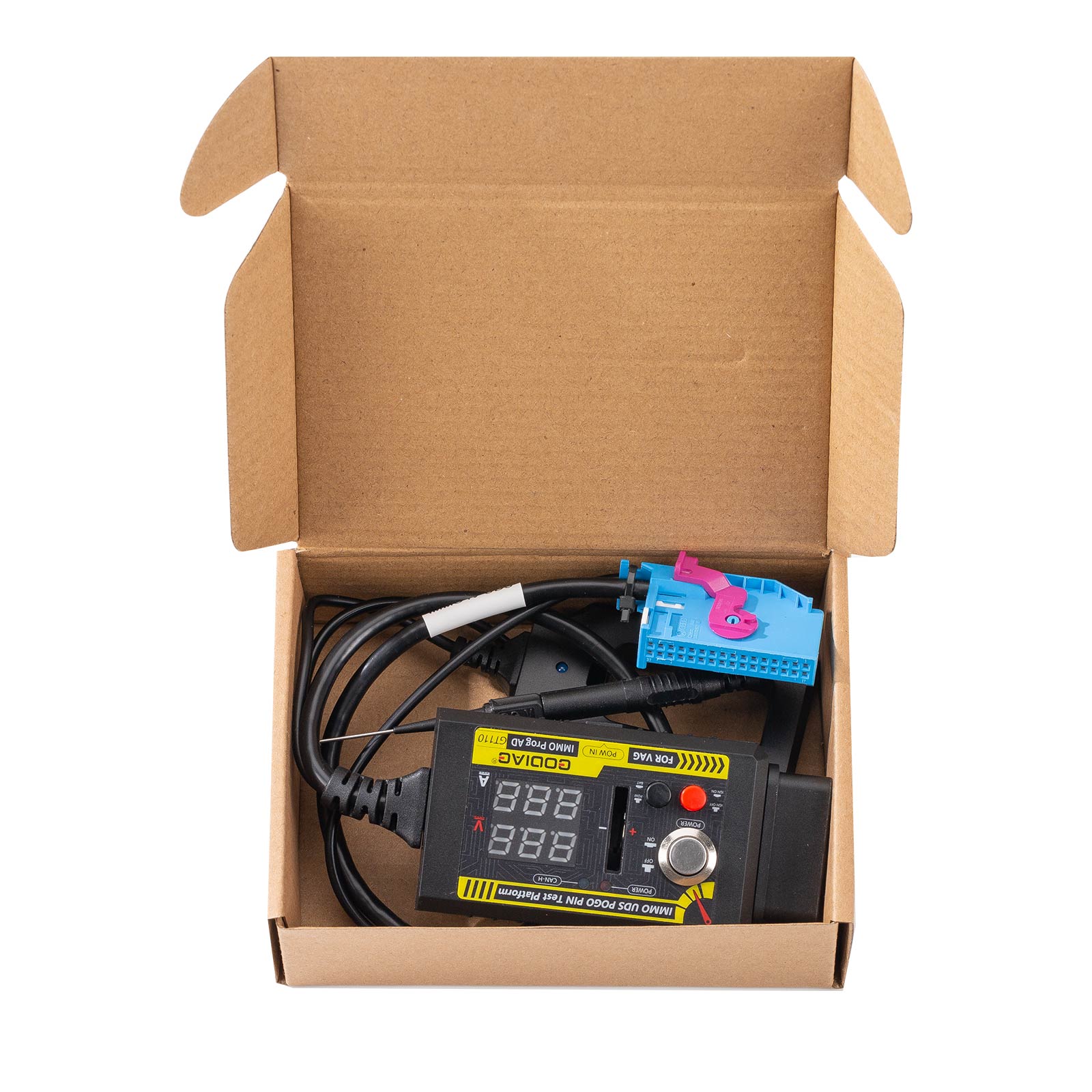

Package Includes:

1 x GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
