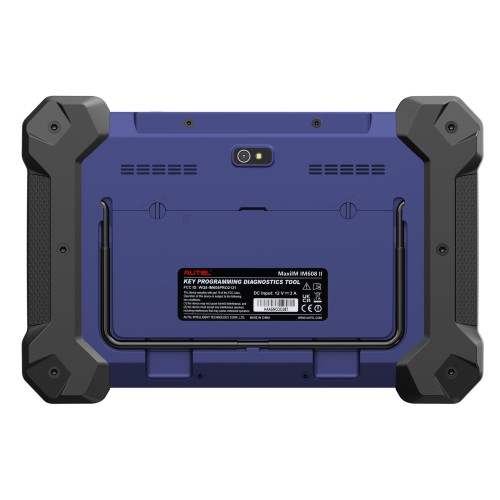

Autel MaxiIM IM608 PRO II (IM608S II/ IM608 II) All-In-One Key Programming Tool Support All Key Lost Upgraded Version of Autel IM608 PRO

Autel MaxiIM IM608 PRO II (IM608S II/ IM608 II) All-In-One Key Programming Tool Support All Key Lost Upgraded Version of Autel IM608 PRO

Autel IM608 PRO II (Autel IM608S II) is the upgraded version of IM608 PRO. Featuring the powerful Qualcomm SDM660 Octa-core Processor and a 10.1-inch LCD capacitive touchscreen, it runs on the Android 10.0 multitasking operating system. It is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet.

Autel IM608 II is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

Note: MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner's permission using the key.

Product Highlights:

No Area Restrictions – You can use it all around the world without limitation.

Upgraded Version of Autel IM608 and IM608 PRO – With the latest powerful hardware configuration.

One Year Free Update Online.

Smart Mode and Expert Mode – Solution in one tool for easy operation.

Works for 85% of cars worldwide, including BMW, BENZ, VW, AUDI, etc. – Making your work simple and easier. Best choice for locksmith and workshop.

Support Multi-Language – Both diagnostic software and IMMO software support multi-language. (The default language is English; the language can be changed into German, Swedish, Italian, Portuguese, French, etc.)

Extended to Work with Autel MV108/ MV105 – Allowing you to examine difficult-to-reach areas that are normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.

Main Features of Autel IM608 II:

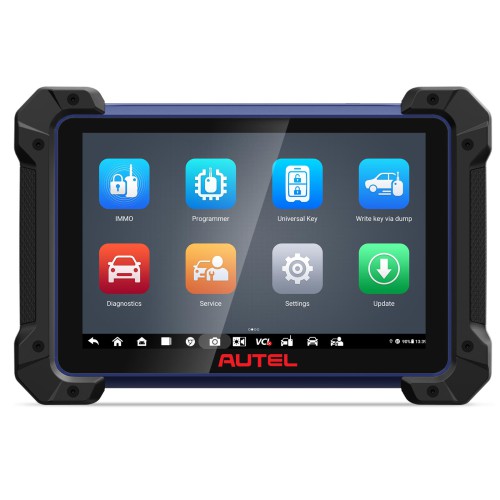

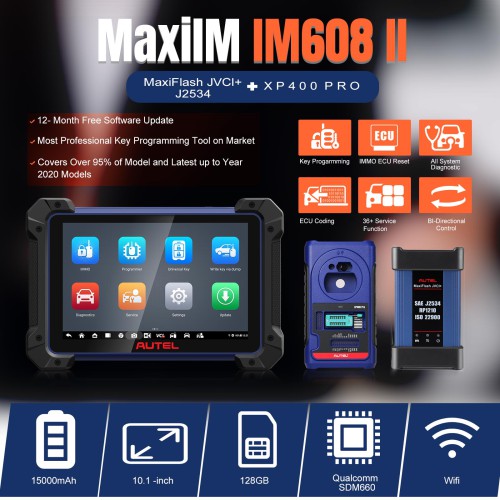

IMMO & Key Programming Bundle – MaxiIM IM608 II 10.1-inch Android Touchscreen Tablet.

Program IMMO & Keys for U.S., Asian, and European Vehicles.

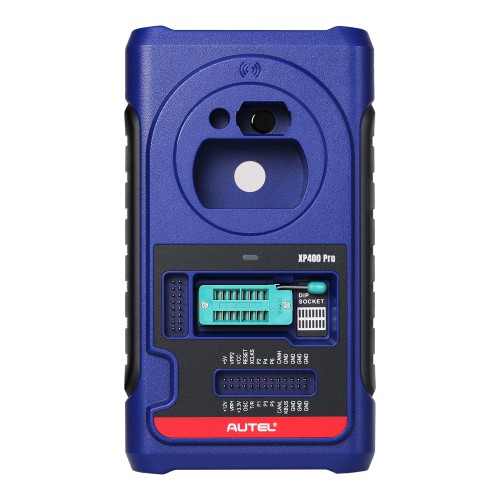

XP400 Pro Key and Chip Programmer.

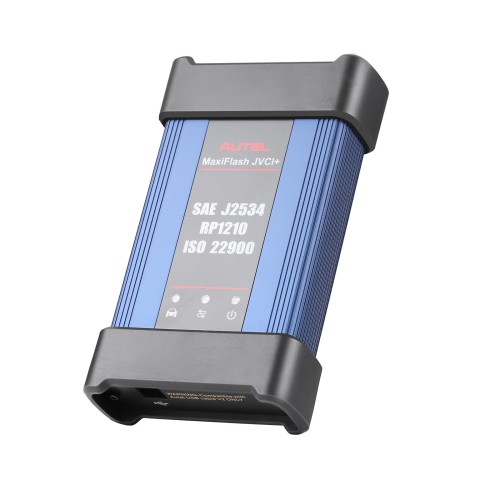

JVCI Wireless J2534 Pass-Thru Programming Device.

Bi-directional Control/ Active Tests.

AUTEL IM608 II Supported Functions:

1. IMMO Functions:

Auto Detect Make/Model/Year/System.

Read PIN (All Key Lost).

Key Learning.

IMMO ECU Reset/Adaption.

IMMO ECU Refresh/Coding.

Remote Learning.

AUDI Q5/A4/A5 2015-2017 Key Learning.

VW MQB Key Learning.

BMW FEM/BDC Key Learning and Adaption.

BMW CAS4 Key Learning and Adaption.

Mercedes Key Learning 2015-2018.

Land Rover & Jaguar write key via dump.

Volvo Smart Key Learning/knob-style smart key.

Advanced Programming Functions:

EEPROM Read/Write.

MCU Read/Write.

Key Programming.

Mercedes Key Read/Write.

Remote Frequency Detect.

OE-Level Diagnoses.

2. All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)):

Oil Service Reset.

Parking Brake Pad Relearn After Replacement.

Steering Angle Sensor Relearn.

Battery Registration and Reset.

Diesel Particulate Filter Regeneration.

Tire Pressure Monitoring System.

Active Test.

ECU Coding.

VW/Audi Component Protection.

Complete Service Functions.

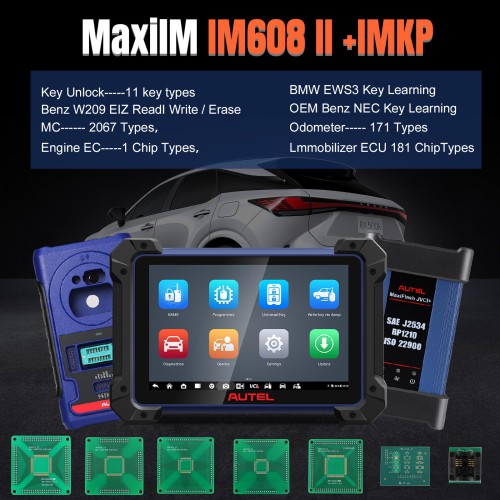

XP400 Pro adds support for the following Chips:

EEPROM → AMD → AM29FXXX series chip.

EEPROM → FUJITSU → MB29FXXX series chip.

EEPROM → ST → M29FXXX series chip.

Engine control module → SIMTEC76 (AM29F800BB) write.

IMMO → BENZ → ESL_W209_W906 (Motorola) read/write/erase function.

IMMO → BMW → EWS3 module read/write function.

REMOTE_RENEW (renew key) → NEC → V51 and V5 chip read/write/erase.

XP400 Pro adds support for the following adapter boards:

APB113 PCF79XX adapter board.

APB114 EWS3 adapter board.

APB115 NEC Adapter board.

APB118 NEC ELV adapter board.

APB119 TB28FXXX adapter board.

APB120 TMS370 adapter board.

APB121 AM29FXXX adapter board.

APB122 AM29FXXX adapter board 1.

APB123 AM29FXXX adapter board 2.

APB126 M35080/D80 adapter board.

APB127 MC68HC0(7)05BXX adapter board.

APB128 MC68HC05X32 adapter board.

Advanced Key Programming Functions:

Exclusive Smart Mode to guide Key Programming.

Auto Read IMMO Data via OBD.

One-tap Key Programming via OBD & Easy-to-use Remote Programming.

With the newly upgraded key programmer XP400 Pro.

Extensive Vehicle & Functionality Coverage:

Support Diagnostics & IMMO Programming for 10,000+ Models.

Support Models Up to 2020.

All System Diagnostics and Advanced Maintenance Services.

Benz – 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD.

BMW – Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost.

Volkswagen / Audi – Add Key / All Key Lost via OBD for 2013-2020 Models.

GM – Read IMMO Password, Add Key / All Key Lost up to 2020.

Mazda – Add Key / All Key Lost (No PIN Needed) up to 2020.

FCA – Read IMMO Password, Add Key / All Key Lost up to 2020.

Renault – Add Key / All Key Lost (No PIN Needed) up to 2020.

Jaguar LandRover – Add Key / All Key Lost up to 2019.

Volvo – Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump.

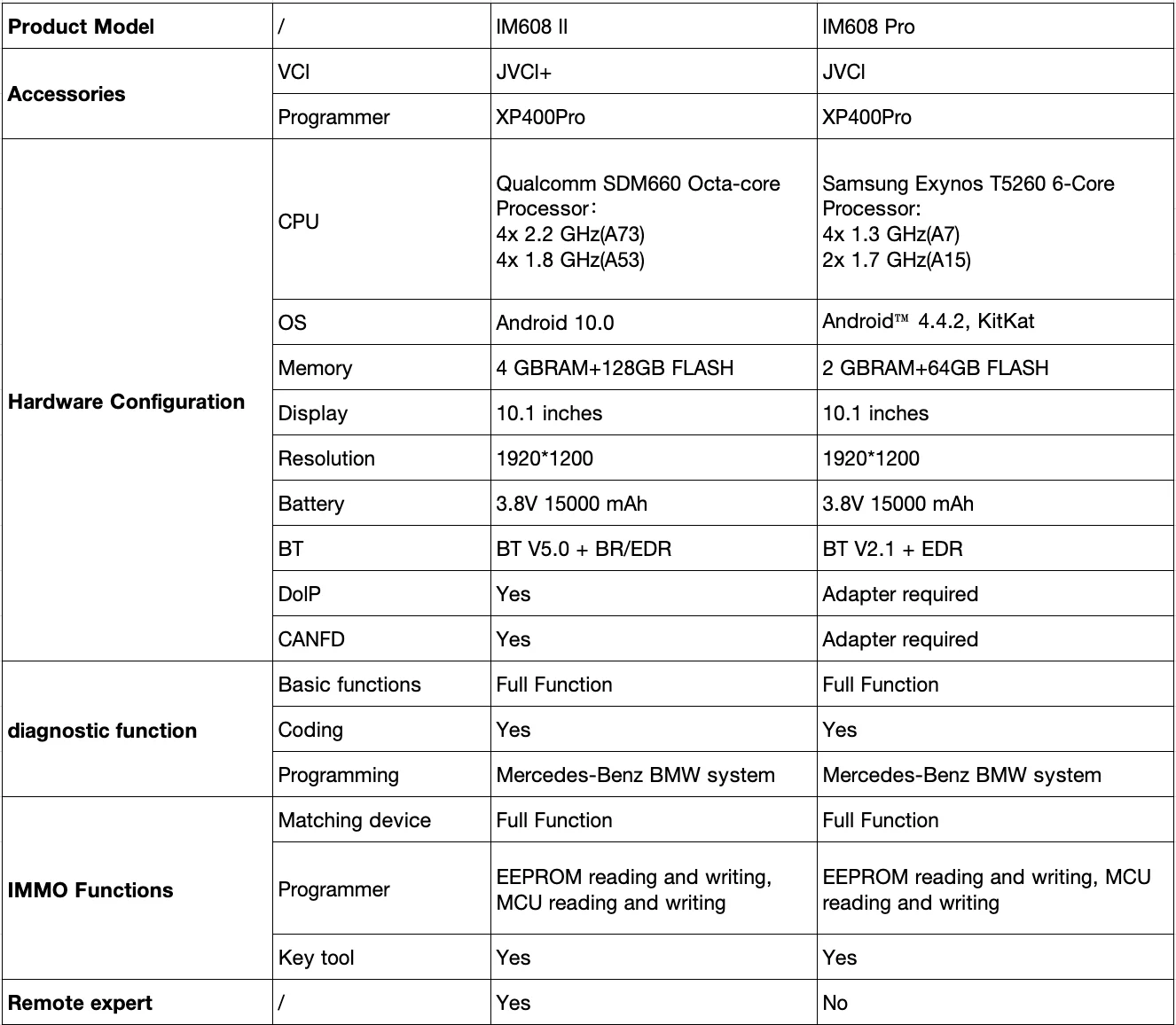

Product Comparison Between Autel IM608 II and IM608 Pro

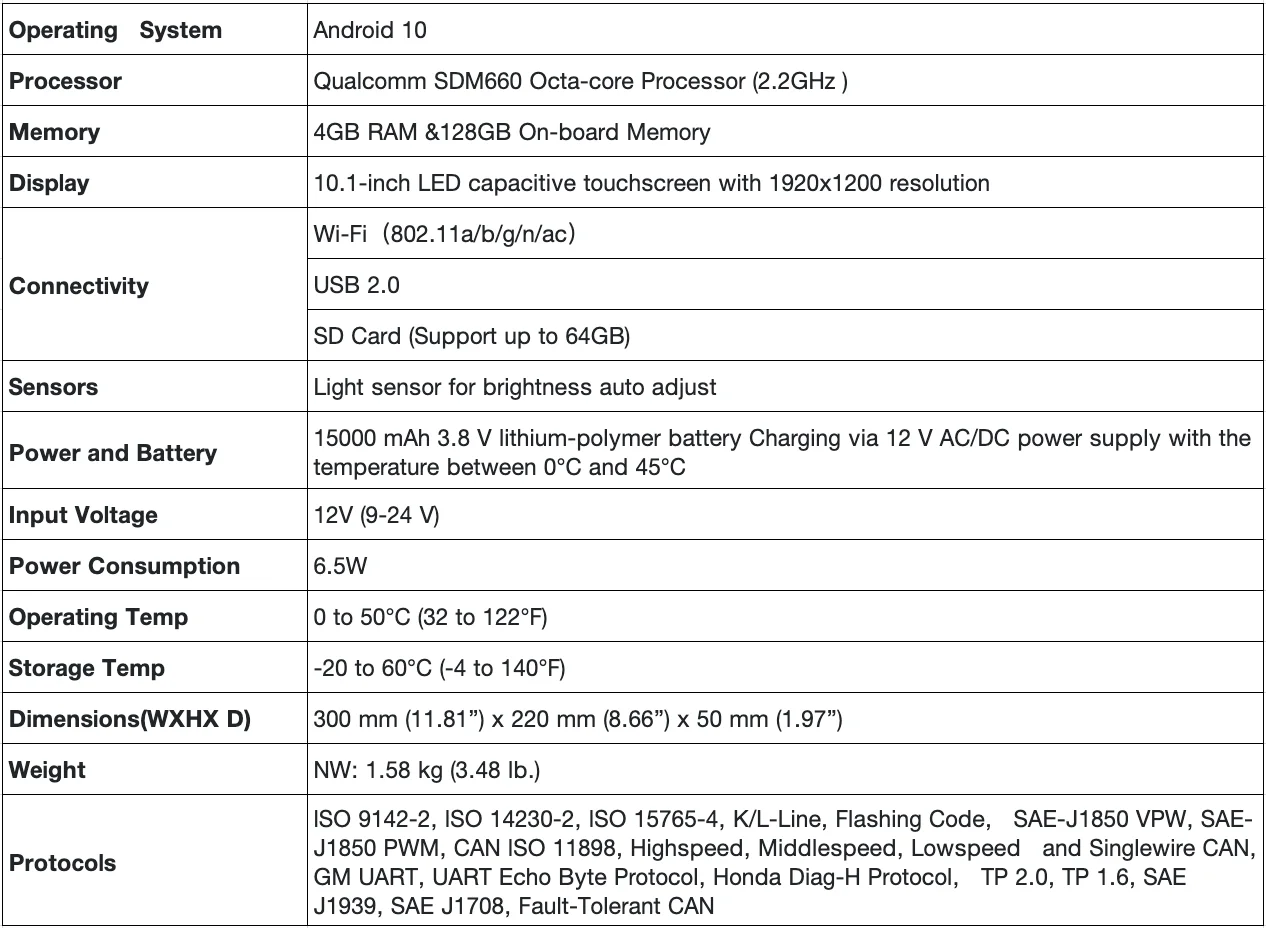

Product Specifications:

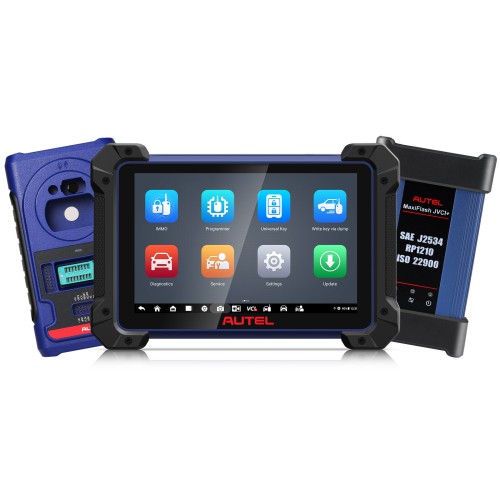

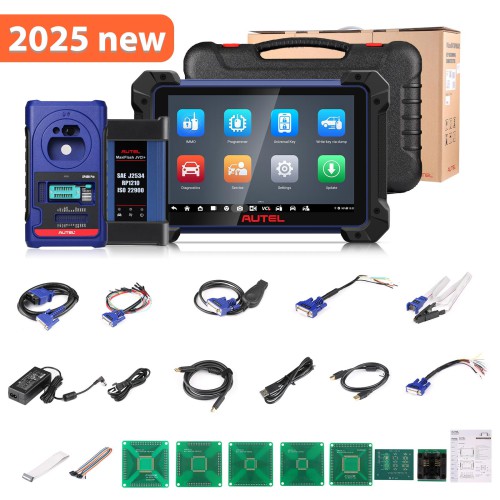

Package Includes:

1pc x IM608 II Tablet.

1pc x XP400 Pro Key Programmer.

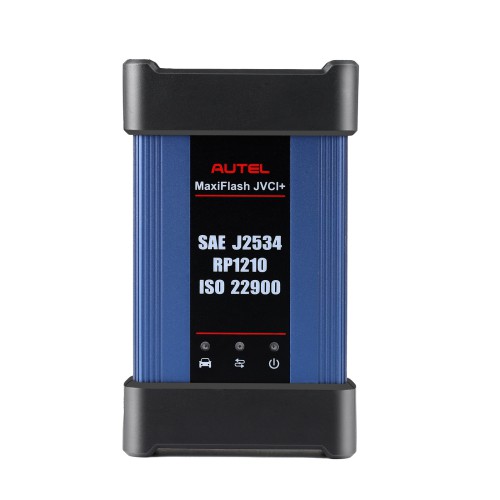

1pc x JVCI+ ECU Reprogrammer.

1pc x Main Cable.

1pc x USB Cable.

1pc x Type-C cable.

1pc x Connect Cable.

1pc x AC/DC Adapter (12V).

1pc x APA002 (EEPROM Socket).

1pc x APA101 (Signal Cable).

1pc x APA103 (EEPROM Clamp).

1pc x APA107 (ECU Cable).

1pc x APA108 (MCU Cable).

1pc x APA109 (MC9S12 Cable).

1pc x APB104 (MCU_FQFP64).

1pc x APB105 (MCU_FQFP80).

1pc x APB106 (MCU_FQFP112).

1pc x APB107 (MCU_FQFP144).

1pc x APB108 (MCU_FQFP176).

1pc x APB125 (Mercedes Infrared Collector).

1pc x APB129 (EEPROM Adapter).

1pc x APC101 (USB Cable).

1pc x Packing List.

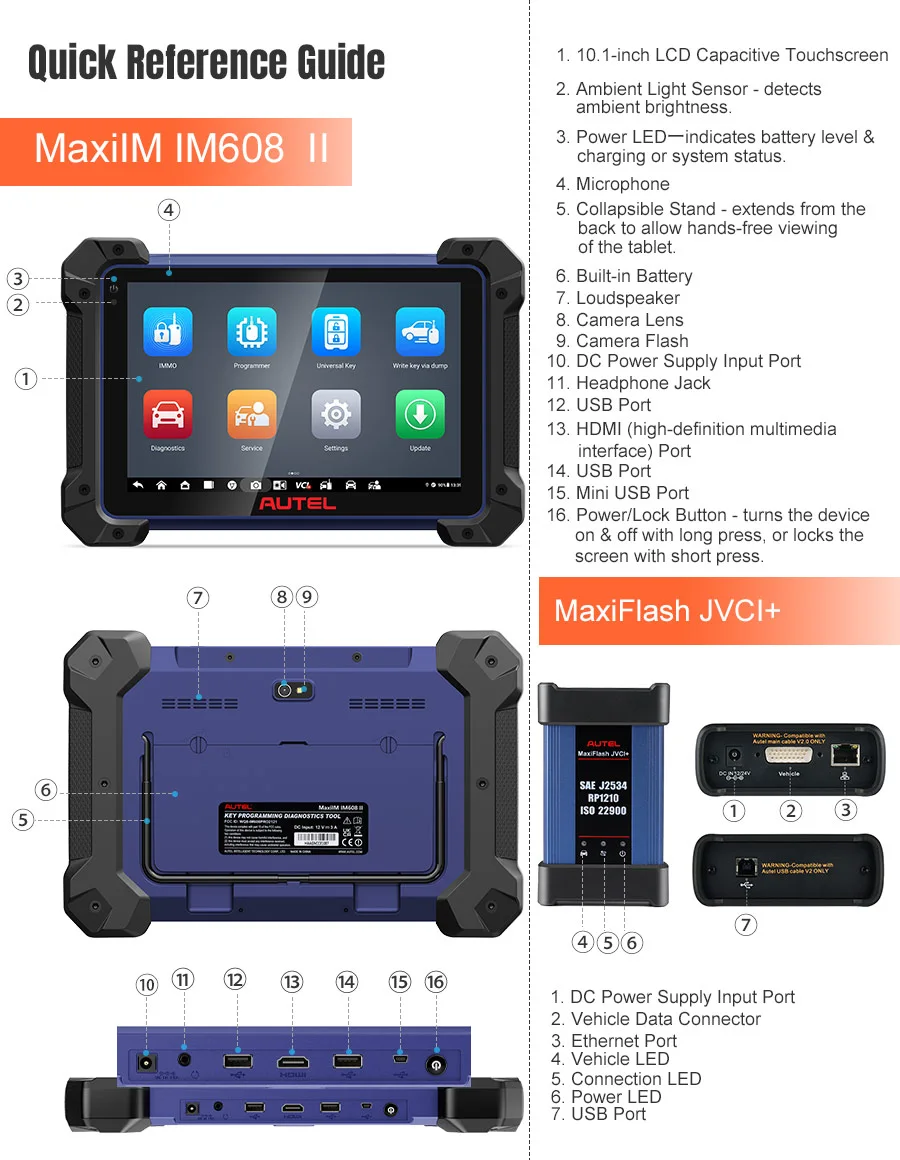

1pc x Quick reference guide

1pc x Carry Case
