KEYDIY KD X4 5-in-1 Device for Key Recognition,Generation,Copying,Programming,Matching Remote Control Simulation, Key-less Simulation

KEYDIY KD-X4 5-in-1 Device for Key Recognition, Generation, Copying, Programming, Matching Remote Control Simulation, Key-less Simulation

KD-X4 is a professional device that integrates recognition, generation, copying, programming, and matching. It can be operated independently, or connected to tablets, mobile phones, and PC software in multiple free modes.

KEYDIY KD-X4 Highlights:

Supported Chip Types: T5, 4D, 4C, 8A, 46, 47, 48, 49, 4A

Supported Languages: Arabic, Korean, German, Spanish, English, Chinese, and 19 others

Adding BMW BDC03 Keys Soon

Support MQB All Key Lost

Work together with BM(G)-BDC2-Adapter to support BMW G platform programming

Support 19 common languages in the world

KD-X4 will upgrade for adding BMW BDC03 keys soon. No need access to the vehicle, just disassembly and reading of the original key for the addition.

KEYDIY X4 Introduction:

KD-X4 is a locksmith professional device that integrates recognition, generation, copying, programming, and matching. It can be operated independently, or connected to tablets, mobile phones, and PC software in multiple free modes. Locksmiths can choose the mode of operation that suits their own usage habits. Exclusive priority release of some industry-leading features.

The device supports frequency detection (supporting 2.4G), remote control generation, remote control simulation, key-less remote simulation, remote control copying, chip recognition/copying, chip generation, chip acquisition, key unlocking, IMMO programming, programmer reading and writing data, online upgrading, and other functions. It has become a professional device with simple operation, stable performance, and wide coverage of car models.

Functions of the KD-X4 Locksmith Device:

Remote Generation

• Supports the generation of over 5,600 remote control programs.
• Includes 2019+ Toyota Rollin-Code bypass cable and MQB key programming.

Remote Copying

• Enables copying remote controls for over 50 car models.

Key Simulation

• Offers remote control and smart key simulation capabilities.

Frequency Detection

• Detects frequencies including 315M, 433M, 467M, 868M, 902M, and 2.4G.

Anti-Theft Chip Recognition

• Supports recognition of various chip types, such as MLB, 5C, 46, 47, 48, MOB48, 4D, 4C, 8A, 6A, 4A, 8E, 8C, 13, 11, 12, 7935X, 49, 33/40-44 AUDI5, ID card, IC card, and more.

Specialized Chip Generation

• Generates specific chips including Toyota G, NB multifunctional specialized chips, 30/40-44, 48, 4D/4C, Toyota 8A/H, and 46 specialized chips.

Chip Acquisition

• Provides multiple acquisition methods, such as device, antenna, and external acquisition.
• Supports data acquisition for 46, BYD all-key-lost, 48, OBD 48, and other chip types.

Key Unlocking

• Unlocks keys for 36 different brands.
• Battery Voltage Detection
• Tests 3V remote key battery voltage.

Key Leakage Detection

• Identifies leakage in 3V remote control keys.

Second-Hand Remote Programming Without Unlocking

• Programs used keys (Toyota/Lexus 8A-AA, BA, 4A type) without unlocking.

IMMO Programming

• Supports immobilizer programming for 51 brands, with regular updates for additional models.

Programmer Function

• Reads IMMO data for Volkswagen Audi MQB models.

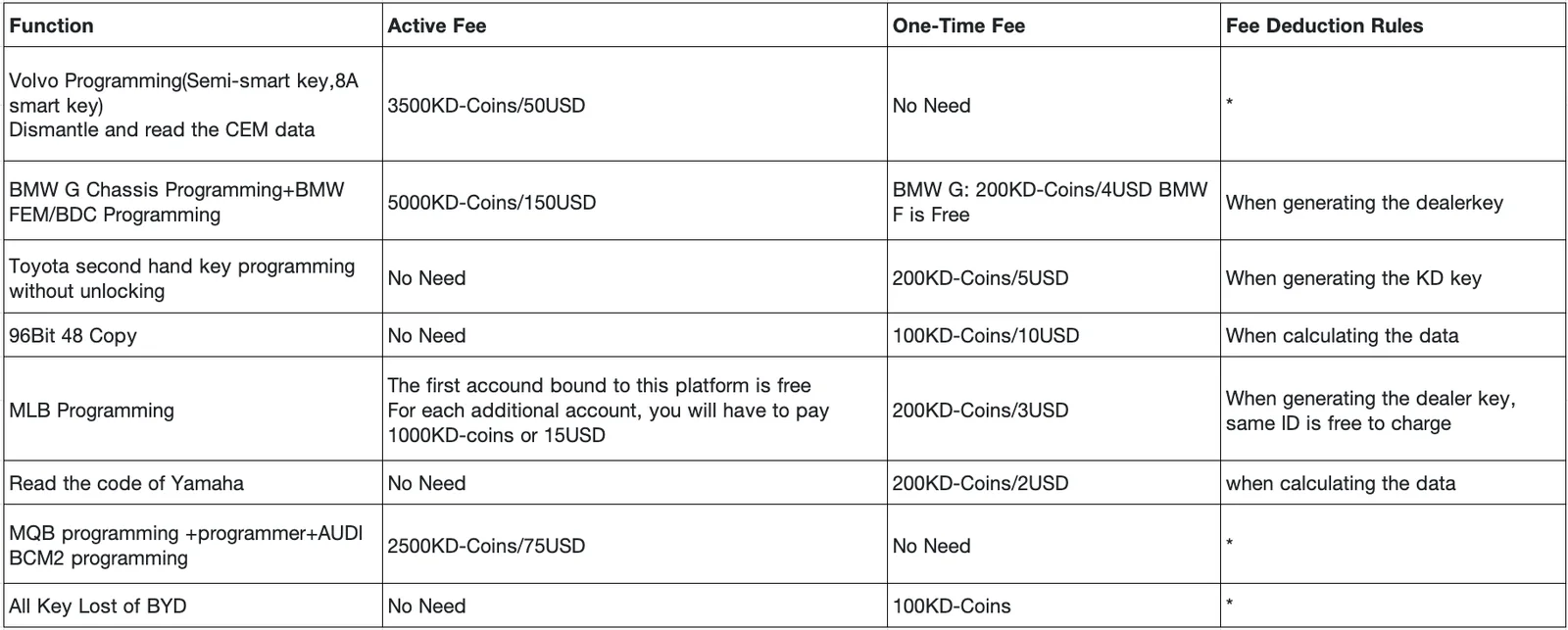

KEYDIY X4 Authorization List:

KEYDIY X4 Specifications:

Battery capacity: 3.7V 3500MAh

Input power: 12V/24V/5V 1A

Working temperature: -30-50 degrees Celsius

Storage temperature: -40-60 degrees Celsius

Display: 1.8-inch color screen

Size: 200X120X40MM

Connectivity: Blooth, USB2.0(TYPE B)

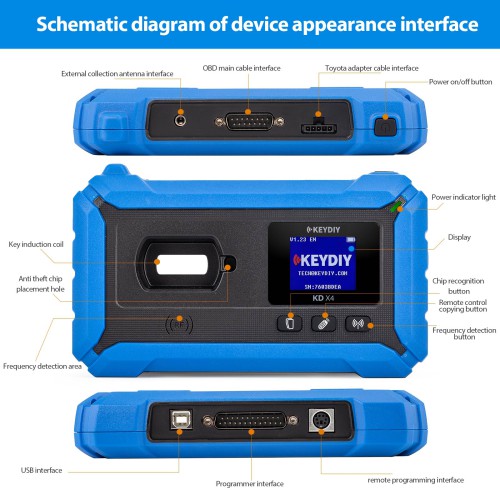

Button and Interface Functions:

• Power Button: Turns the device on/off.
• Chip Recognition Button: Detects and identifies chips; long press activates additional functions.
• Remote Copy Button: Copies remote controls and switches between functions.
• Frequency Detection Button: Measures frequency up to 1GHz and enables additional mode selection.
• Key Induction Coil & IMMO Chip Placement Hole: Used for identifying and copying car key IMMO chips.
• Frequency Detection Area: Detects the frequency of key remote controls.
• Power Indicator Light: Displays charging and operational status.
• USB Interface: Supports charging and wired connections.
• Programmer Interface: Reads Volkswagen MQB dashboard, Audi dashboard, and EEPROM data.
• Wired Programming Interface: Supports KD wired remote generation and battery voltage detection.
• Collection Antenna: Captures ignition and chip data.
• External Acquisition Antenna Interface: Supports additional data collection and simulation.
• Toyota Adapter Cable Interface: Used for Toyota/Lexus smart key operations.

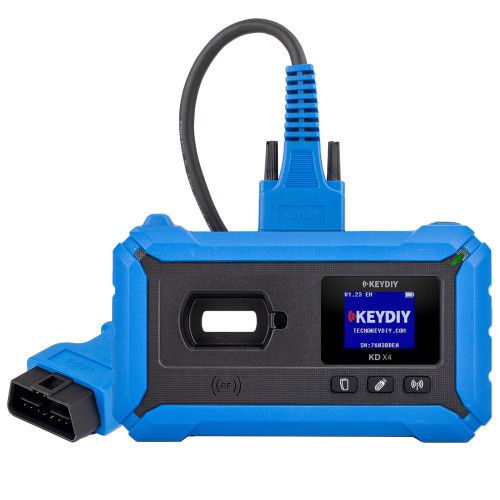

• OBD Main Cable Interface: Connects to a vehicle for programming via the Mobile KD App.

KEYDIY KD-X4 Key Programmer Frequently Asked Questions

Q: What is the KEYDIY KD-X4, and what does it do?

A: The KEYDIY KD-X4 is an advanced locksmith tool designed for automotive key programming and repair tasks. It combines functionalities such as key recognition, generation, copying, programming, and matching into one device. It supports over 5600 remote control program generations, frequency detection, chip recognition, and immobilizer programming for various car brands.

Q: Which car models and brands does the KEYDIY KD-X4 support?

A: The KD-X4 supports over 51+ car brands, including Toyota, Lexus, Ford, Volkswagen, Audi, and more. It also provides specialized functions like Toyota Rollin-Code Bypass and MQB key programming for 2019+ Toyota models.

Q: Can the KD-X4 unlock and reprogram used car keys?

A: Yes, the KD-X4 supports unlocking used keys, including Toyota 8A, 4A, and other transponder types, allowing them to be reprogrammed for another vehicle.

Q: Does the KD-X4 support key programming for heavy-duty trucks?

A: Yes, the KD-X4 includes 24V Chinese heavy-duty truck key programming, making it compatible with commercial vehicles.

Q: What languages does the KEYDIY KD-X4 support?

A: The KD-X4 offers multilingual support in 19 languages, including Arabic, Korean, German, Spanish, English, and Chinese, making it accessible to users worldwide.

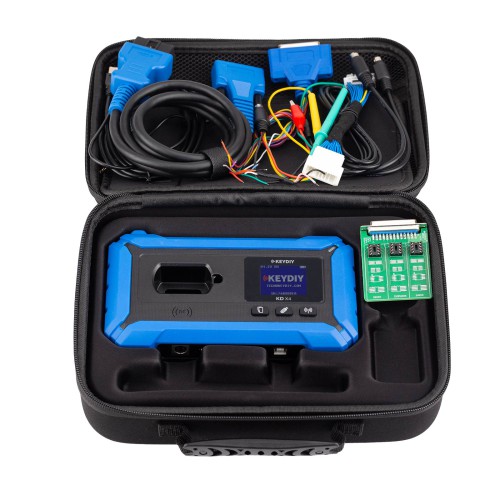

Q: What is included in the KD-X4 package?

A: The KEYDIY KD-X4 box contains the KD-X4 device, OBD main cable, USB cable, Toyota adapter cable, programmer adapter board, programmer wiring cable, remote control burning cable, key unlocking cable, and an external acquisition antenna.

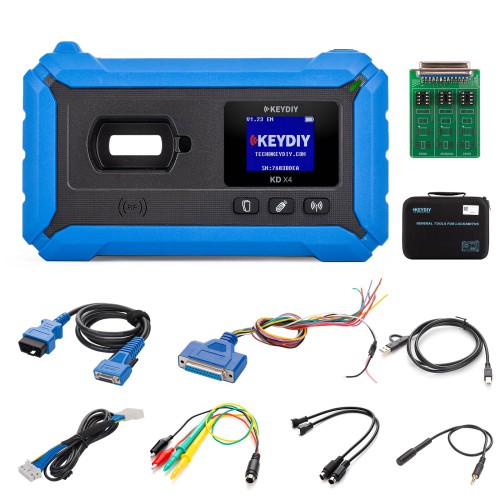

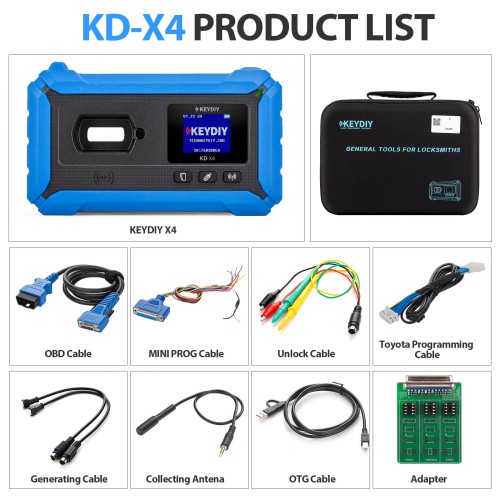

Package Contents:

1x KD-X4 Device

1x OBD Main Cable

1x USB Cable

1x Toyota Adapter Cable

1x Programmer Adapter Board

1x Programmer Wiring Cable

1x Remote Control Burning Cable

1x Key Unlocking Cable

1x External Acquisition Antenna
