Lonsdor K518 PRO Full Version All In One Key Programmer with 2pcs LT20, Toyota FP30 Cable, Nissan 40 BCM Cable JCD JLR and ADP Adapter

Lonsdor K518 PRO Full Version All In One Key Programmer with 2pcs LT20, Toyota FP30 Cable, Nissan 40 BCM Cable JCD JLR and ADP Adapter

1. Lonsdor K518 PRO, the 2nd generation product of K518, is a versatile key programming device released by Lonsdor, designed specifically for technicians and locksmiths.

2. Integrated with all functions and features of K518ISE, this tablet device shows more advantages and functionality.

3. 2 Years Free Update, with Free Toyota AKL Activation / JLR License / Nissan License / Volvo License.

4. Full Version with 2pcs LT20, Toyota FP30 Cable, Nissan 40 BCM Cable, JCD, JLR and ADP Adapter.

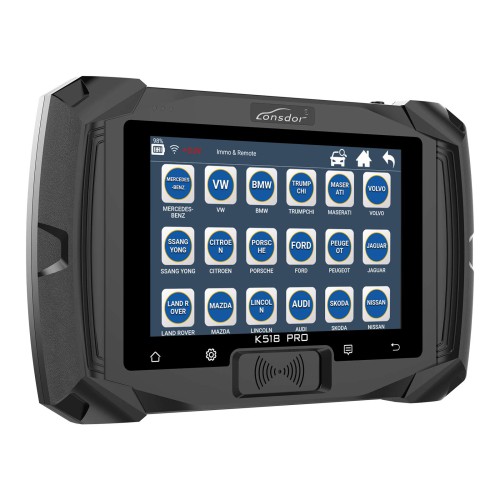

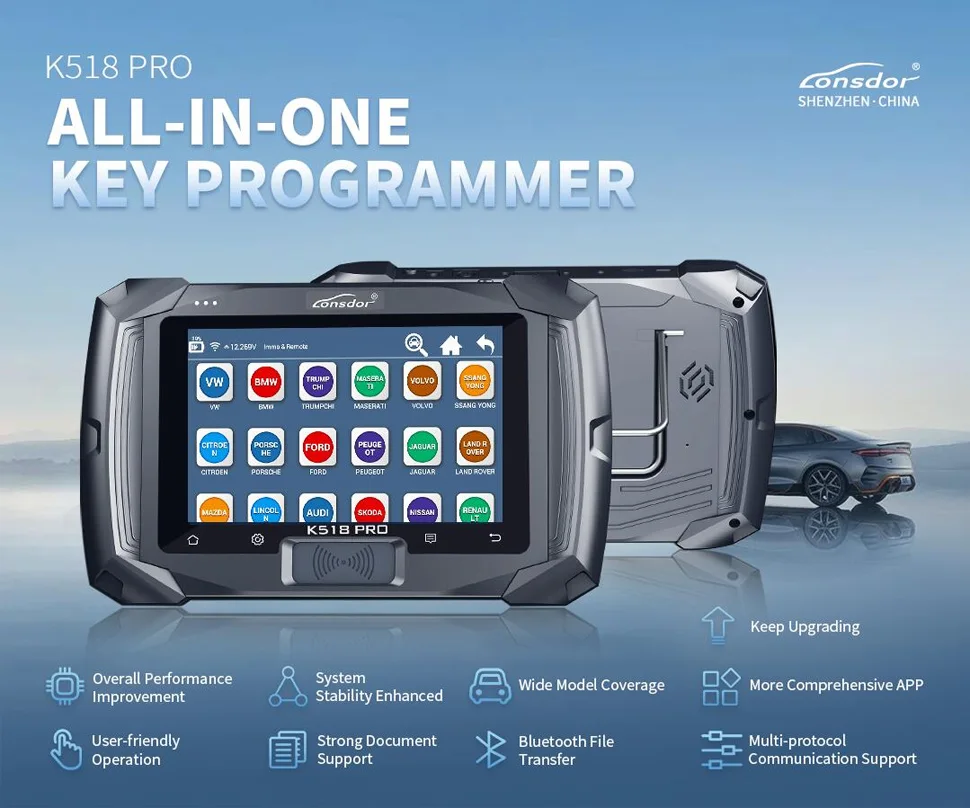

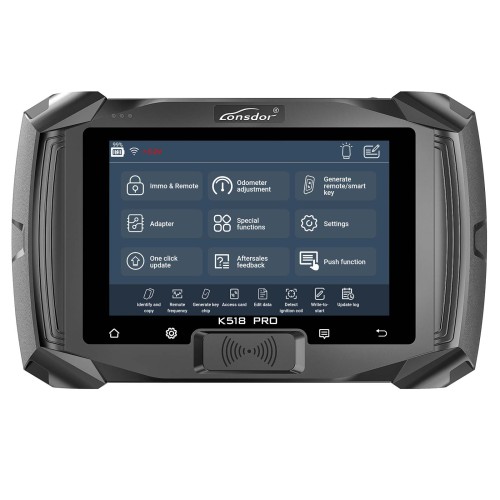

Lonsdor K518 PRO Full Version All In One Key Programmer

Lonsdor K518 PRO, the 2nd generation product of K518, is a versatile key programming device released by Lonsdor, designed specifically for technicians and locksmiths. Integrated with all functions and features of its predecessor, this tablet device shows more advantages and functionality, including immobilization, odometer adjustment, remote/smart key generate, adaptor, chip identify and copy, key chip generate, remote frequency detect, ignition coil detect, Toyota smart key settings, one-key update, push function, and etc.

Lonsdor K518 PRO Highlights:

1. Full Version with LT20 Smart Key 2pcs, Toyota FP30 Cable, Nissan 40 BCM Cable, JCD FCA 12+8 FCA, JLR Cable and ADP Adapter.

   2pcs x LT20 Smart Key PCB (gift)

   1pc x Toyota FP30 Cable (gift)

   1pc x Nissan 40PIN-BCM Cable (gift)

   1pc x L-JCD 12+8 FCA Cable (gift)

   1pc x JLR 2015-2021 Connector (gift)

   1pc x Super ADP 8A/4A Adapter (gift)

2. Including LKE Smart Simulator Function.

3. 2 Years Free Update. After 2 years the update cost will be as following:

   First Time Update Service $480

   Second Time Update Service $360

   Third Time Update Service $200

4. Free Toyota AKL Activation / JLR License / Nissan License / Volvo License.

5. Support CAN FD and DOIP.

6. Support 24V Lorry and Heavy Trucks.

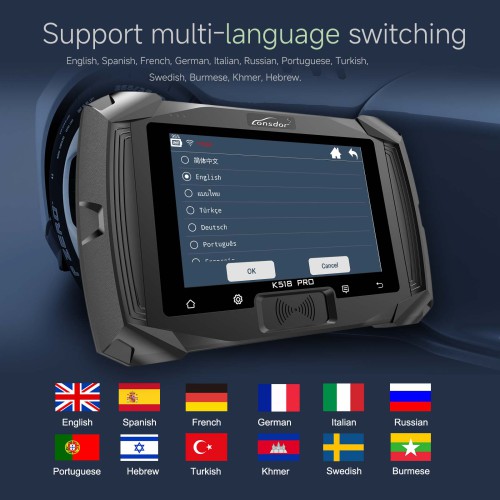

7. Supported language: English, Spanish, French, German, Italian, Russian, Portuguese, Turkish, Swedish, Burmese, Khmer, Hebrew.

8. Global Version, supports Indian, Malaysian etc brands.

Other Optional Accessories You May Need (contact us for the price):

Lonsdor KPROG2 KPROG-2 Adapter to read and write an eeprom soic chip/mcu chip. Get data for backup or replacement. If you have KPROG-2 from old Lonsdor K518, can only buy an extra adapter.

Lonsdor LT20 Series 8A+4D Universal Smart Remote Key PCBS for Toyota Lexus.

Lonsdor LT30 Series TOYOTA 4A Universal Smart Key PCB.

Lonsdor DOIP Cable – Support Program Smart Key and AKL Program.

Lonsdor SGW FCA 12+8 Special Adapter for Chrysler Dodge Jeep RAM FIAT MASERATI 2018+. Compatible with Multi Key programmer / Diagnostic tool.

Software/Hardware Advantages:

Trendy tablet design with support frame, better user experience.

Based on Android 9, more optimized operation.

With Quad-core A7, the strongest computing power, 2 times that of A33.

Excellent and powerful ultra-high energy consumption ratio.

The first to support 8A(H chip) generation.

Added support for CANFD and DOIP protocols.

Function Superiority:

More comprehensive functions and features based on K518.

Support most car models on the market, luxury, domestic and popular cars all included.

Networking/Pincode/OBD program, not required for most models.

Support 24V lorry and heavy trucks.

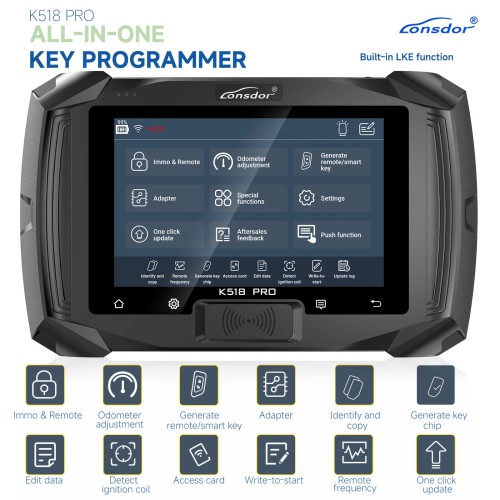

Lonsdor K518 PRO Functions:

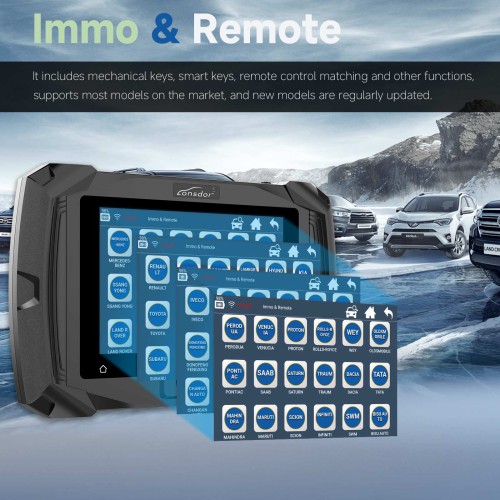

Immobilization: Program mechanical key/smart key/remote, etc. Support most of car models on the market, regular updates for new models.

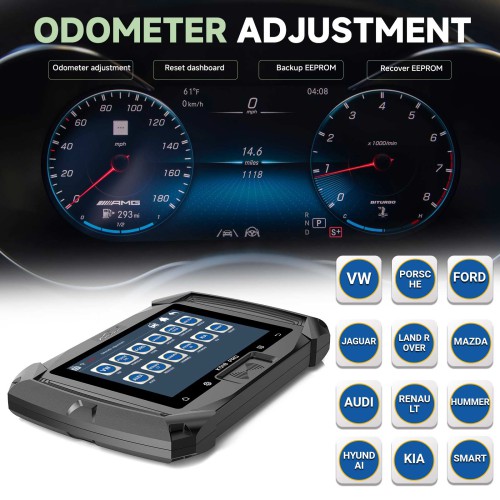

Odometer Adjustment: Mileage diagnosis and correction.

Generate Remote/Smart: Generate smart key/remote/garage door remote.

Adaptor: Read and write EEPROM chip/CPU main control chip, read EEPROM Pincode, etc.

Special Functions: Identify and copy key chip, generate key chip, detect remote frequency, simulate chip, decode chip, detect ignition coil, key settings, access control card, etc.

Push Function: Push the designated function App to user, which will be automatically disabled when expired.

OBD II converter: OBD connector's light can be switched on/off.

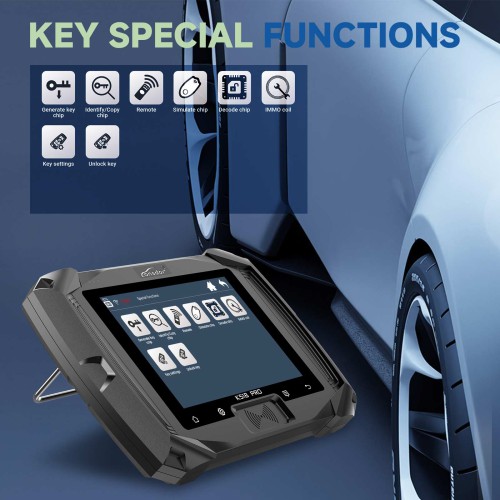

Lonsdor K518 PRO Special Functions:

Generate key chip: Support 4D, 46, 48, 7935, 8A and more key chip generation.

Identify & Copy chip: Identify info and status of almost all car key chips on the market.

Generate remote: Detect remote key's frequency.

Simulate chip: Mainly LKE functions, include: simulate 4D/46/8A chip, bind LKE and obtain LKE info, etc.

Decode chip: Support 46 and 4D chip decoding.

Ignition coil Detect: If the coil has signal, also identify key type on AKL condition.

Key settings: Set Lonsdor 8A and 4D smart key type / Lonsdor Smart Key Series, LT20 Series.

Unlock key: Unlock Toyota 8A smart key.

Access control card: Identify and copy IC/ID card.

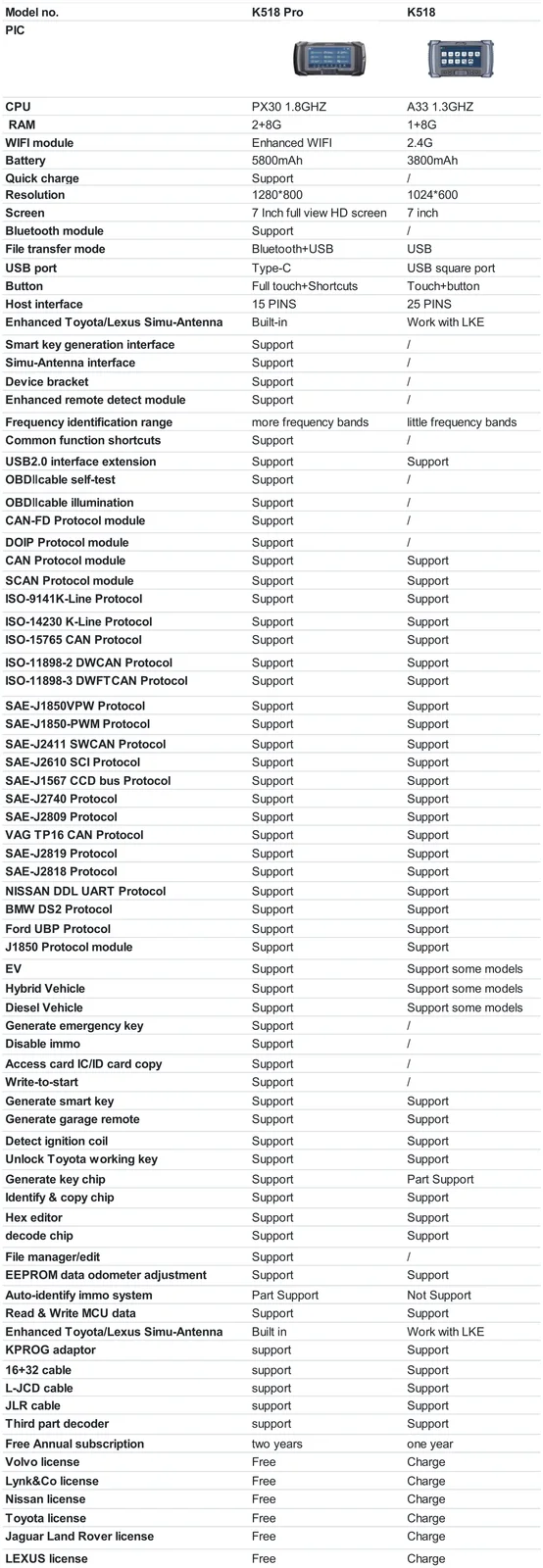

Lonsdor K518Pro Vs K518/K518s：

Lonsdor K518Pro Support Car List Check Online: http://testen.lab.lonsdor.com/menulistinfo/197

Lonsdor K518 PRO Highlight Model List:

Volvo S40/S60/S80/S90/V40/V60/V70/V90/C30/C70/XC40/XC60/XC70/XC90 all series IMMO.

Latest Toyota/Lexus chip type 8A/4A smart key programmed with free pin code.

2015-2018 Land Rover/Jaguar key programmed via OBD (no disassembly required).

Land Rover/Jaguar 2018Change RFA module to program smart key.

2018Land Rover & Jaguar – Turn off UWB PEPS function to program smart key.

Latest Mazda smart key all key lost w/o PIN code.

Latest Honda chip type 4A smart key all key lost.

Latest Subaru chip type 8A smart key programmed.

Latest Nissan New Sylphy B18, X-Trail T33 smart key all key lost.

Latest Hyundai/Kia chip type 4A/47 smart key programmed.

Latest Ford Mustang IMMO program.

BMW CAS1/CAS2/CAS3/CAS3+/CAS3++/CAS4/CAS4+/FEM/BDC IMMO.

Latest GM CAN-FD protocol IMMO – 90% of 2010-2020 GM models read pin code from BCM.

Volkswagen/Audi/Skoda/Seat MQB platform IMMO and odometer adjustment.

Ssangyong smart key and mechanical key program.

Latest Maserati read pin code and smart key program.

Ferrari (458, F12, F149) key programmed via OBD.

Support European cars such as Renault, Fiat, Opel, Peugeot, Citroen, Alfa Romeo, Lancia, Dacia, etc.

Support American cars such as Dodge, Chrysler, JEEP, Buick, Cadillac, Chevrolet, and GMC, etc.

Supports Asian cars such as Toyota/Lexus, Honda/Acura, Mitsubishi, Subaru, Nissan/Infiniti, Hyundai, Kia, and Proton, etc.

Supports luxury cars such as Porsche, Land Rover, Jaguar, Lamborghini, Bentley, Ferrari, and Cadillac, etc.

Supports Chinese cars such as BYD, Great Wall, Geely, BAIC, Changan, Roewe, MG, Lynk & Co, etc.

Support electric cars such as Leading Ideal, Denza, Leap Motor, etc.

Supports other functions like chip decoding, chip simulation, chip identification, remote generation, smart key generation, frequency identification.

Support generate key chip like 4D, 46, 48, T5, 793.

Lonsdor K518Pro Newest Update Info:

K518PRO/K518 Series SEAT UPDATE July 19th, 2024:

SEAT\Select from vehicle\Alhambra\2001-2010\Engine\Bosch(ME7.1/7.5/7.8)-Engine

SEAT\Select from vehicle\Alhambra\2001-2010\IMMO

SEAT\Select from vehicle\Alhambra\2001-2010\Remote

SEAT\Select from vehicle\Alhambra\2011-\IMMO\Auto detect

SEAT\Select from vehicle\Alhambra\2011-\IMMO\Dalu CAN instrument(NEC+24C64 2013)

SEAT\Select from vehicle\Alhambra\2011-\IMMO\Dalu CAN instrument(NEC+24C64)

SEAT\Select from vehicle\Alhambra\2011-\Remote

SEAT\Select from vehicle\Altea\2004-2015\IMMO\Auto detect

SEAT\Select from vehicle\Altea\2004-2015\IMMO\Dalu CAN instrument(CDC32XX+24C32)

SEAT\Select from vehicle\Altea\2004-2015\IMMO\Dalu CAN instrument(NEC+24C32)

SEAT\Select from vehicle\Altea\2004-2015\IMMO\Dalu CAN instrument(NEC+24C64 2013)

SEAT\Select from vehicle\Altea\2004-2015\IMMO\Dalu CAN instrument(NEC+24C64)

SEAT\Select from vehicle\Altea\2004-2015\Remote

SEAT\Select from vehicle\Cordoba\1999-2009\Bosch K line-IMMO

SEAT\Select from vehicle\Cordoba\1999-2009\Engine\Bosch(ME7.1/7.5/7.8)-Engine

SEAT\Select from vehicle\Cordoba\1999-2009\Remote

SEAT\Select from vehicle\Exeo\2009-2014\Bosch K line-IMMO

SEAT\Select from vehicle\Exeo\2009-2014\Engine\Bosch(ME7.1/7.5/7.8)-Engine

SEAT\Select from vehicle\Exeo\2009-2014\Remote

SEAT\Select from vehicle\lbiza\2002-2009\Engine\Bosch(ME7.1/7.5/7.8)-Engine

SEAT\Select from vehicle\lbiza\2002-2009\IMMO

SEAT\Select from vehicle\lbiza\2002-2009\Remote

SEAT\Select from vehicle\lbiza\2008-2016\Engine\Bosch(ME7.1/7.5/7.8)-Engine

SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Auto detect

SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Dalu CAN instrument(CDC32XX+24C32)

SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Dalu CAN instrument(NEC+24C32)

SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Dalu CAN instrument(NEC+24C64 2013)

SEAT\Select from vehicle\lbiza\2008-2016\IMMO\Dalu CAN instrument(NEC+24C64)

SEAT\Select from vehicle\lbiza\2008-2016\Remote

SEAT\Select from vehicle\Leon\2000-2006\Bosch K line-IMMO

SEAT\Select from vehicle\Leon\2000-2006\Engine\Bosch(ME7.1/7.5/7.8)-Engine

SEAT\Select from vehicle\Leon\2000-2006\Remote

SEAT\Select from vehicle\Leon\2006-2013\IMMO\Auto detect

SEAT\Select from vehicle\Leon\2006-2013\IMMO\Dalu CAN instrument(CDC32XX+24C32)

SEAT\Select from vehicle\Leon\2006-2013\IMMO\Dalu CAN instrument(NEC+24C32)

SEAT\Select from vehicle\Leon\2006-2013\IMMO\Dalu CAN instrument(NEC+24C64 2013)

SEAT\Select from vehicle\Leon\2006-2013\IMMO\Dalu CAN instrument(NEC+24C64)

SEAT\Select from vehicle\Leon\2006-2013\Remote

SEAT\Select from vehicle\Mii\2012-\IMMO\Auto detect

SEAT\Select from vehicle\Mii\2012-\IMMO\Marelli CAN instrument(Marelli 95320)

SEAT\Select from vehicle\Mii\2012-\IMMO\Marelli CAN instrument(Marelli 9S12)

SEAT\Select from vehicle\Mii\2012-\Remote

SEAT\Select from vehicle\Toledo\1999-2004\Bosch K line-IMMO

SEAT\Select from vehicle\Toledo\1999-2004\Engine\Bosch(ME7.1/7.5/7.8)-Engine

SEAT\Select from vehicle\Toledo\1999-2004\Remote

SEAT\Select from vehicle\Toledo\2005-2010\IMMO\Auto detect

SEAT\Select from vehicle\Toledo\2005-2010\IMMO\Dalu CAN instrument(CDC32XX+24C32)

SEAT\Select from vehicle\Toledo\2005-2010\IMMO\Dalu CAN instrument(NEC+24C64 2013)

SEAT\Select from vehicle\Toledo\2005-2010\IMMO\Dalu CAN instrument(NEC+24C64 2014)

SEAT\Select from vehicle\Toledo\2005-2010\Remote

K518PRO/K518 Series Update INFINITI IMMO July 11th, 2024:

North America

QX60\2022-2023

EX37\2013

FX35\2003-2009

FX45\2008-2009

G37x\2008-2010

M35\2009-2010

M45x2009-2010

Q40\2015

Q50\2016-2023

Q60\2014-2022

Q70\2014-2019

QX50\2014-2018

QX60\2020-2021

Canada

FX35\2008-2009

FX45\2008-2009

QX60\2020-2021

Middle East

QX80\2014-2020

Asia

QX50\2017-

OX60\2022-

QX80\2014-2023

Europe

EX37\2010-2014

FX45\2009

Australia

Q60\2013-2016

Q60\2016-2019

Q70\2014-2019

QX80\2014-2019

K518PRO/K518 Series Update BMW/PEUGEOT/CHERY April 9,2024

BMW

BMW\EWS

PEUGEOT

General area\Boxer2010-2023\lmmobilizer

General area\l0N 2009-2019\Mechanical key

Europe\Boxer 2010-2023\lmmobilizer

Europe\l0N 2009-2019\Mechanical key

South America Boxer 2010-2023\lmmobilizer

CHERY

Explore series\Explore 06 \2023-

Tiggo series\Tiggo 9\2023-

Fulwin series\Fulwin A8\2024-

K518PRO/K518 Series Update CADILLAC/GMC/BUICK/CHEVROLET Renault/Dacia on March 10th, 2024:

Note: CANFD protocal car models only supported by K518PRO.

Please update your device to check the details.

K518PRO/K518 Series reprogram the deleted original Toyota 8A-AA, 8A-BA keys on Avalon 2019 AKL

Menu path: Special functions- Key settings-Program

Operation Video

Toyota original key(AA / BA)

Specs and Parameter:

Operation system: Android 9

Processor: Allwinner A50

Memory: Ram 2G flash 8G

Display: MIPI 800*1280

WiFi: (802.11 b/g/n)

USB: USB2.0

Bluetooth: 4.1

SD card: support Plug & Unplug

Battery: 5800MA

Input voltage: 12V

Shell material: PC hard shell+TPR60°

Dimension: 26*3*16CM

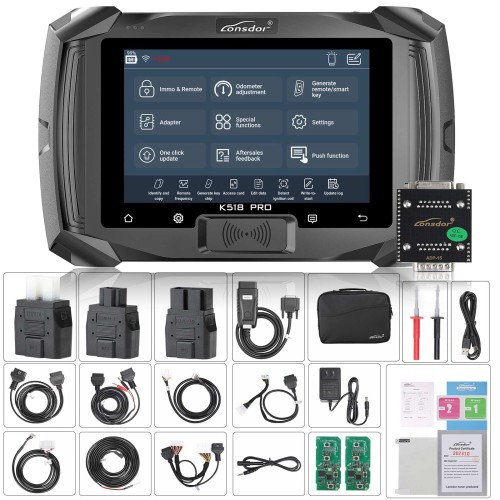

Package List:

1set x Lonsdor K518 Pro main host

2pcs x LT20 Smart Key PCB (gift)

1pc x Toyota FP30 Cable (gift)

1pc x Nissan 40PIN-BCM Cable (gift)

1pc x L-JCD 12+8 FCA Cable (gift)

1pc x JLR 2015-2021 Connector (gift)

1pc x Super ADP 8A/4A Adapter (gift)

1pc x Power adapter

1pc x Acquisition Antenna

1pc x Type-C cable

1pc x KIA/HYUNDAI connector

1pc x HONDA connector

1pc x KIA connector

1pc x OBD2 test cable

1pc x Certificate & user manual card

1pc x Main unit packing bag

1pc x Toyota FP27 cable (gift)

1pc x Toyota FP24 cable (gift)
