EU ShipFree ShippingOBDSTAR P50 Airbag Reset Tool Covers 95 Brands and Over 14700+ ECU Part No. Support Battery Reset/ SAS Reset

Product Description

OBDSTAR P50 is the new generation of intelligent airbag reset equipment, with powerful function and wide coverage, covering 95 brands and over 14700+ ECU part No. and some MCU.

Newly added battery reset for Audi and Volvo by BENCH.

One year update for free, no need tokens.

Supports SAS(steering angle sensor) reset function

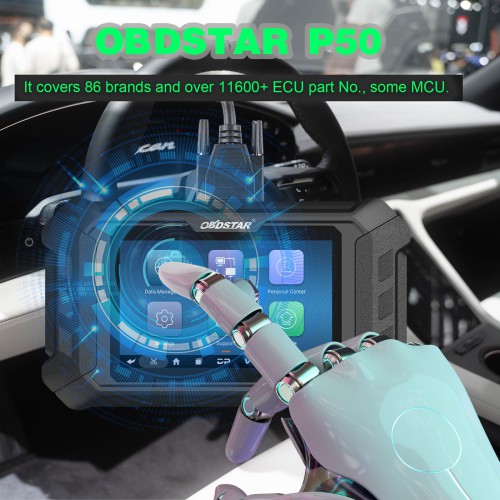

OBDSTAR P50 Airbag Reset Intelligent Equipment

OBDSTAR P50 is the new generation of intelligent airbag reset equipment. It's with powerful function and wide coverage, covering 95 Brands and Over 14700+ECU part No., some MCU.

OBDSTAR P50 is based on RK3128 Quad-Core processor, extremely fast and smooth; equipped with 5-inch capacitive touch screen, touch sensitive.

OBDSTAR P50 Functions:

1. Support one-click airbag reset for 86 Brands and Over 11600+ part No.

2. Support fuzzy search for ECU part No.

3. Contain clear BENCH mode wiring diagram

4. Contain powerful and complete description files for fault code

5. P50 comes with P004 Adapter: P004 adapter is designed for ECU programming, reading or writing data in bench mode.

6. P50 COVERAGE LIST

7. Supports battery reset(MVBM) function

8. Supports SAS reset function

9. Optional CANFD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.) You can contact us to buy the CANFD adaptor

10. Optional MP001 Programmer and RH850/V850 Adapter Kit Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor.

Notice:

1. Language: English Only.

2. If you also need Cluster Calibration & Oil Light/ Service Reset Function, you can buy the OBDSTAR Odometer Reset Oil Service Reset Function Authorization to get the same function as the OBDSTAR ODO Master

Advanced Functions with Optional MP001 Programmer and RH850/V850 Adapter Kit:

Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor. The repair and diagnosis of the encrypted SRS ECU are completed through the MP001 programmer, avoiding the switching back and forth between the MP001 programmer and the P004 adapter. The power supply is automatically controlled, which making the repair safer and more convenient and avoiding internal faults caused by insufficient power off time.

Support models

The following are the vehicle brands and MCU models of SRS ECU that come with the encrypted RH850 processor

1. R7F7016863: Subaru (data R/W + crash erase)

2. R7F7016843: Toyota/Lexus (data R/W + crash erase)

3. R7F7016443: Toyota/Lexus (data R/W + crash erase)

4. R7F701330A: Volvo, Polestar, Geely, Lynk&Co, Zeekr, Toyota, Mazda, Land Rover/Jaguar, Tesla (supports data R/W, supports crash erase partially, supports third-party manual crash erase)

5. R7F7010643: Dongfeng, Changan, Arcfox, Chery, Hongqi, Ford/Lincoln, Great Wall, Land Rover/Jaguar, GAC, XPeng, Tesla (data R/W + crash erase(except Tesla) ).

6. R7F701A033: Dongfeng, Arcfox, BAIC, Changan, FAW, Ford/Lincoln, Geely, Great Wall, Haima, Hongqi, JAC, Peugeot, Wuling, Tata, GAC, WM, XPeng, Zotye, etc. (data R/W + crash erase)

7. R7F701042(upcoming upgrade): Suzuki, Volkswagen (data R/W +crash erase)

Optional MP001 Programmer and RH850/V850 Adapter Kit  vs P004 Adapter:

This kit uses the MP001 programmer with the C4-06 adapter soldering wire to decrypt the new SRS ECU with the encrypted RH850 processor for data reading, writing and repair, and uses the MP001 programmer with the BENCH-A-V3 jumper to perform a separate diagnosis of the SRS ECU (read fault codes/erase fault codes)， which can avoid switching between the MP001 programmer and the P004 adapter.

Compared with the P004 adapter, the power on/off of the SRS ECU is automatically controlled by the MP001 programmer, without the need for manual control of power on/off. The operation experience is safer and more convenient, avoiding internal faults caused by incomplete sleep of the ECU due to insufficient power outage time.

P50 Airbag Reset Latest Update Information:

Airbag Reset Upgrade【V30.85】

Airbag V30.60

1. Highlights Added

Add 284 part NO. again!!! (10700+part No. supported)

Add 183 part numbers for the below models to support airbag reset:

Add AUDI 95128,95640 (2 part No.);

Add BENZ 95640,SPC560P50 (2 part No.);

Add BYD R7F701008,R7F701009 (5 part No.);

Add CADILLAC 95160 (1 part No.);

Add CHANGAN R7F701A033 (7 part No.);

Add CHERY R7F701008 (1 part No.);

Add CHEVROLET 95160,95320 (9 part No.);

Add CITROEN 95320 (5 part No.);

Add FORD 95160,95320 (7 part No.);

Add HONDA 93C86, 95640, H8SX, H8SX1725, MPC5604, R5F2154, R7F701686, R7F701A223, SPC56AP54, TC234LP-32F, TC23XX32F (22 part No.);

Add HYUNDAI 95320, R7F7015803, R7F701XXX, TC23XX-32F (18 part No.);

Add KIA 95512, R7F701019, R7F7015803, TC233X-16F (5 part No.);

Add LEXUS R7F701A223 (1 part No.);

Add MAXUS R7F701008,R7F701009 (4 part No.);

Add MITSUBISHI TC22XX-16F (2 part No.);

Add NISSAN 93C76, 95128, 95320, TC22XX-16F (9 part No.);

Add OPEL (1 part No.);

Add PEUGEOT 95160,95320,SPC560P50 (59 part No.);

Add RENAULT 95640,R7F701XXX,TC222S-16F,XC2336B (4 part No.);

Add ROEWE TC224L-16F (2 part No.);

Add SUBARU R7F7010643 (2 part No.);

Add SUZUKI H8SX1725,R7F7010183,XC2336B (5 part No.);

Add TOYOTA R7F7016443,R7F7016843,R7F701A223 (9 part No.);

Add VW TC234-32F (1 part No.);

Add 101 part numbers for the below models to support Read/Erase DTC:

Add AUDI 95640 (2 part No.);

Add BENZ R7F701064 (1 part No.);

Add CITROEN TC222S-16F (1 part No.);

Add DODGE 95128,95640 (8 part No.);

Add FIAT TC23XX-32F (1 part No.);

Add FORD 95320 (2 part No.);

Add GEELY 95320 (1 part No.);

Add GREATWALL R7F7010643 (1 part No.);

Add JAGUAR 9S12DT128 (1 part No.);

Add JEEP 95256 (1 part No.);

Add LANDROVER 9S12DT128 (5 part No.);

Add LEXUS 93C56 (1 part No.);

Add MAZDA R7F701330 (1 part No.);

Add SEAT 95640 (1 part No.);

Add SUBARU (2 part No.);

Add TOYOTA 24C02, 25040, 93C56, 93C66, 95040, 95080, 95C56, R7F701A223 (71 part No.);

Add VW TC23XX-32F (1 part No.).

2. Details Optimized

Optimized CHANGAN [Erase Crash] process;

Optimized CHEVROLET pinout.

Airbag V30.61

1. Details Optimized

Optimized software.

P50 Airbag Reset Upgrade

Add TOYOTA R7F7016443, R7F7016843 crash record erase and repair

(All by bench, need to use with CANFD Adapter)

P50 BATTERY RESET UPGRADE V30.06

Add AUDI BMS 8R0915233, 8R0915591 crash record erase and repair ( by BENCH )

Advanced Functions:

ECU Info.

Read DTC

Erase DTC

Read EEPROM

Write EEPROM

Read FLASH

Write FLASH

Erase Crash

Write VIN

...

P004 Adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:

1. Programming devices keep in normal communication no matter turn on or off 12V power button;

2. Turn on or off 120Ω resistance at any time for CANBUS ECU;

3. Support 6&14 and 3&11 CANBUS communication at the same time;

4. Support GM Single CAN(GM SCAN);

5. Support K communication;

6. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;

7. DB15 connector can communicate with any OBDII-16 I/O interface.

Vehicle Coverage:

1. Supported Brands(86 Brands)ACURA, ALFAROMEO, ASTONMARTIN, AUDI, BAIC, BAOJUN, BENTLEY, BENZ, BMW, BRILLIANCE, BUICK, CADILLAC, CHANGAN, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DATSUN, DODGE, FAW, FERRARI, FIAT, FORD, GEELY, GMC, GREATWALL, HAIMA, HONDA, HONGQI, HYUNDAI, INFINITI, ISUZU, JAGUAR, JEEP, KIA, LADA, LAMBORGINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, POLESTAR, PORSCHE, RENAULT, ROEWE, SCION, SEAT, SKODA, SMART, SSANGYONG, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW, ZOTYE......

2. Over 11600+ ECU part No.(supporting fuzzy search)

3. MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

Function Display:

1. The main page after registration：

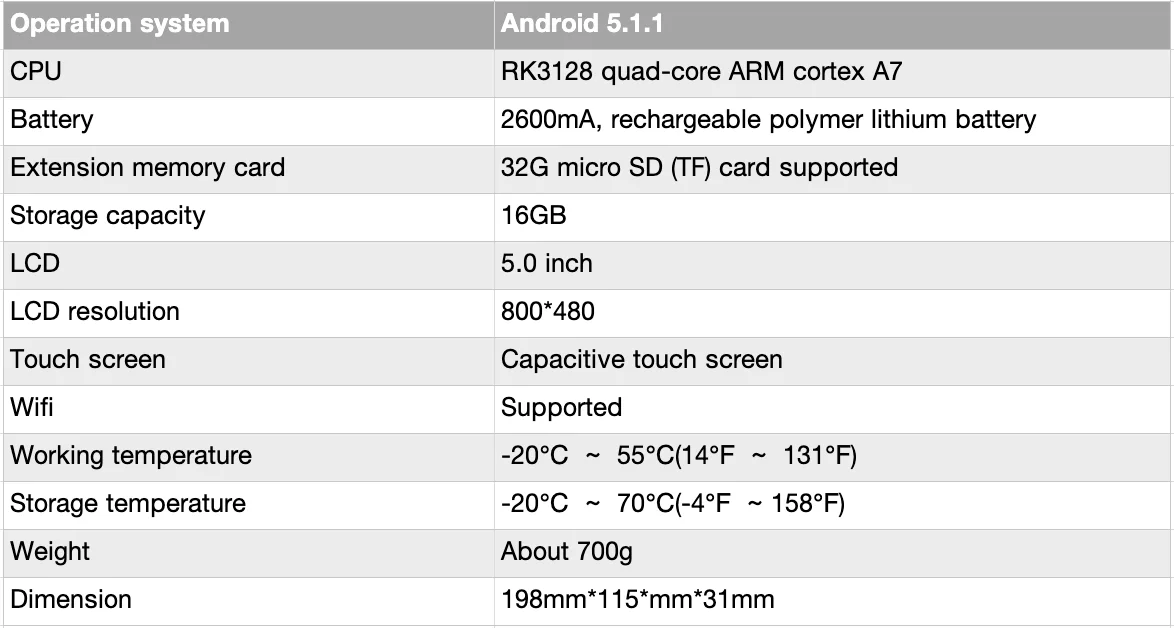

Product Specifications:

Package Includes:

1pc x P50 main unit

1pc x main cable

1pc x P004 adapter

1pc x P004 jumper

1pc x 12V2A charger
