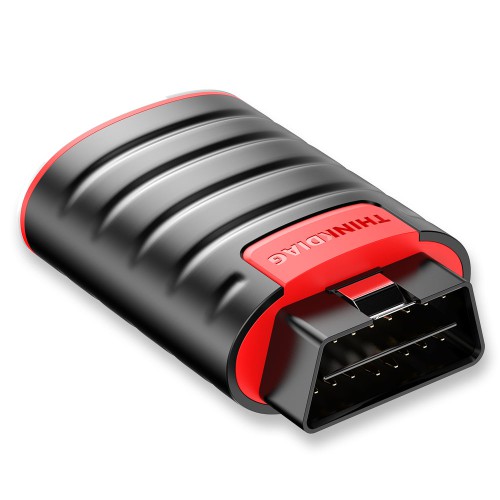

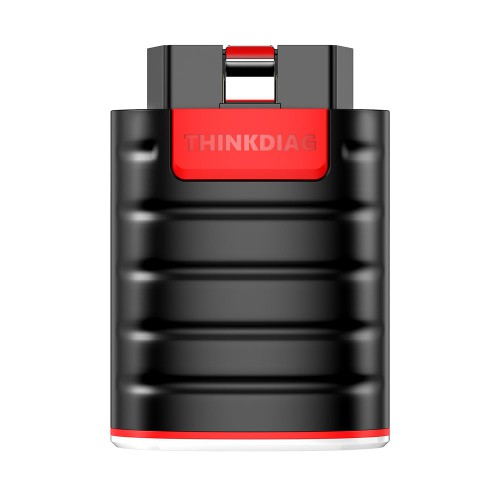

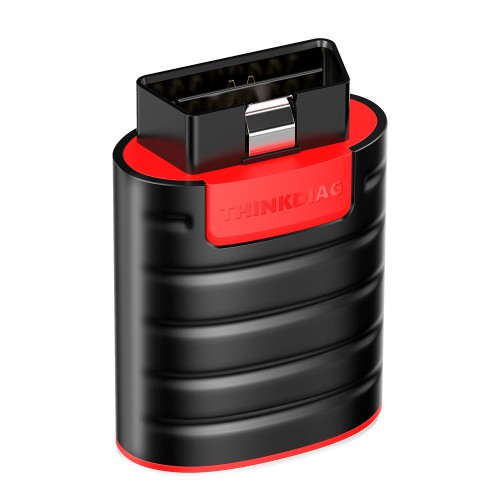

THINKCAR ThinkDiag Full Pro OBD2 Connector with All Car Brands and 16 Special Functions License & One Year Update Subscription

Product Description

Thinkcar ThinkDiag Full Pro OBD2 Connector with All Car Brands and 16 Special Functions License & One Year Update Subscription

Bi-Directional / Active Test + ECU Coding + IMMO Key Programming + Adaptation + Matching. 16 Reset Service Functions. Read Fault Codes for All Systems: ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, Fuel System, Light System, Wiper System, etc. Live Data Stream Graphing + Data Record + Print Vehicle Health Report + Remote Diagnostic. Wide Vehicle Coverage. Covers up to 115 major vehicle manufacturers, with more models being updated continuously.

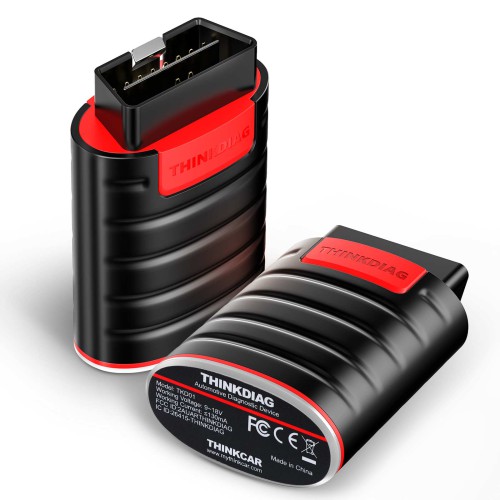

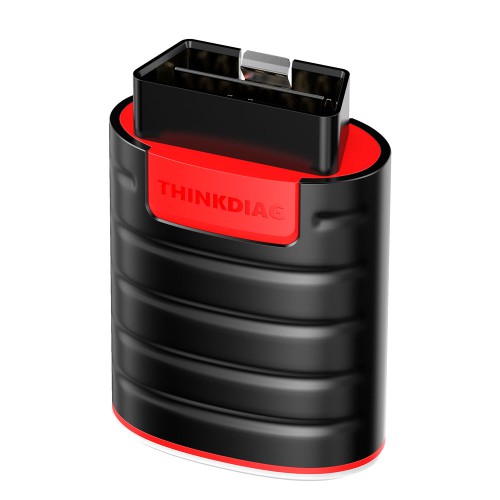

THINKCAR ThinkDiag Full System OBD2 Diagnostic Tool

What is THINKCAR ThinkDiag?

THINKDIAG is an automobile diagnostic tool with professional-grade functions. In the past, mechanics and car tuners had to use bulky diagnostic tools with large screens and connector cables, or laptops plugged into the OBD II port. THINKDIAG changes that. Plug the THINKDIAG dongle into your car, connect it to your smartphone via Bluetooth, and your smartphone becomes a professional diagnostic tool. THINKDIAG is small enough to fit in your pocket, yet it is smart and powerful enough to enjoy as many as 16 maintenance functions, advanced ECU coding, accurate bidirectional functions, enhanced tests for the full electronic control system, and full OBD II and EOBD functions.

Thinkdiag Highlights:

1. Supports 115 car brands + all software + 16 Reset Service + 1-year free update. After one year, you need to pay $70 for the ThinkDiag Full Software License and One Year Update (Update for serial number 97986*).

2. Thinkdiag supports 8 languages: English, French, Spanish, German, Portuguese, Italian, Japanese, Russian.

3. ECU Coding (Customize) to reflash vehicle control module software.

4. Actuation tests that allow you to test each system actuator.

5. Full OBD II and EOBD functions for full system scans.

6. 16 Maintenance Functions.

7. The full ThinkDiag software package includes over 294 diagnostic packages + over 246 car brands (please check the Thinkcar Thinkdiag Car List).

8. Thinkdiag extension cable (optional).

9. Remote diagnostics (technician side).

10. Vehicle owner community.

11. Compatible with both Android / iOS handsets and tablets. Bluetooth connection with phone; app name is: ThinkDiag+.

Notice: Buy GODIAG GT106 24V to 12V Heavy Duty Truck Converter to work with Thinkdiag. It helps convert the truck 24V K-Line communication protocol to 12V K-Line, so that the launch vehicle equipment can be used, and the launch 12V diagnostic head will not be burned.

Thinkdiag App:

1. Working app: THINKDIAG — Official app from THINKCAR Company, provides professional auto diagnosis. Not Diagzone.

2.ThinkDiag App Free Download: http://apkdown.mythinkcar.cn/apk/index.php?mod=down&code=index&pid=12&id=188

3. ThinkDiag App Car List: https://www.mythinkcar.com/coverage/checklist

If your phone is iOS, please download the "Thinkdiag" APP in the App Store.

If your phone is Android, please download the "Thinkdiag +" APP in Google Play.

WHY SHOULD YOU CHOOSE THINKDIAG

THINKDIAG is much more cost-effective compared with its counterparts like BlueDriver LSB2, OBDLink MX+, OBDLink LX Bluetooth. It has a unique feature to enjoy a super stable Bluetooth connection with professional millions of times of research and testing. You are able to watch 4 real-time data streams, whereas only 1 is allowed to be seen on other OBD2 scanners. You are able to have professional coding function (like LAUNCH X431 V+ MS906), actuation test, up to 16 maintenance functions, OBD2 all system diagnosis, auto VIN function, remote diagnose, online diagnostic report, and community interaction. Besides, special functions of 115 car brands that are specific to each car model or series mean you don't need multiple expensive special equipment.

Thinkdiag Function

 OE-LEVEL Functions Cover All Your Needs:

Component Matching: Compatible with Volkswagen / SKODA / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / KIA / Subaru, etc.

Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche, etc.

Online Account Login Service: Compatible with Volkswagen / Audi / SKODA / Seat, etc.

Online Calibration: Compatible with Volkswagen / Audi / SKODA / Seat, etc.

Online Parameterization: Compatible with Volkswagen / Audi / SKODA / Seat, etc.

Anti-theft IMMO Service: Compatible with Volkswagen / Audi / SKODA / Seat, etc.

Guided Functions: Compatible with Volkswagen / Audi / SKODA / Seat, etc.

Power Balance: Compatible with Chrysler / GM / Ford, etc.

Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru, etc.

SCN Coding for Benz.

THINKCAR THINKDIAG is an automotive diagnostic device more powerful than easydiag, which supports full systems diagnosis for the car and 16 kinds of reset functions. ThinkDiag will be a $3000-level professional scan tool. Comprehensive functions include diagnostic module, ThinkStore module, ThinkMoments module, Me module, etc.

Product Functions:

1. All Systems Full Functions Diagnosis, reading system fault codes, and clearing system fault codes.

2. Read vehicle information automatically.

3. Start communicating with ECU, scanning fault codes.

4. Read vehicle live data and present it by graph. Optional combination of multiple data.

5. Generate a diagnostic report.

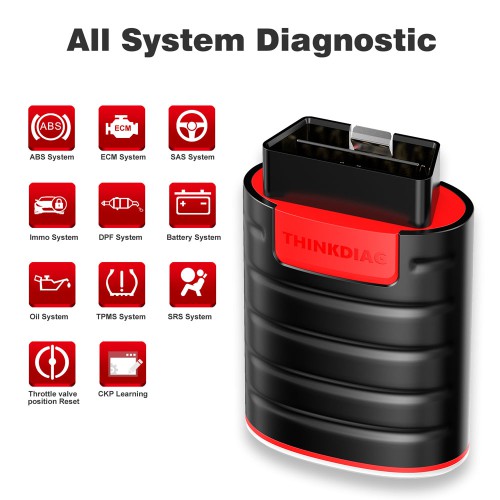

Full System Diagnosis:

Read Fault Code

Clear Fault Code

Freeze Frame

MIL Light

Full OBD Data Stream

DTC

I/M Readiness

O2 Sensor Test

Vehicle Information

Real-time Data Stream

EVAP System Test

On-board Monitoring

Thinkdiag OBD2 Scanner Reset Services:

Oil Reset: Allows you to perform a reset for a new calculation of Engine Oil Life system once the oil is changed.

EPB Reset: Important in the maintenance of electronic braking system's safety and efficiency.

BMS Reset: Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

DPF Reset: Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control unit.

SAS Reset: Helps clear the fault steering angle sensor memories and plays an important role in steering angle sensor calibration.

TPMS Reset: Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs, and testing sensors.

IMMO Reset: Mainly used to disable lost vehicle keys and program a new replacement key fob.

ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

Throttle Reset: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel-injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It needs to re-learn the throttle sensor position after clearing or repair.

Gear Learning: The scan tool monitors certain camshaft position sensor signals to determine if all conditions are met to continue with the procedure for engine running.

Injector Coding: Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

NEW Reset Function Added: AFS / EGR / Gearbox / Suspension / Sunroof Reset.

ECU Coding (Customize):

Uses the ThinkDiag App to modify the adaptive data for vehicle control modules after repairs or replacements of vehicle parts, including: Power Window | Illuminated Entry | Warning | Light Control | Slide Roof | Air Conditioner | Display | Unit Conversion | Entry & Start | PSD & PBD Operation | Seat…

Note: These special functions are NOT for all car models. If you are confused, please send your car brand, model, and release year to the seller to check it for you. For some models, the special function of "Gearbox Reset" can be found in the "Diagnostics", which is equivalent to having 16 special functions.

Active Test (Bi-directional Control):

Uses the ThinkDiag App to test if the actuator is normal, without using the vehicle's controls, to get a significant boost in effectiveness: Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock…

Other Functions of Thinkdiag:

1. Auto-detect car's VIN in 10 seconds.

2. Support printed car health report.

3. Remote Diagnosis.

4. Community support.

Thinkdiag Support Car List:

Aston Martin, Audi, Benz, BMW, Chrysler, Honda, JP-Isuzu, KIA, Land Rover, Maserati, Porsche, Renault, Rover, SAAB, Seat, Subaru, Suzuki, Toyota, USA Ford, Volvo, Citroen, Daewoo, Mitsubishi, Skoda, Hyundai, Mazda, Ferrari, Nissan, Smart, Peugeot, SGM, Fiat, Opel, Sprinter, Ssangyong, VW, GM…

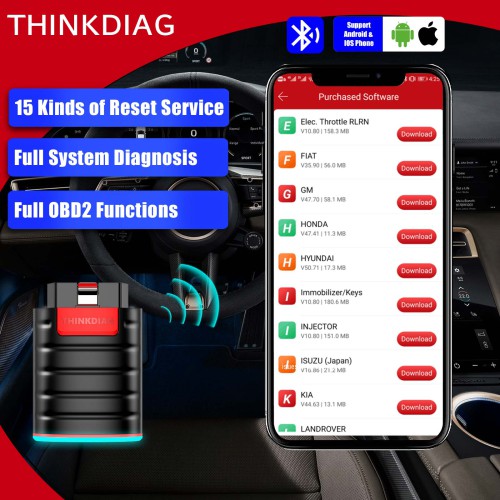

ThinkDiag OBD2 Software Display:

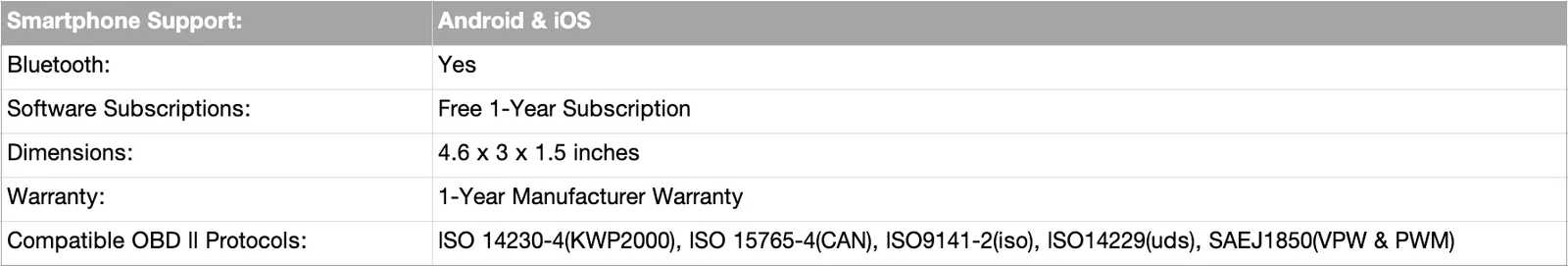

Product Specifications:

Thinkdiag FAQs:

Q1: Does ThinkDiag require an internet connection?

A1: The ThinkDiag device requires a Bluetooth connection with your smartphone. If you need to update your vehicle diagnostic software, your smartphone needs an internet connection.

Q2: Can I share my test reports with others?

A2: Yes, you can share your reports on Facebook, Twitter, or in the ThinkDiag app's community ThinkMoments.

Q3: What format are the reports saved or exported in?

A3: The reports can be exported as PDF so you can easily share or print them.

Q4: Does ThinkDiag need charging?

A4: ThinkDiag is powered directly by the vehicle's OBD II port.

Q5: Can ThinkDiag be used on more than one car?

A5: Yes, it can be used with different vehicles as long as you download the corresponding diagnostic software.

Q6: Can my ThinkDiag device connect to multiple smartphones?

A6: Yes, simply use the same account to log into a new smartphone. You can restore the previously purchased software by downloading it on the new phone.

Q7: What is a Manufacturer Software subscription?

A7: Each manufacturer software subscription gives you access to ALL diagnostic functions, including read/clear codes, live data streaming, actuation tests, and ALL maintenance functions of the manufacturer you picked.

Q8: What are the requirements on Android and iOS version?

A8: It is recommended to use Thinkdiag software on Android 5.0 and above, iOS 9.0 and above.

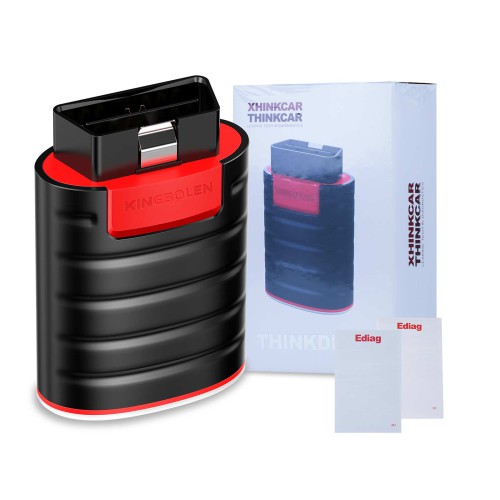

Package Includes:

1pc × Thinkdiag OBD2 unit

1pc × User Manual
