Xhorse XDNPM3GL MQB48 Solder-Free Adapter 13 Full Set Adapters No Disassembly No Soldering Work with Multi-PROG, Key Tool Plus, VVDI Prog

Product Description

Xhorse XDNPM3GL MQB48 Solder-Free Adapter 13pcs Full Set.

No soldering, no lifting pin, no cutting wire.

Work with Muti-PROG, VVDI PROG, Key Tool Plus.

Xhorse XDNPM3GL MQB48 Solder-Free Adapter 13 Full Set Adapters

By adopting probe reading technology, we design and develop multiple adapters, which are easy to cope with different dashboard circuit structures.

The adapters support a large number of vehicle models and can be used in conjunction with Multi-PROG/ VVDI PROG/ KEY TOOL PLUS , making Volkswagen matching completely effortless.

When reading VW MQB dashboard immo data, particularly BGA D70F3532/D70F3535/D70F3536/D70F3537, locksmiths may suffer from the complex operation and high risk of damage.

The adapters are specially designed to provide an easier and safer solution. With the MQB48 solderless adapters, you only need to connect the adapter to the board with reference to the positioning points shown in the connection diagram and then apply the clips. After such simple and safe operations, you can easily read and calculate the anti-theft data.

Product Features:

1. No soldering, no lifting pin, no cutting wire

2. Do not destroy the original instrument, easy to read data, safer to use.

3. Easy to read data, more secure to use

4. Can be used with Muti-PROG, VVDI PROG, Key Tool Plus.

Notice:

1. VVDI Prog and Key Tool Plus need to activate MQB48 license separately. Multi-prog has built-in MQB48 license (bind with vvdi2 full to enable it for free).

2. To read MQB NEC35XX immo chip data with xhorse, you need to connect 12V power on MQB adapters (except XNDP82/XNDP84).

3. Work with VVDI Prog you may need to use with xhorse XDPGSOGL DB25 DB15 Connect Cable.

Xhorse XDNPM3GL MQB48 Solder-Free Adapter 13 Full Set Adapters:

XDNP75 supported type:

D70F3525(A2C81589600)

D70F3526(A2C81589700)

XDNP77 supported type:

D70F3525(A2C81589600)

XDNP78 supported type:

D70F3525(A2C81589600)

XDNP79 supported type:

D70F3526(A2C81589700)

XDNP80 supported type:

D70F3526(A2C81589700)

XDNP81 supported type:

D70F3525(A2C81589600)

D70F3526(A2C81589700)

XDNP82 supported type:

D70F3529

XDNP83 supported type:

D70F3532(A2C81589500)

XDNP84 supported type:

D70F3532(A2C81589500)

XDNP85 supported type:

D70F3537(A2C81589800)

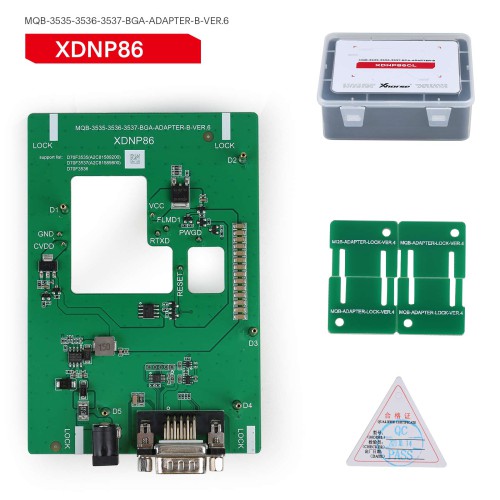

XDNP86 supported type:

D70F3535(A2C81589200)

D70F3537(A2C81589800)

D70F3536

XDNP74 supported type:

D70F3524(A2C00889000)

D70F3526(A2C81589700)

D70F3525(A2C81589600)

XDNP87 supported type:

D70F3524(A2C00889000)

Package Includes:

13pcs x Xhorse MQB48 adapters XDNPM3GL
