EU ShipFree ShippingGODIAG BCP U KEY BDC2 BDC3 14-in-1 Adapter Kit

GODIAG BCP U KEY BDC2 BDC3 14-in-1 Adapter Kit

The GODIAG BCP U KEY BDC2 BDC3 14-in-1 Adapter Kit is designed for professional automotive locksmiths working on BMW BDC2/BDC3/U-Chassis keys, VW/Audi 5C/5D keys, Porsche keys, and Rolls-Royce encrypted keys.

It supports standard key and encrypted key reading/writing with compatible key programming tablets such as Xhorse Key Tool Plus, Autel IM608, KD-MAX, and KYDZ.

Key Points

1. 14-in-1 Professional Key Adapter Set

One kit covers multiple key types, including:

1) BMW BDC2 / BDC3 LCD keys

2) BMW BDC2 / BDC3 knife-style rectangular chip keys

3) BMW U-Chassis / BCP U keys

4) VW 5C / 5D keys

5) Audi A3 5D / New Audi 5D keys

6) Porsche keys

7) Rolls-Royce encrypted keys

2. Supports Encrypted Key Reading & Writing

This adapter kit supports reading and writing for standard keys and encrypted keys, helping locksmiths handle advanced key programming and matching jobs more efficiently.

3. Compatible with Multiple Key Programming Devices

Supported devices include:

1) Xhorse VVDI Key Tool Plus

2) Autel IM608 / IM608 Pro series

3) KD-MAX tablet

4) CGDI K2 Programmer

5) KYDZ tablet

Method for Reading Data from Encrypted/Punched Chips Using the Autel IM608

Note: Actual function support depends on the software capability of the connected device and the specific vehicle/key type.

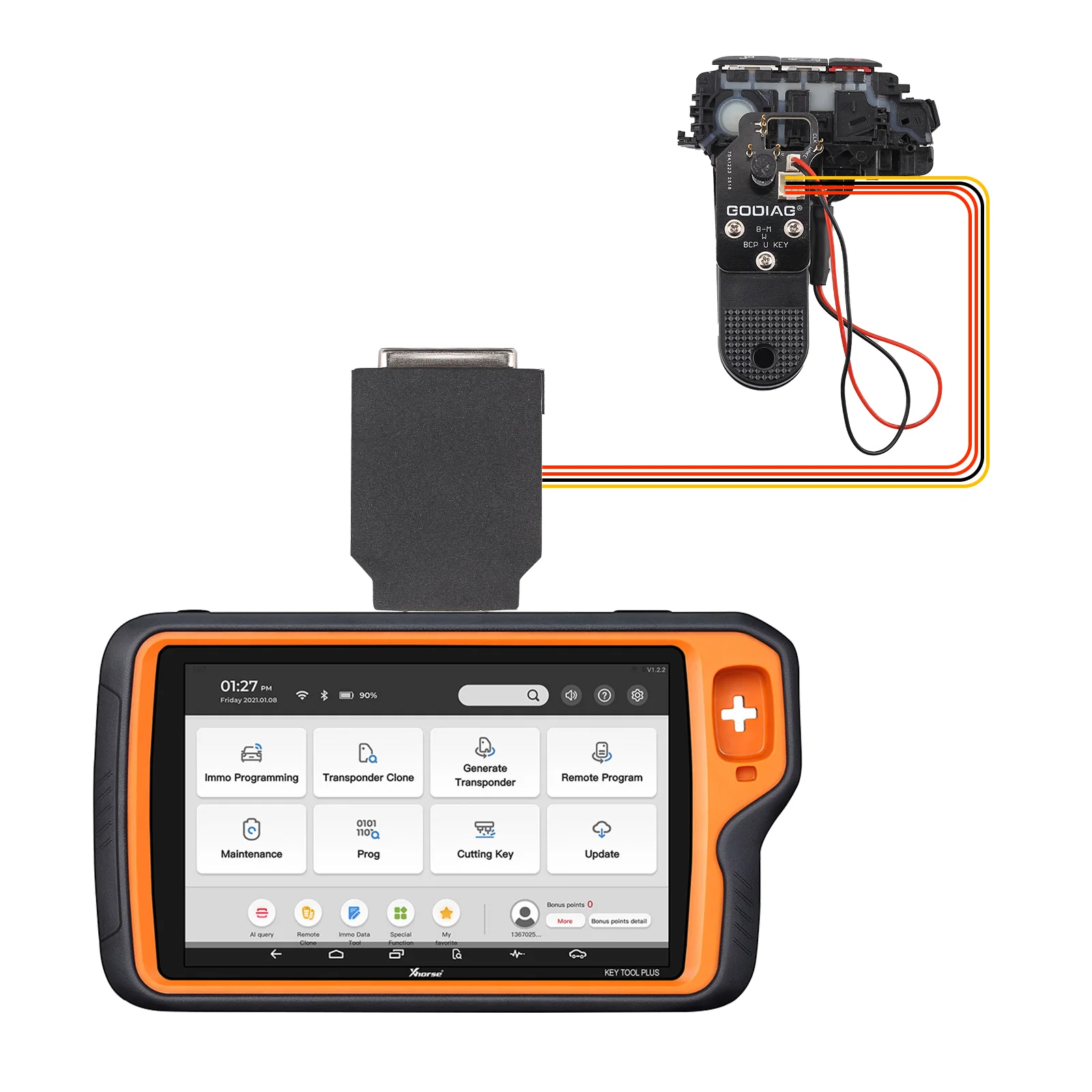

4. BCP U Key Reading/Writing via Hole Positioning – The kit supports BCP U key reading and writing through the hole positioning method, improving operation accuracy and reducing unnecessary soldering risk in supported applications.

Compatible with Autel IM608 / IM608 Pro series.

Compatible with key tool plus

5. Flexible Connection Methods

The kit provides two working methods:

1) DIY quick connector method – Supports different devices, but requires users to wire by themselves.

2) Silicone ribbon cable soldering method – Suitable for extended key/chip development and future factory-supported applications.

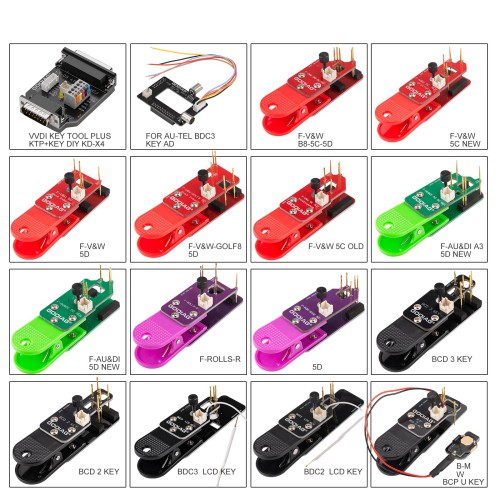

Supported 14 Key Adapters

Important Notes

1) This product is an adapter kit only. Key programmer tablet is not included.

2) It must be used with a compatible device such as Key Tool Plus, Autel IM608, KD-MAX, or KYDZ.

3) Some functions may require device software support, valid authorization, online calculation, or specific operating procedures.

4) DIY quick connector use requires the customer to perform wiring manually.

5) For encrypted keys, always confirm the key type and supported procedure before operation.

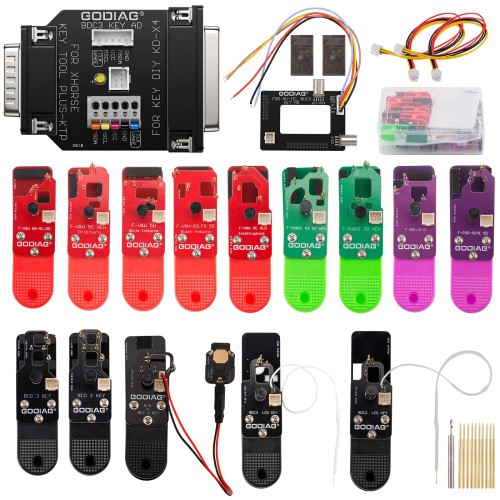

Package Includes:

1pc × BMW BDC2 LCD Key Adapter

1pc × BMW BDC3 LCD Key Adapter

1pc × BMW BDC2 Rectangular Chip Knife Key Adapter

1pc × BMW BDC3 Rectangular Chip Knife Key Adapter

1pc × BMW U Key / U-Chassis Key Adapter

1pc × Porsche Key Adapter

1pc × Audi A3 5D Key Adapter

1pc × New Audi 5D Key Adapter

1pc × Rolls-Royce Key Adapter

1pc × VW B8 5C Key Adapter

1pc × VW Old 5C Smart Key Adapter

1pc × VW New 5C Ordinary Key Adapter

1pc × VW 5D Golf 8 White Coil Key Adapter

1pc × VW 5D Golf 8 Black Coil Key Adapter

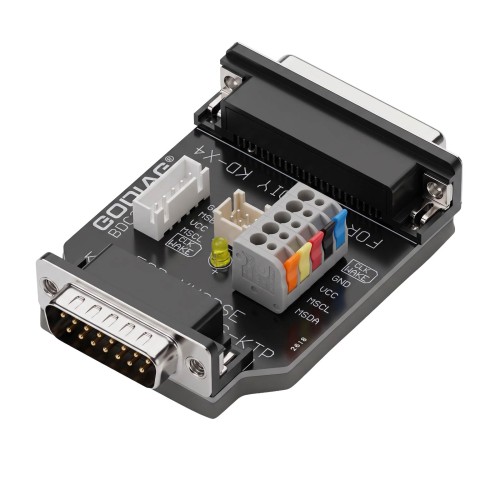

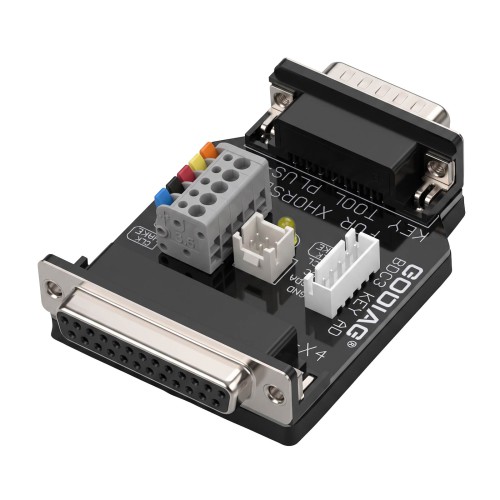

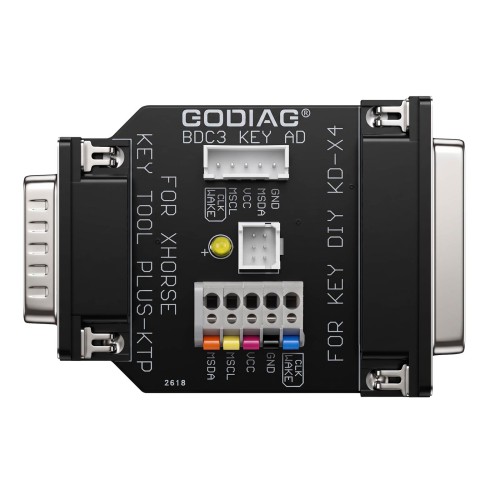

1pc × Multi-adapter board

5pcs × Connecting cables

FAQ

Q1: Is this a key programmer?

No. This is an adapter kit only. It must be used with a compatible key programming device such as Xhorse Key Tool Plus, Autel IM608, KD-MAX or KYDZ.

Q2: Does it support BMW BDC2 and BDC3 keys?

Yes. The kit includes adapters for BMW BDC2 LCD keys, BDC3 LCD keys, BDC2 rectangular chip knife keys and BDC3 rectangular chip knife keys.

Q3: Does it support VW 5C and 5D keys?

Yes. It supports several VW 5C and 5D key types, including VW B8 5C, old 5C smart key, new 5C ordinary key, and Golf 8 5D keys with white or black coil.

Q4: Can it read and write encrypted keys?

Yes. The kit supports reading and writing of encrypted keys for supported key types. Final operation depends on the connected device software and vehicle/key type.

Q5: Is soldering required?

It supports multiple connection methods. Some operations can use the positioning/adapter method, while the silicone ribbon cable method may require soldering depending on the key or chip application.

Q6: Does it work with Autel IM608?

Yes, it supports Autel IM608 series devices. However, actual available functions depend on Autel software support and the specific key type.

Q7: Does the package include Key Tool Plus or IM608?

No. The package includes only the 14 key adapters, multi-adapter board and connecting cables.
